Mahr Digimar 817 CLM User Manual

138
Mahr GmbH • Digimar 817 CLM
MENU
Print
Connect a printer with an USB connection to the the
USB A port on the height measuring instrument.
MENU
13. Data and printer
14. Advanced settings
5. Enter password
6. Correction tables
7. Clear functions menu
3. Customer corrections*
4. MK height correction
5. Print correction tab

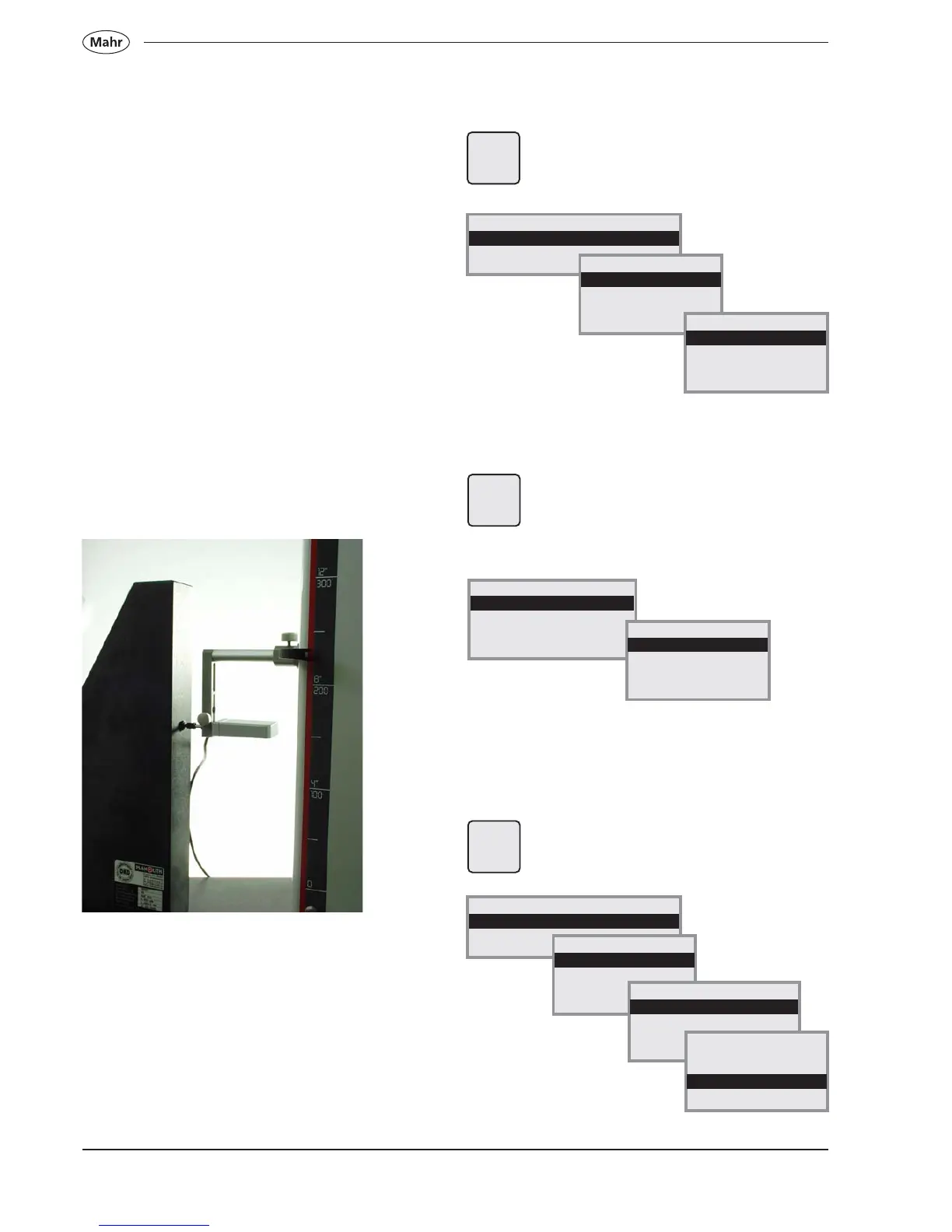

10.4.2 Perpendicularity error correction
Select a measuring instrument
In order to correction the perpendicularity error an
incremental probe P1514 H (Input 2) muss be used. An
ideal testing standard is an granite master square.
MENU
11. Quick-Mode
12. Perpendicularity
13. Data and printer
1. Input 1 (Opto-RS232)
2. Input 2 (P1514 H)
Settings
13. Data and printer
14. Advanced settings
5. Enter password
6. Correction tables
7. Clear functions menu
2. Factory - corrections
3. Customer corrections*
4. MK height correction
Customer- corrections
Corr. Z-axis only
Corr. Perpend. only
Perpend. + Z-axis
.
