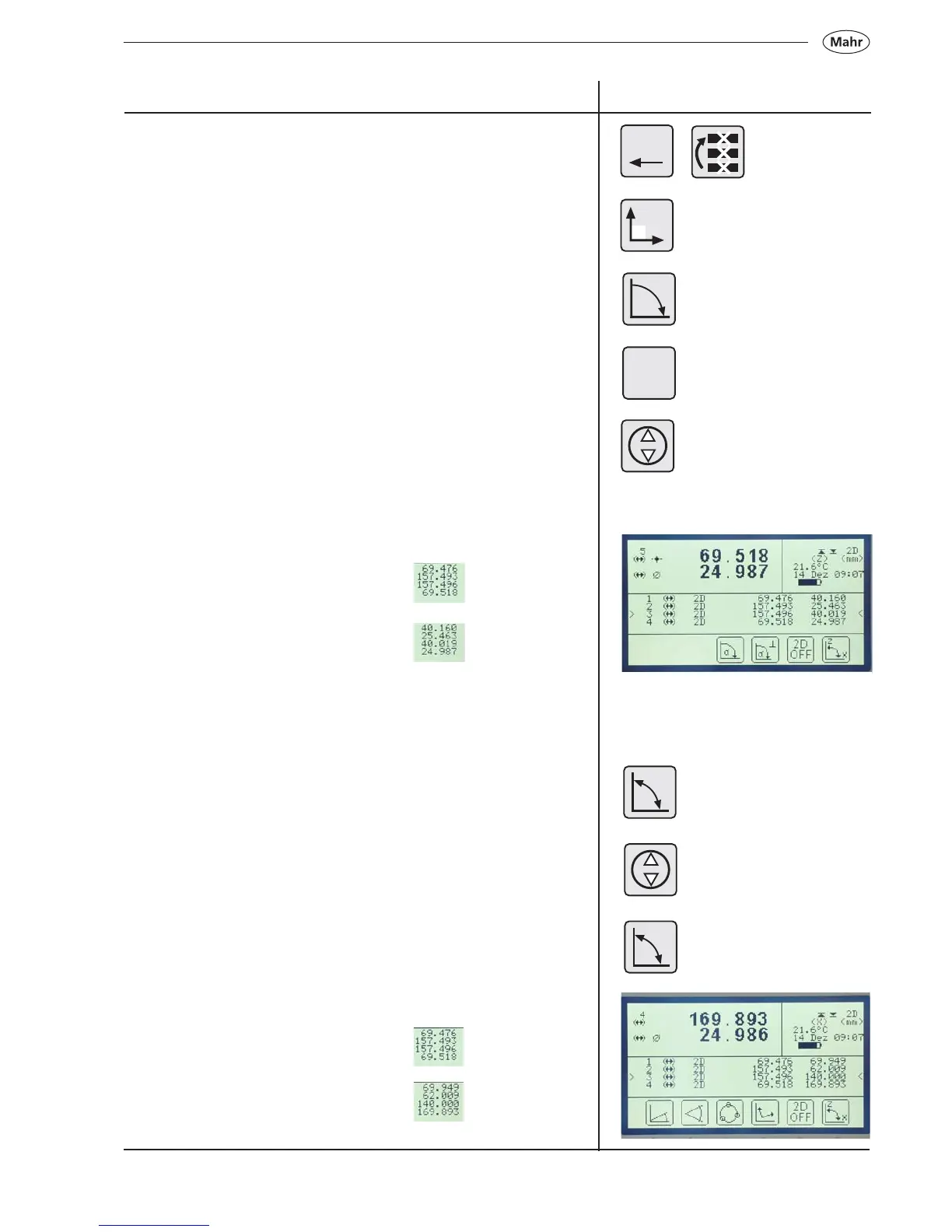

Mahr Digimar 817 CLM User Manual

67
Mahr GmbH • Digimar 817 CLM
In the display appears
the Z value and
the diameter
– Tilt the workpiece
(The workpiece will be arithmetically aligned at 90°)
– Measure bores 1 – 4 in exactly the same sequence as with the
X-axis
– Tilt the workpiece back into the original position
In the display appears
the Z value and
the X value
Description / Sequence Symbols / Pictures
z
x
z
x
– Press „CE“ to delete all data
– Press the 2D key
– Or manually enter the tilting angle (standard is 90°)
– Active 2D ON
– Measure bores 1-4 in the Z-axis
CE
2D
a
2D
ON
