MAN B&W 5.07
Page 1 of 1
MAN Diesel
MAN B&W S50ME-B9
199 01 61-5.0

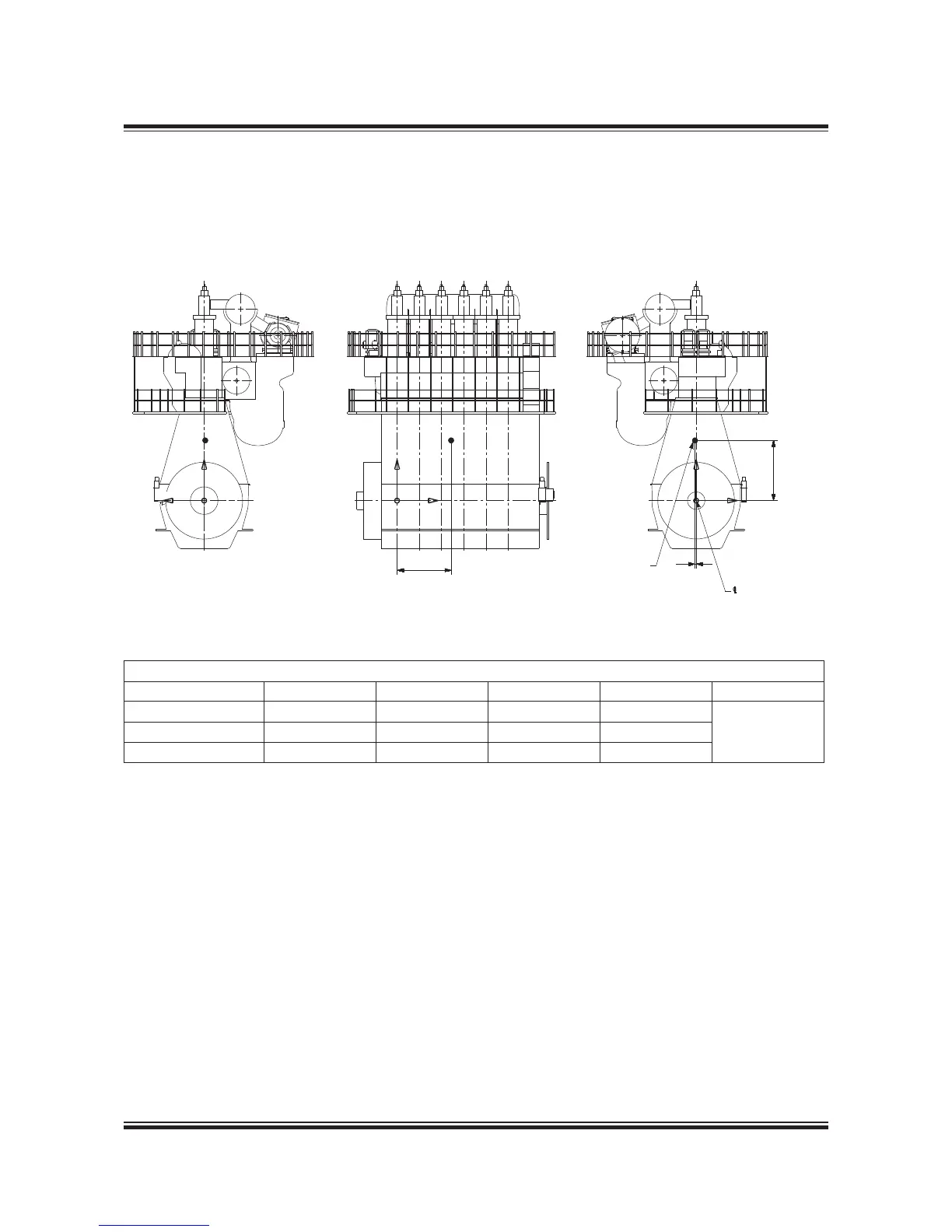

Fig. 5.07: Centre of gravity, turbocharger located on exhaust side of engine
178 68 08-6.0
Center of Gravity
Crankshaft
X
X
Z
Z
Z
Viewed from Aft Fore Aft Viewed from Fore
Y
Y
Z
X
Centre of Gravity
For engines with two turbochargers*
No. of cylinders 5 6 7 8 9
Distance X mm 5 10 15 25
Available on re-
quest
Distance Y mm 1,925 2,425 2,875 3,325
Distance Z mm 2,275 2,325 2,350 2,375
All values stated are approximate
* Data for engines with a different number of turbochargers is available on request.
** Dry mass tonnes
525 79 29-3.0.0
