Man B&W S50ME-B9.3-TII User Manual

MAN B&W 12.03
Page 1 of 1
MAN Diesel
MAN B&W S50MC/MC-C, S50MEC/-GI, S50MEB, G50/45/40ME-B9,
S46MC-C, S46ME-B, S42MC, S40MC-C9, S40ME-B, S35MC-C9, S/
L35MC, S35ME-B, S30ME-B9, S26MC
198 39 788.7
Cooling Water Pipes
Scavenge
air cooler
AS
AS
P
N
TI 8422
TI 8423
TE 8422 I
PI 8421
PT 8421 I AL
TE 8423 I
178 50 387.1

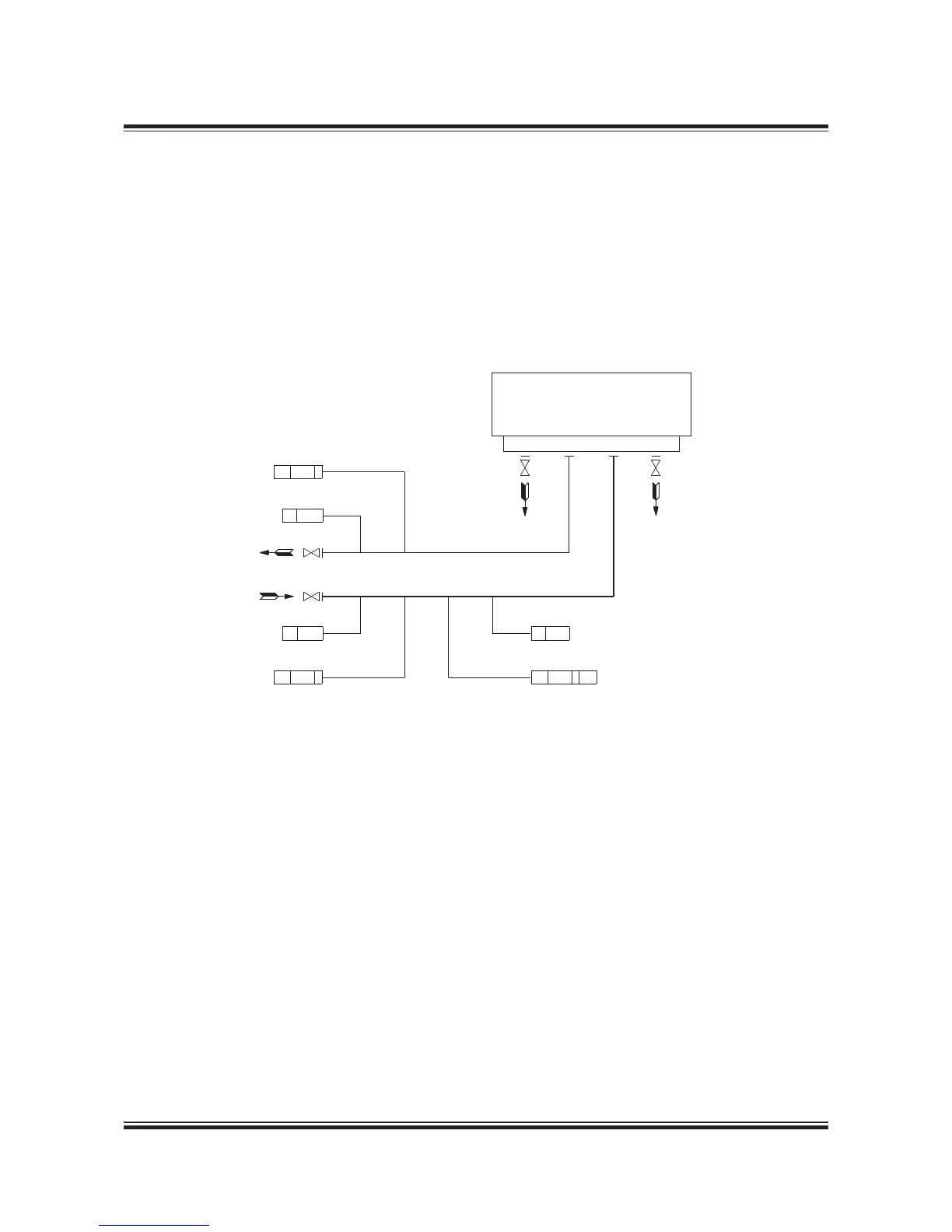

Fig. 12.03.01: Cooling water pipes for engines with one turbocharger
The letters refer to list of ‘Counterflanges’
The item No. refer to ‘Guidance values automation’

Man B&W S50ME-B9.3-TII Specifications
