Man B&W S50ME-B9.3-TII - Rofile of Engine Seating, End Chocks, Option: 4 82 620; Profile of Engine Seating, End Chocks, Option: 4 82 610

MAN B&W 5.12
Page 3 of 3
MAN Diesel
198 77 28-3.0MAN B&W S50ME-B9
Side chock brackets, option: 4 82 622 includes:
1. Side chock brackets
Side chock liners, option: 4 82 620 includes:
2. Liner for side chock
3. Lock plate
4 . W a s h e r
5. Hexagon socket set screw
End chock bolts, option: 4 82 610 includes:
1. Stud for end chock bolt
2. Round nut
3. Round nut
4. Spherical washer
5. Spherical washer
6. Protecting cap
End chock liner, option: 4 82 612 includes:
7. Liner for end chock
End chock brackets, option: 4 82 614 includes:
8. End chock bracket

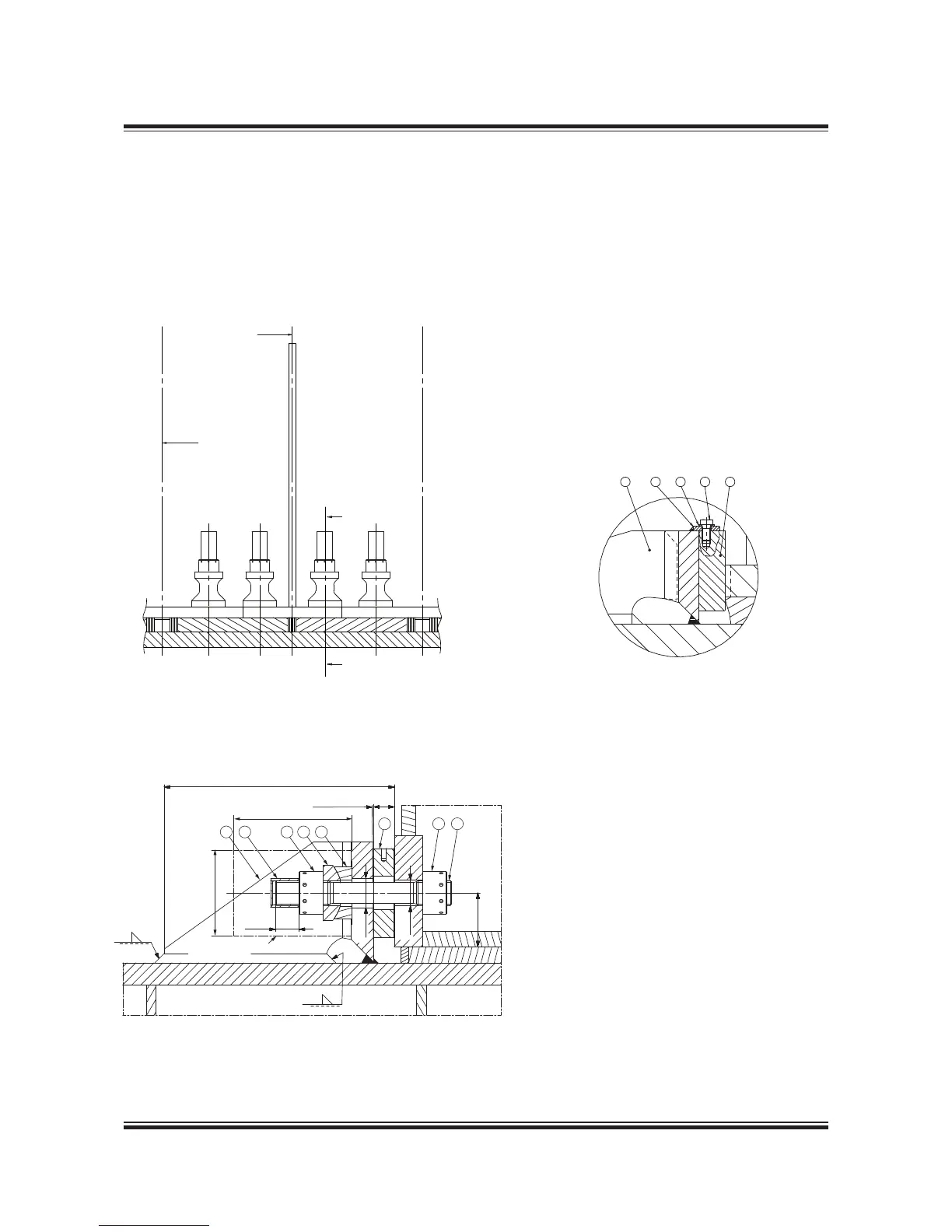

Fig. 5.12.02b: Profile of engine seating, end chocks, option: 4 82 620
Fig. 5.12.02c: Profile of engine seating, end chocks, option: 4 82 610
079 40 88-6.2.0b
079 29 22-7.2.0
Taper 1:100
about 350
about ø190
65
575
15
15
125
ø66
ø72
Space for hydraulic
tightening jack
8 6 3 5 4
2
7
1
75 +5
0
Centreline
cylinder
Middle of
main bearing
Section B-B
A
A
2
4
5
31
Detail D1
