MAN B&W 19.09
Page 1 of 2
MAN Diesel
MAN B&W S50ME-B9
198 78 32-4.1
Large spare parts, dimensions and masses
Pos Sec. Description
Mass Dimensions (mm)
(kg) A B C D E
1 Cylinder liner, incl. cooling jacket 2,076 740 2,413 555
2 Exhaust valve 440 1,310 665 494
3 Piston complete, with piston rod 342 ø500 349 188 3,064 300
4 Cylinder cover, incl. valves 1,100 938 419

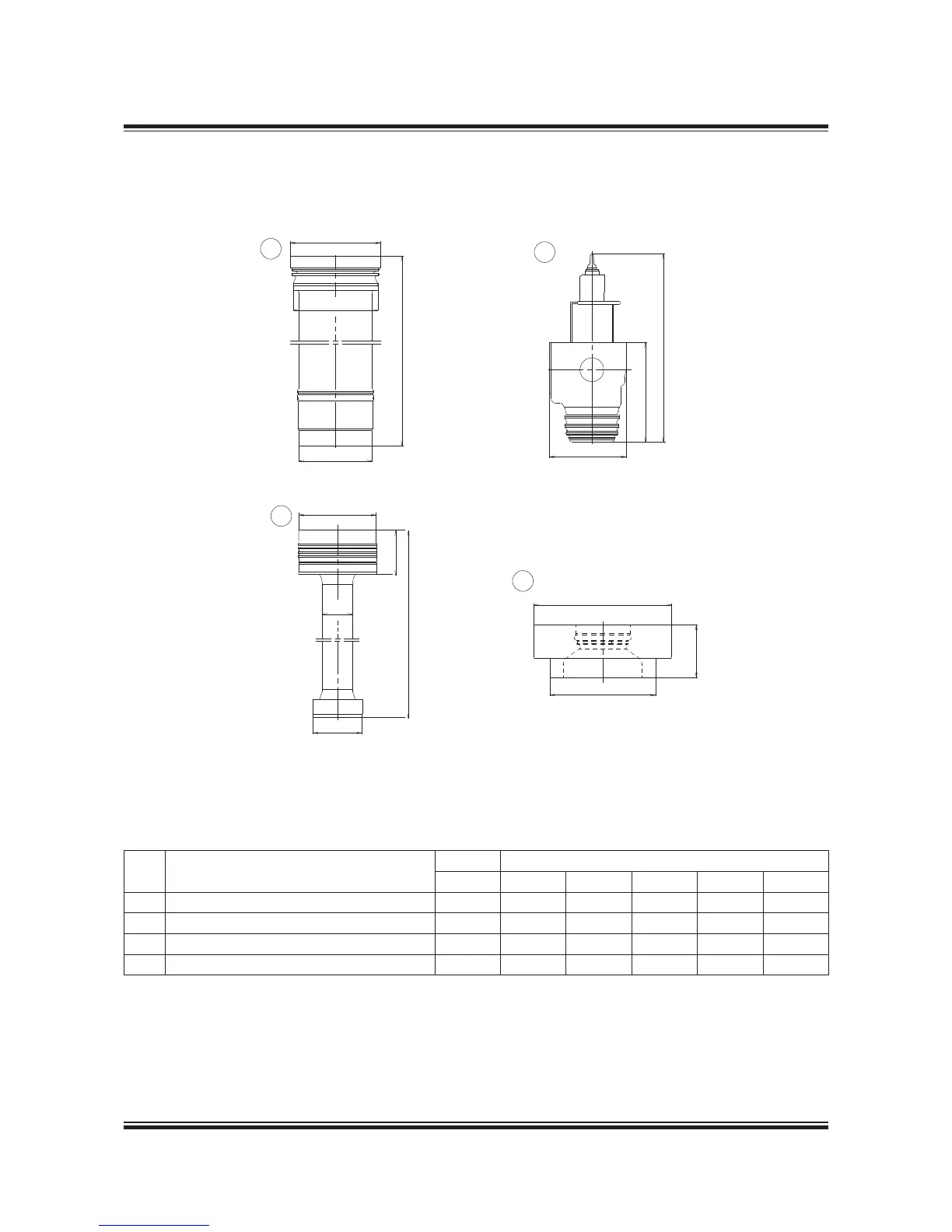

Fig. 19.09.01: Large spare parts, dimensions and masses
178 51 59-7.3
E
A
B
C
D
A
B
C
A
C
D
A
B
C
B
1
2
3
4
