MAN B&W 8.03
Page 1 of 2
MAN Diesel
MAN B&W MC/MCC, ME/MEC/ME-B/GI engines,
Engine Selection Guide
198 42 328.5

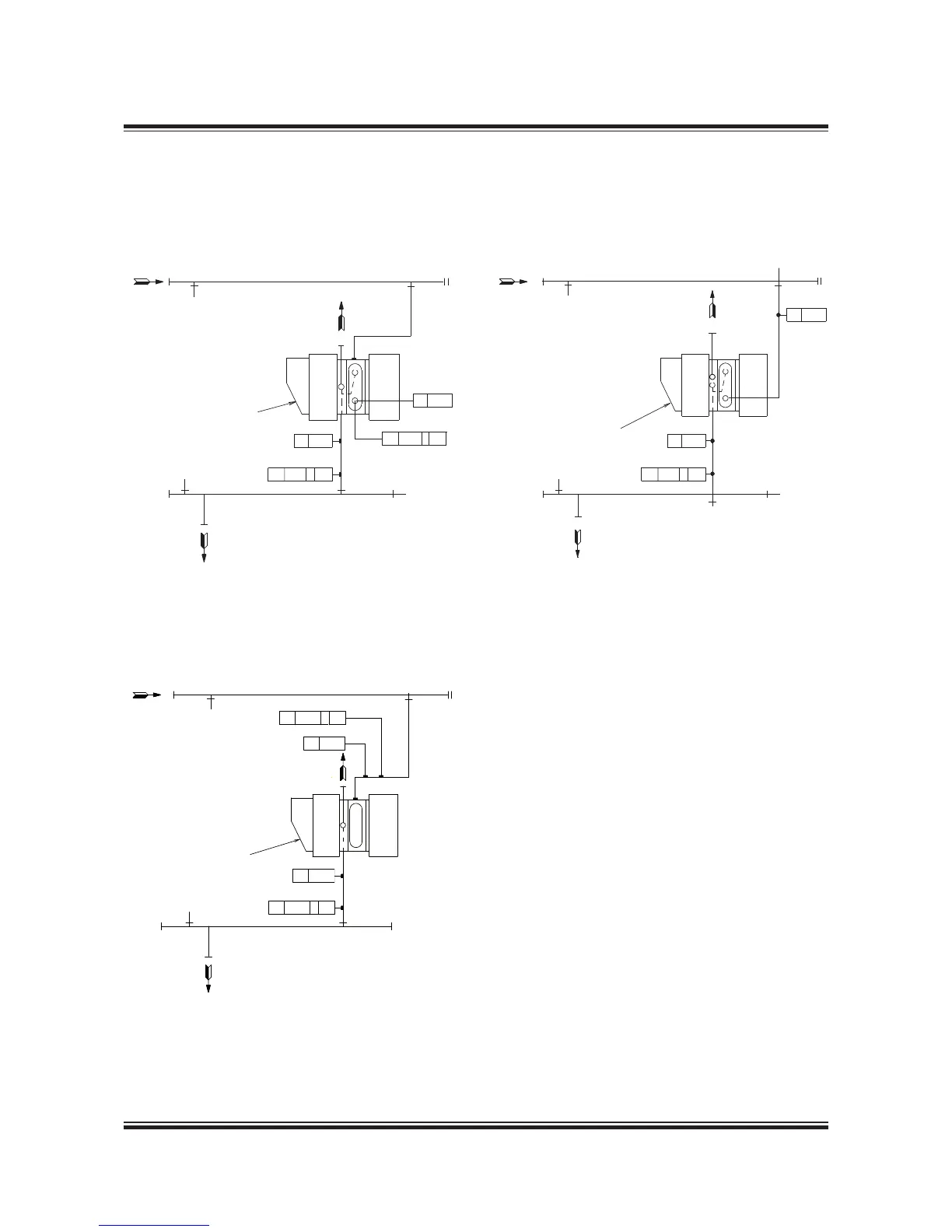

Lubricating Oil Pipes for Turbochargers
From system oil
MAN TCA
turbocharger
AB
TE 8117 I AH
TI 8117
PI 8103
PT 8103 I AL
E
Fig. 8.03.01: MAN turbocharger type TCA
121 14 96-6.1.2
From system oil
MET turbocharger
AB
E
TE 8117 I AH
TI 8117
PI 8103
Fig. 8.03.03: Mitsubishi turbocharger type MET
Fig. 8.03.03: ABB turbocharger type A100L
126 40 87-1.2.0
524 26 81-4.0.0
AB
E
PI 8103
PT 8103 I AL
TE 8117 I AH
TI 8117
From system oil
ABB A100L
Turbocharger
