Man B&W S50ME-B9.3-TII - Page 177

MAN B&W 8.03
Page 2 of 2
MAN Diesel
MAN B&W MC/MCC, ME/MEC/ME-B/GI engines,
Engine Selection Guide
198 42 328.5

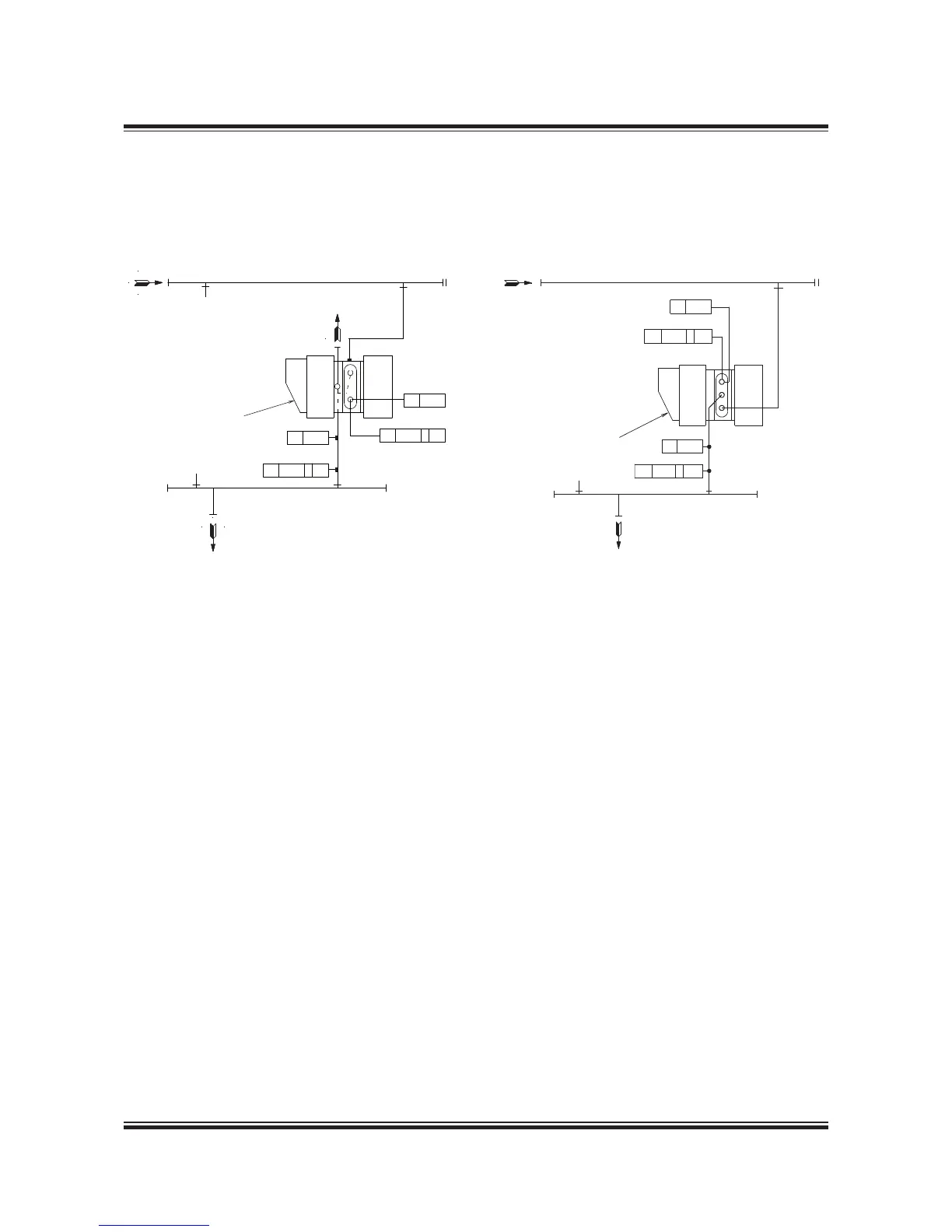

Fig. 8.03.02: ABB turbocharger type TPL85B14-16 /
TPL 91B12
Fig. 8.03.02: ABB turbocharger type TPL65B12 -
TPL85B12
515 85 30-3.1.0 126 40 85-8.3.0
AB
E
PI 8103
PT 8103 I AL
TE 8117 I AH
TI 8117
From system oil
ABB TPL
turbocharger
From system oil
ABB TPL
turbocharger
AB
TE 8117 I AH
TI 8117
PI 8103
PT 8103 I AL
