MAN B&W 19.09
Page 2 of 2
MAN Diesel
MAN B&W engines
199 01 89-2.0

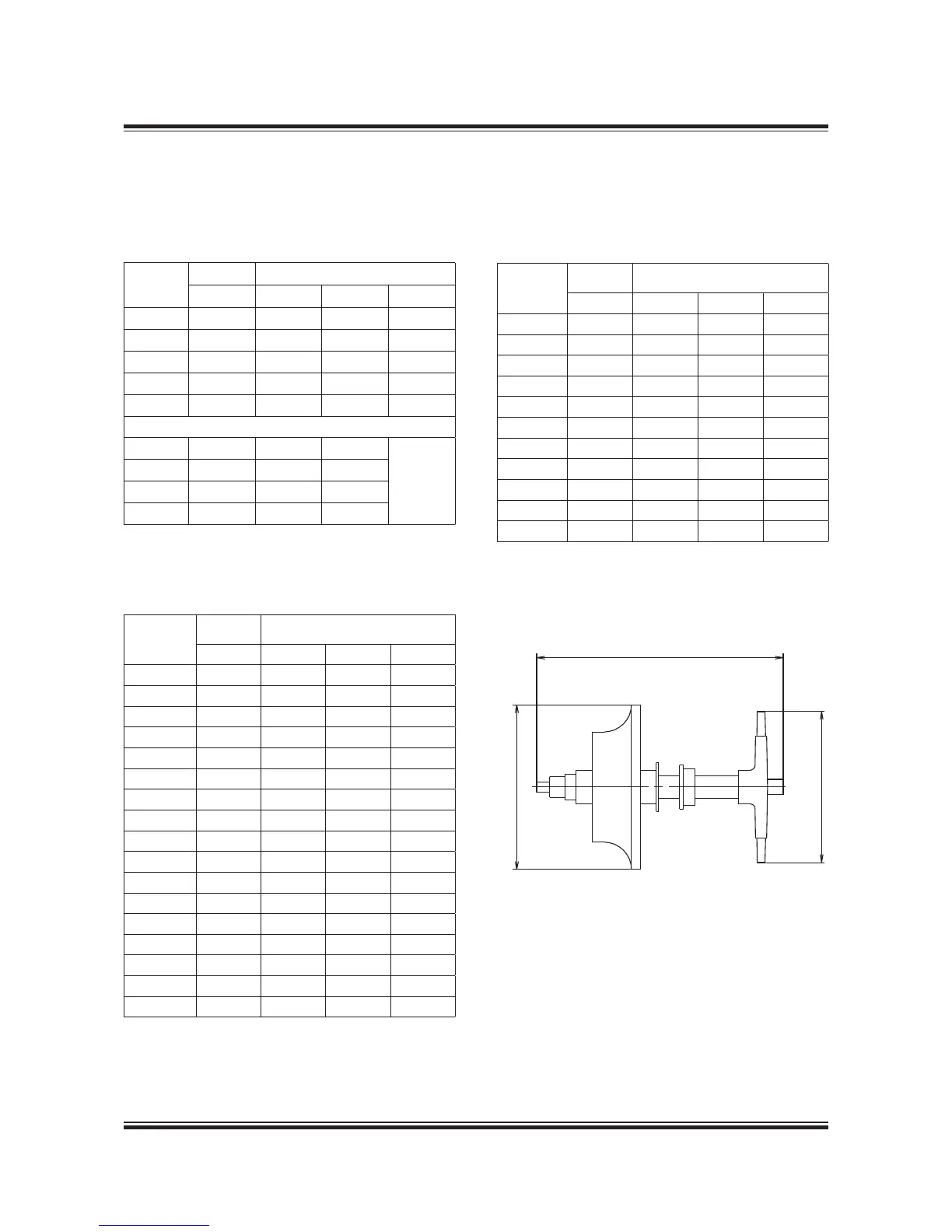

Fig. 19.09.02: Large spare parts, dimensions and masses
Rotor for turbocharger
MAN
Type
Max Mass Dimensions (mm)
kg. A (ø) B C (ø)
TCA44 90 480 880 460
TCA55 140 570 990 515
TCA66 230 670 1,200 670
TCA77 390 800 1,380 730
TCA88 760 940 1,640 980
TCR18 22 280 469
TCR20 39 337 566
TCR21 87 440 739
TCR22 87 440 739
561 70 21-6.0.0
ABB
Type
Max
Mass
Dimensions (mm)
kg. A (ø) B C (ø)
A165-L 90 500 940 395
A170-L 130 580 1,080 455
A175-L 220 700 1,300 550
A180-L 330 790 1,470 620
A185-L 460 880 1,640 690
A190-L 610 970 1,810 760
A265-L 100 500 930 395
A270-L 140 580 1,090 455
A275-L 240 700 1,320 550
A280-L 350 790 1,490 620
A285-L 490 880 1,660 690
561 66 78-9.0.0
MHI
Type
Max
Mass
Dimensions (mm)
kg. A (ø) B C (ø)
MET33MA 45 373 662 364
MET33MB 55 373 692 364
MET42MA 68.5 462 807 451
MET42MB 85 462 847 451
MET48MB 155 524 954 511
MET53MA 190 586 1,035 571
MET53MB 210 586 1,068 571
MET60MA 240 652 1,188 636
MET60MB 270 652 1,185 636
MET66MA 330 730 1,271 712
MET66MB 370 730 1,327 712
MET71MA 400 790 1,318 771
MET71MB 480 790 1,410 771
MET83MA 600 924 1,555 902
MET83MB 750 924 1,608 902
MET90MA 850 1,020 1,723 996
MET90MB 950 1,020 1,794 996
561 68 37-2.1.0
A
B
C
178 68 17-0.0
