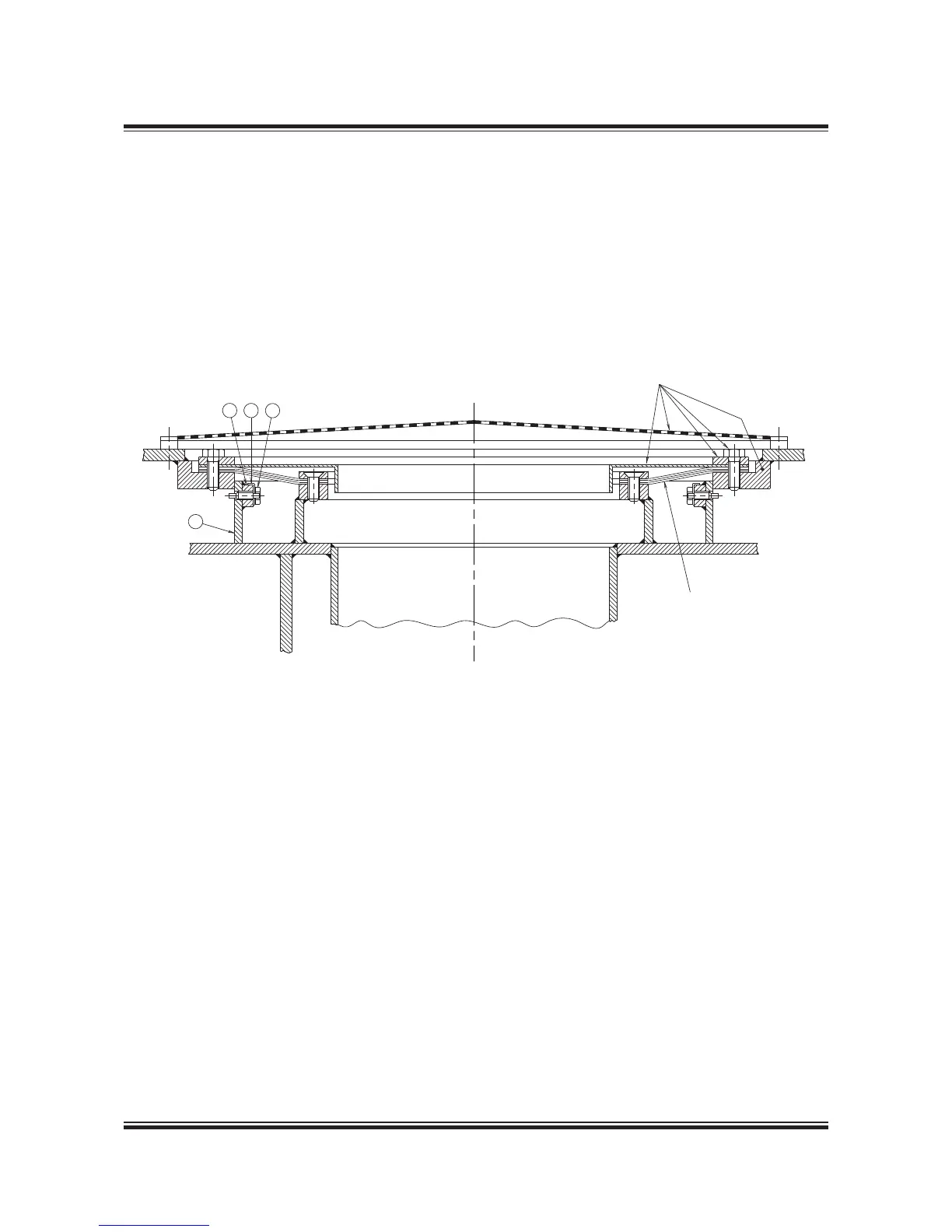

Fig. 8.05.02: Lubricating oil outlet
178 07 416.1
Lubricating oil outlet
A protecting ring position 14 is to be installed if
required, by class rules, and is placed loose on
the tanktop and guided by the hole in the flange.
In the vertical direction it is secured by means of
screw position 4, in order to prevent wear of the
rubber plate.
Engine builder’s supply
2
3
4
1
Oil and temperature resistant
rubber (3 layers), yard’s supply
