MAN B&W 5.03
Page 1 of 3
MAN Diesel
MAN B&W S50MC-C8.2, S50ME-B9/8.3/.2, MAN Diesel
S50ME-C8.2/-GI-Tll
198 87 41-8.1
Mitsubishi
Units MET42 MET53 MET60 MET66 MET71
W
kg 1,000 1,000 1,000 1,500 1,800
HB
mm 1,500 1,500 1,600 1,800 1,800
b
m 600 700 700 800 800
Crane beam for overhaul of turbocharger
For the overhaul of a turbocharger, a crane beam
with trolleys is required at each end of the turbo-
charger.
Two trolleys are to be available at the compressor
end and one trolley is needed at the gas inlet end.
Crane beam no. 1 is for dismantling of turbo-
charger components.
Crane beam no. 2 is for transporting turbocharger
components.
See Figs. 5.03.01a and 5.03.02.
The crane beams can be omitted if the main en-
gine room crane also covers the turbocharger
area.
The crane beams are used and dimensioned for
lifting the following components:
Exhaust gas inlet casing
Turbocharger inlet silencer
Compressor casing
Turbine rotor with bearings
The crane beams are to be placed in relation
to the turbocharger(s) so that the components
around the gas outlet casing can be removed in
connection with overhaul of the turbocharger(s).
The crane beam can be bolted to brackets that
are fastened to the ship structure or to columns
that are located on the top platform of the engine.
The lifting capacity of the crane beam for the
heaviest component ‘W’, is indicated in Fig.
5.03.01b for the various turbocharger makes. The
crane beam shall be dimensioned for lifting the
weight ‘W’ with a deflection of some 5 mm only.
HB indicates the position of the crane hook in the
vertical plane related to the centre of the turbo-
charger. HB and b also specifies the minimum
space for dismantling.
For engines with the turbocharger(s) located on
the exhaust side, EoD No. 4 59 122, the letter ‘a
indicates the distance between vertical centre-
lines of the engine and the turbocharger.
079 43 38-0.1.0

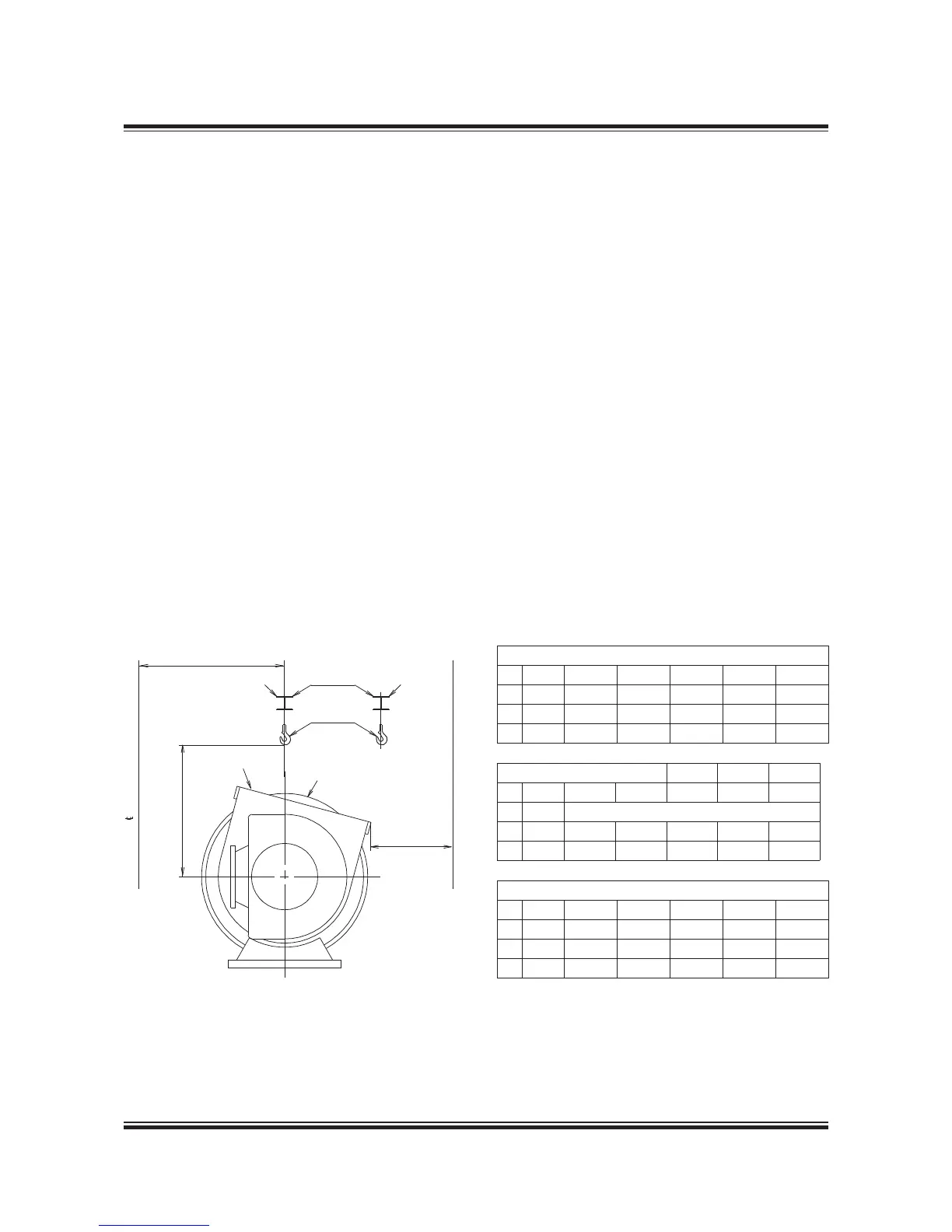

Fig. 5.03.01a: Required height and distance
Fig. 5.03.01b: Required height and distance and weight
The figures ‘a’ are stated on the ‘Engine and Gallery Outline’
drawing, Section 5.06.
Crane beam
Turbocharger
Gas outlet flange
a
HB
Main engine/aft cylinder
Crane hook
b
Engine room side
Crane beam for
dismantling of
components
Crane beam for
transportation of
components
*) Available on request. Data on Mitsubishi MET48 is available
on request.
MAN B&W
Units TCA44 TCA55 TCA55 TCA66 TCA77
W
kg 1,000 1,000 1,000 1,200 2,000
HB
mm 1,200 1,400 1,400 1,600 1,800
b
m 500 600 600 700 800
ABB
Units A170 A175 A180 A265 A270
W
kg *)
HB
mm 1,450 1,725 1,975 1,400 1,650
b
m 500 500 600 500 500
