Man B&W S50ME-B9.3-TII

MAN Diesel 4.06
Page 1 of 3
MAN Diesel
198 82 804.0MAN B&W 80-26MC/MC-C/ME/ME-C/ME-B/-GI-TII engines
L16/24-Tll GenSet Data
Bore: 160 mm Stroke: 240 mm
Power layout
1,200 r/min 60 Hz 1,000 r/min 50 Hz
Eng. kW Gen. kW Eng. kW Gen. kW
5L16/24 500 475 450 430
6L16/24 660 625 570 542
7L16/24 770 730 665 632
8L16/24 880 835 760 722
9L16/24 990 940 855 812
No. of Cyls. A (mm) * B (mm) * C (mm) H (mm)
**Dry weight
GenSet (t)
5 (1,000 r/min) 2,751 1,400 4,151 2,457 9.5
5 (1,200 r/min) 2,751 1,400 4,151 2,457 9.5
6 (1,000 r/min) 3,026 1,490 4,516 2,457 10.5
6 (1,200 r/min) 3,026 1,490 4,516 2,457 10.5
7 (1,000 r/min) 3,501 1,585 5,086 2,457 11.4
7 (1,200 r/min) 3,501 1,585 5,086 2,495 11.4
8 (1,000 r/min) 3,776 1,680 5,456 2,495 12.4
8 (1,200 r/min) 3,776 1,680 5,456 2,495 12.4
9 (1,000 r/min) 4,051 1,680 5,731 2,495 13.1
9 (1,200 r/min) 4,051 1,680 5,731 2,495 13.1
178 23 031.0
P Free passage between the engines, width 600 mm and height 2,000 mm
Q Min. distance between engines: 1,800 mm
* Depending on alternator
** Weight incl. standard alternator (based on a Leroy Somer alternator)
All dimensions and masses are approximate and subject to change without prior notice.
178 33 874.4

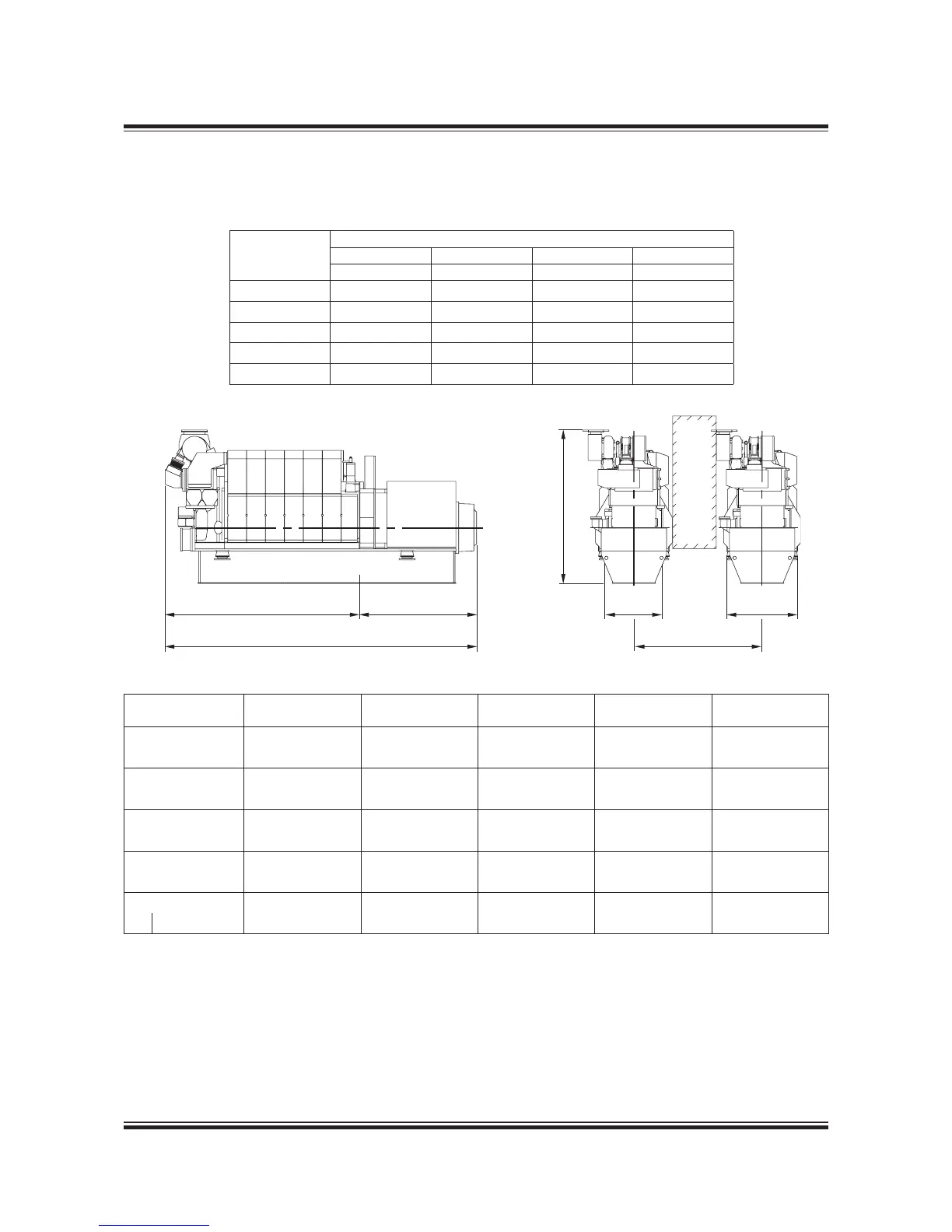

Fig. 4.06.01: Power and outline of L16/24, IMO Tier II
A
C
B
H
P
Q
830 1000
