Man B&W S50ME-B9.3-TII User Manual

PCD
L
C
A
IL
G
Dia 1
Dia 2
W
IW
D
B
F
N x diameter (O)
N x diameter (O)
D
B
A
G
C
F
IL
L
W
IW
N x diameter (O)

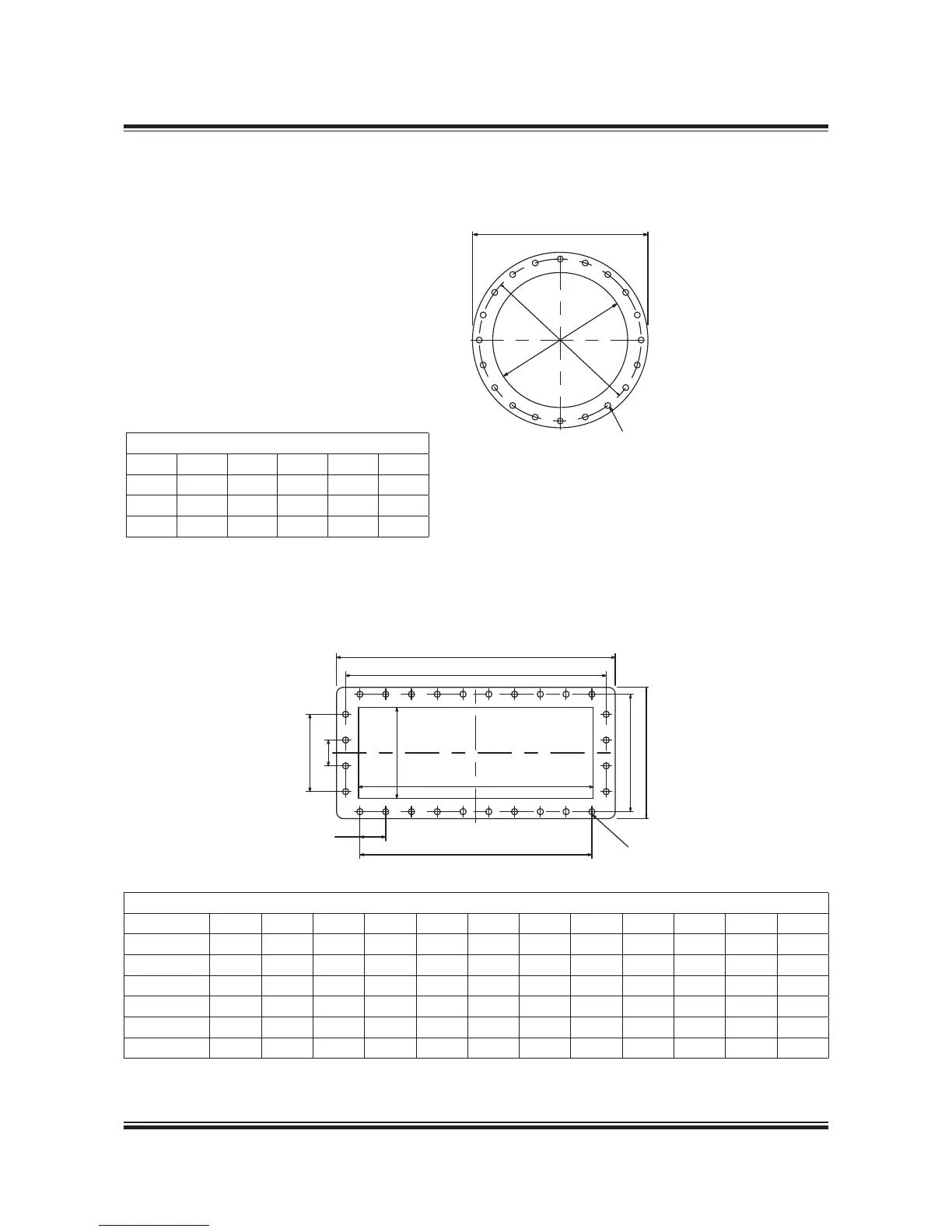

Type A100/A200-L series – Rectangular type
TC L W IL IW A B C D F G N O
A165/A265-L 1,114 562 950 404 1,050 430 900 511 86 100 32 ø22
A170/A270-L 1,280 625 1,095 466 1,210 450 1,080 568 90 120 32 ø22
A175/A275-L 1,723 770 1,319 562 1,446 510 1,260 710 170 140 28 ø30
A180/A280-L 1,743 856 1,491 634 1,650 630 1,485 786 150 135 36 ø30
A185/A285-L 1,955 958 1,663 707 1,860 725 1,595 886 145 145 36 ø30
A190/A290-L 2,100 1,050 1,834 781 2,000 750 1,760 970 150 160 36 ø30
ABB Type A100/A200-L
Counterflanges, Connection D
MAN Type TCR
Type TCR series – Round type
TC Dia 1 Dia 2 PCD N O
TCR18 425 310 395 12 ø22
TCR20 540 373 495 15 ø22
TCR22 595 434 550 16 ø22
PCD
L
C
A
IL
G
Dia 1
Dia 2
W
IW
D
B
F
N x diameter (O)
N x diameter (O)
D
B
A
G
C
F
IL
L
W
IW
N x diameter (O)
MAN B&W 5.10
Page 2 of 3
MAN Diesel
MAN B&W MC/MC-C, ME/ME-C/ME-B/-GI engines 198 66 70-0.6
501 29 91-0.13.0b
501 29 91-0.13.0a
