MHI Type MET

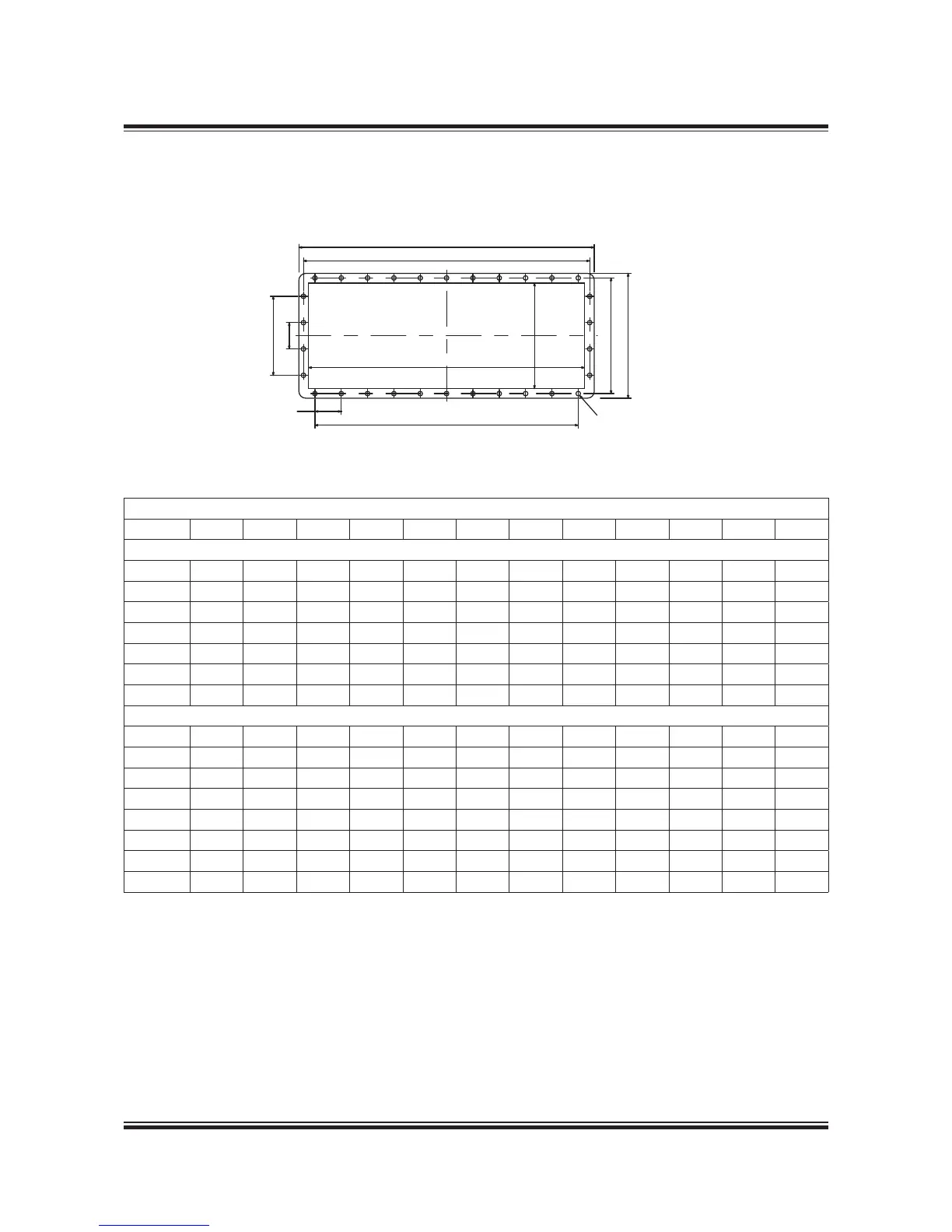

Type MET – Rectangular type
TC L W IL IW A B C D F G N O
Series MB
MET42 1,094 381 1,004 291 1,061 261 950 351 87 95 30 ø15
MET53 1,389 485 1,273 369 1,340 330 1,200 440 110 120 30 ø20
MET60 1,528 522 1,418 410 1,488 330 1,320 482 110 110 34 ø20
MET66 1,713 585 1,587 459 1,663 372 1,536 535 124 128 34 ø20
MET71 1,837 617 1,717 497 1,792 480 1,584 572 120 132 36 ø20
MET83 2,163 731 2,009 581 2,103 480 1,920 671 160 160 34 ø24
MET90 2,378 801 2,218 641 2,312 525 2,100 741 175 175 34 ø24
Series MA
MET33 700 310 605 222 670 0 550 280 130 110 18 ø15
MET42 883 365 793 275 850 240 630 335 80 90 24 ø15
MET53 1,122 465 1,006 349 1,073 300 945 420 100 105 28 ø20
MET60 1,230 500 1,120 388 1,190 315 1,050 460 105 105 30 ø20
MET66 1,380 560 1,254 434 1,330 345 1,200 510 115 120 30 ø20
MET71 1,520 600 1,400 480 1,475 345 1,265 555 115 115 34 ø20
MET83 1,740 700 1,586 550 1,680 450 1,500 640 150 150 30 ø24
MET90 1,910 755 1,750 595 1,850 480 1,650 695 160 165 30 ø24
D
B
A
G
C
F
IL
L
W
IW
N x diameter (O)
