Man B&W S50ME-B9.3-TII - Components for Engine Control System

MAN B&W 5.16
Page 1 of 3
MAN Diesel
MAN B&W ME/ME-C/ME-B/-GI TII engines 198 85 38-3.2
Components for Engine Control System
Installation of ECS in the Engine Control Room
The following items are to be installed in the ECR
(Engine Control Room):
• 2 pcs EICU (Engine Interface Control Unit)
(1 pcs only for ME-B engines)
• 1 pcs MOP A (Main Operating Panel)
EC-MOP with touch display, 15”
or
Touch display, 15”
PC unit with pointing device for MOP
• 1 pcs MOP B
EC-MOP with touch display, 15”
or
Touch display, 15”
PC unit with keyboard and pointing device
• 1 pcs PMI/CoCoS system software
Display, 19”
PC unit
• 1 pcs Printer (Yard supply)
• 1 pcs Ethernet Switch and VPN router
with firewall
The EICU functions as an interface unit to ECR
related systems such as AMS (Alarm and Monitor-
ing System), RCS (Remote Control System) and
Safety System. On ME-B engines the EICU also
controls the HPS.
MOP A and B are redundant and are the operator’s
interface to the ECS. Via both MOPs, the operator
can control and view the status of the ECS. Via the
PMI/CoCoS PC, the operator can view the status
and operating history of the ECS and the engine.
The PMI Auto-tuning application is run on a stand-
ard PC. The PMI Auto-tuning system is used to
optimize the combustion process with minimal
operator attendance and improve the efficiency of
the engine. See Section 18.02.
CoCoS-EDS ME Basic is included as part of the
standard software package installed on the PMI/
CoCoS PC. Optionally, the full version of CoCoS-
EDS may be purchased separately. See Section
18.03.
MOP A
MOP B
Printer
PMI Auto-tuning
ECS Network A
PMI/CoCoS PC
Serial from
AMS option
Net cable from
AMS option
Ship LAN
option
ECS Network B
VPN modem
Serial
LAN WAN
Switch
+24V
To Internet
option
# # #
#

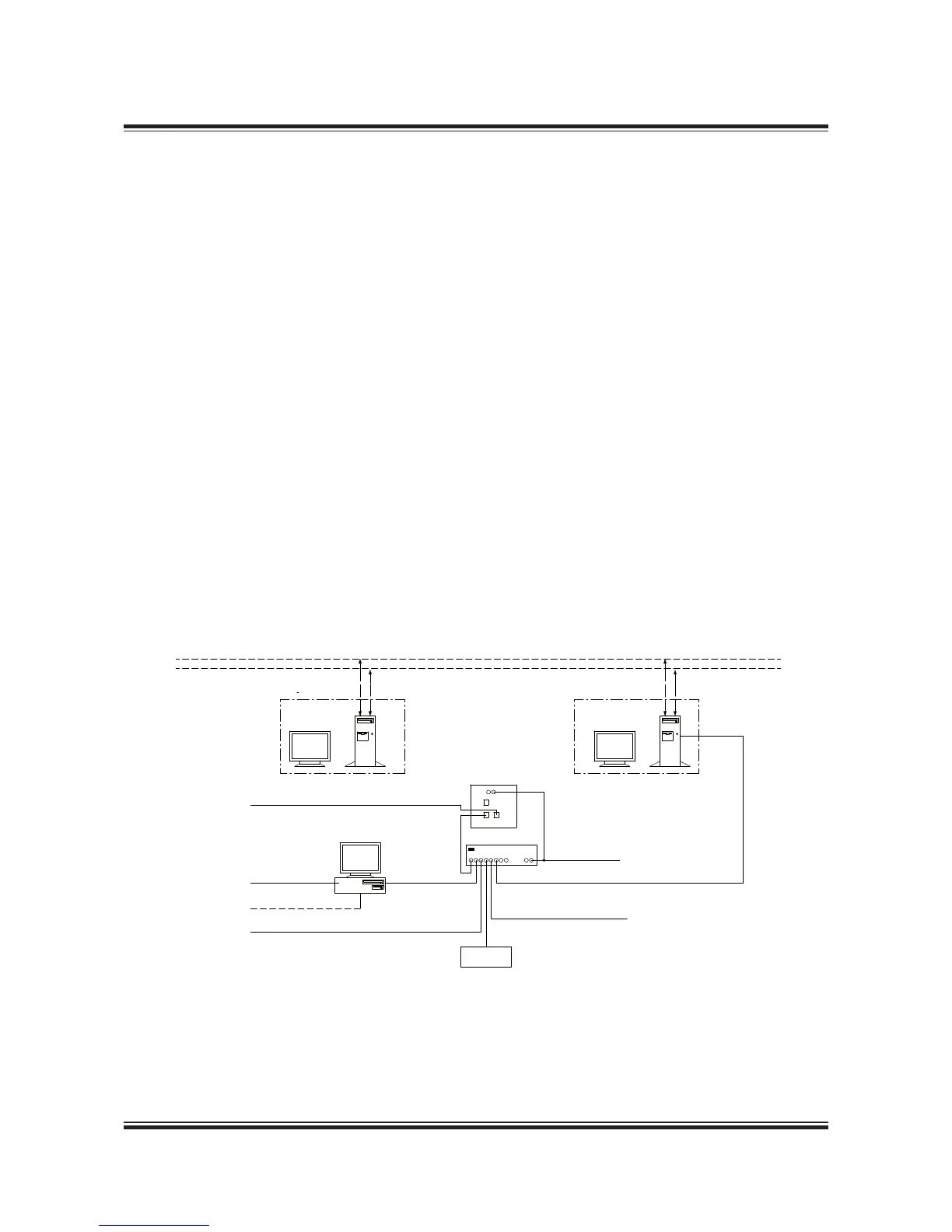

Fig. 5.16.01 Network and PC components for the ME/ME-B Engine Control System
078 74 78-1.3a
# Yard Supply
# Ethernet, supply with switch, cable length 10 metres
Type: RJ45, STP (Shielded TwistedPair), CAT 5
In case that 10 metre cable is not enough, this becomes Yard
supply.
Abbreviation:
PDB: Power Distribution Box
UPS: Uninterruptible Power Supply
PMI: Pressure Indicator
CoCos-EDS: Computer Controlled Surveillance-Engine
Diagnostics System
AMS: Alarm Monitoring Systems
