Data Sheet for Propeller
Identification: _______________________________
178 22 360.0
Table 5.18.02b: Data sheet for propeller design purposes
Type of vessel: ______________________________
For propeller design purposes please provide us
with the following information:
1. S: ______________ mm
W: _____________ mm

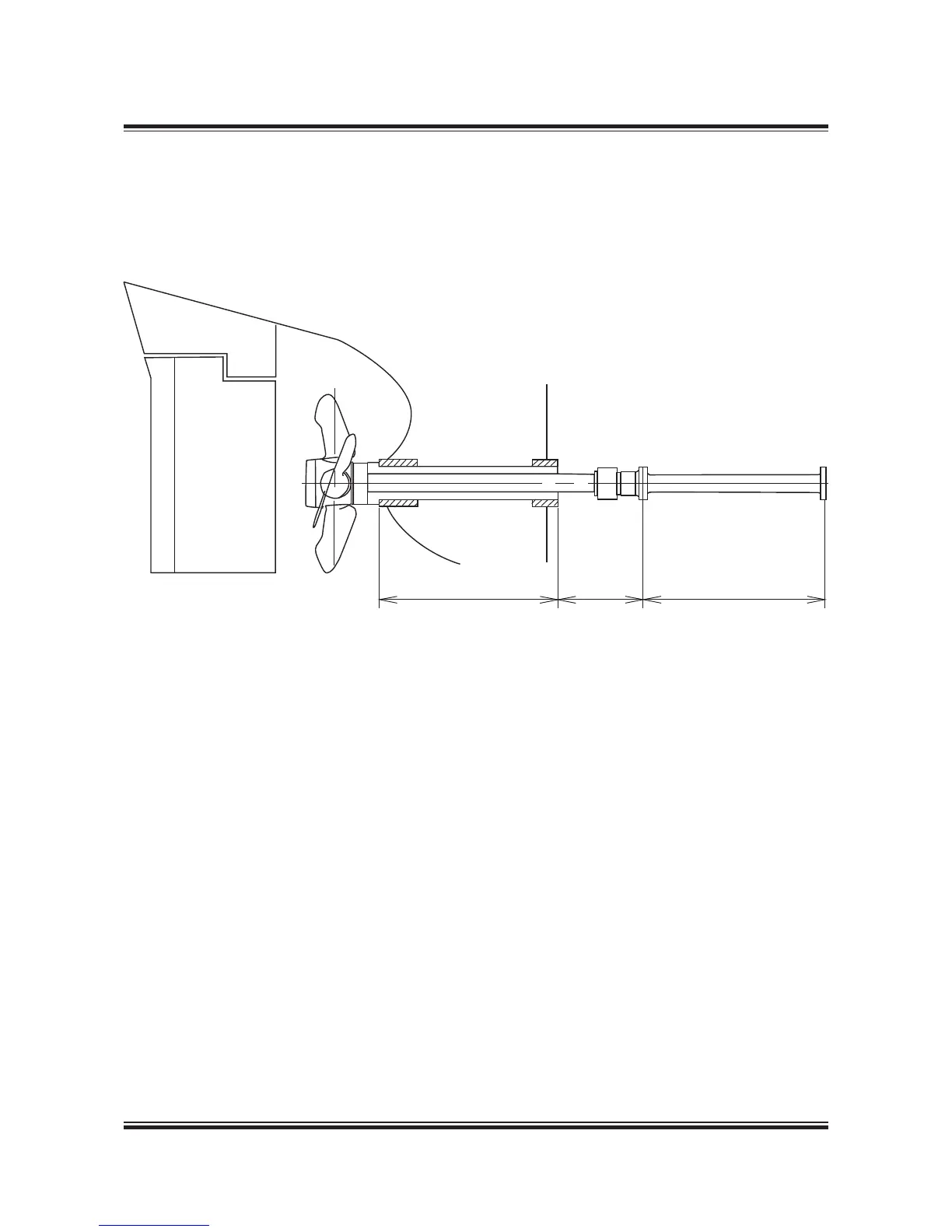

I: _______________ mm (as shown above)
2. Stern tube and shafting arrangement layout
3. Propeller aperture drawing
4. Complete set of reports from model tank (re-
sistance test, selfpropulsion test and wake
measurement). In case model test is not avail-
able the next page should be filled in.
5. Drawing of lines plan
6. Classification Society: __________
Ice class notation: _____________
7. Maximum rated power of shaft generator: kW
8. Optimisation condition for the propeller:
To obtain the highest propeller efficiency
please identify the most common service con-
dition for the vessel.
Ship speed: ___________________________ kn
Engine service load: ____________________ %
Service/sea margin: ____________________ %
Shaft generator service load: ____________ kW
Draft: _________________________________ m
9. Comments:
