MAN B&W 5.17
Page 3 of 3
MAN DieselMAN Diesel
198 49 292.4MAN B&W MC/MCC, ME/MEC/ME-GI/ME-B engines
Rudder
Voltage monitoring
for shafthull potential
difference
Shaftline
earthing device
V
Propeller shaft
Intermediate shaft
Intermediate shaft bearing
Current
Thrust bearing
Main bearings
Propeller
Shaft mounted alternator
where the rotor is part of
the intermediate shaft
079 21 82-1.3.3.0

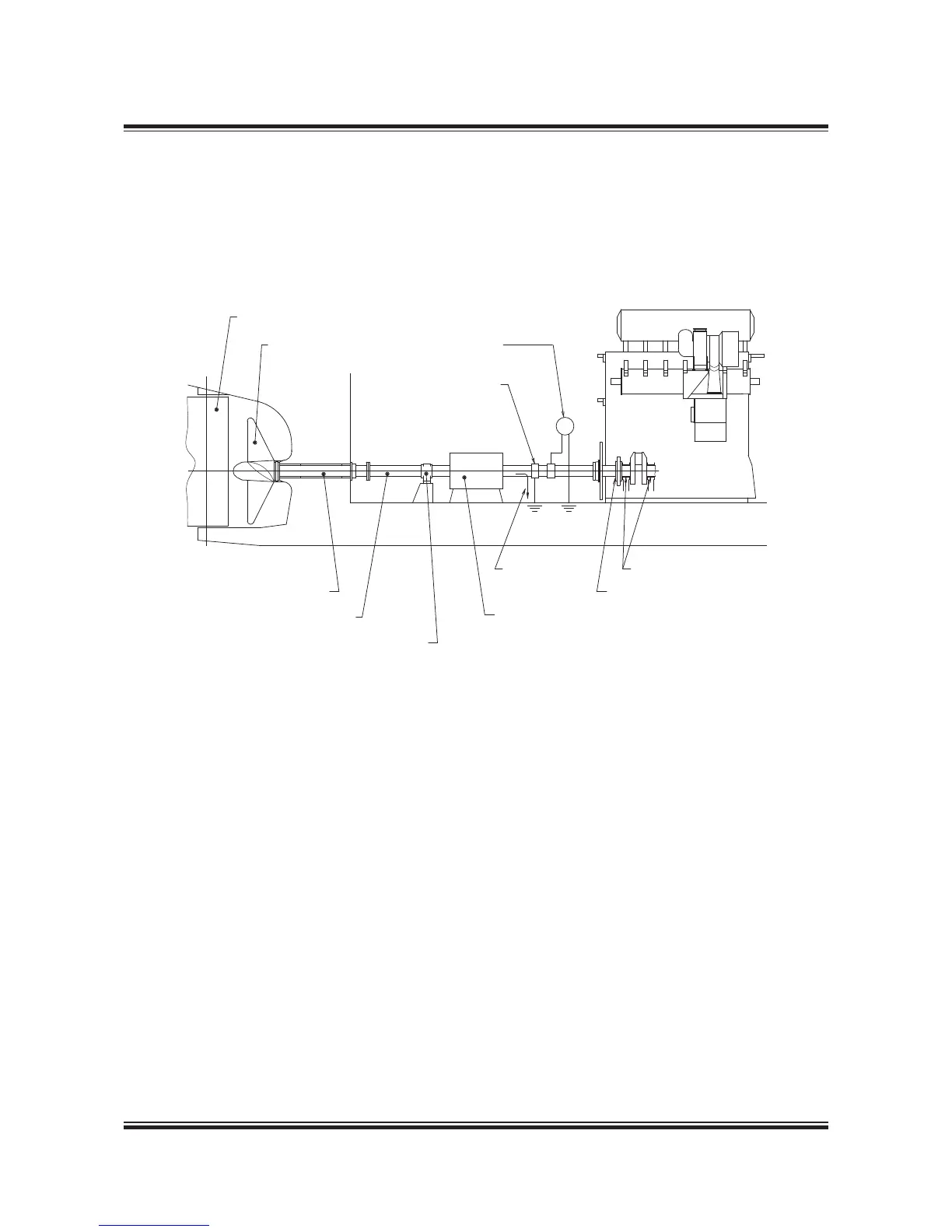

Fig. 5.17.03: Installation of shaftline earthing device in an engine plant with shaft-mounted generator
When a generator is fitted in the propeller shaft
system, where the rotor of the generator is part of
the intermediate shaft, the shaftline earthing de-
vice must be mounted between the generator and
the engine, see Fig. 5.17.03
