MAN B&W 16.01
Page 4 of 8
MAN Diesel
MAN B&W ME-B engines 198 51 84-2.3
Mechanicalhydraulic System with Hydraulic Power Supply Unit on Engine

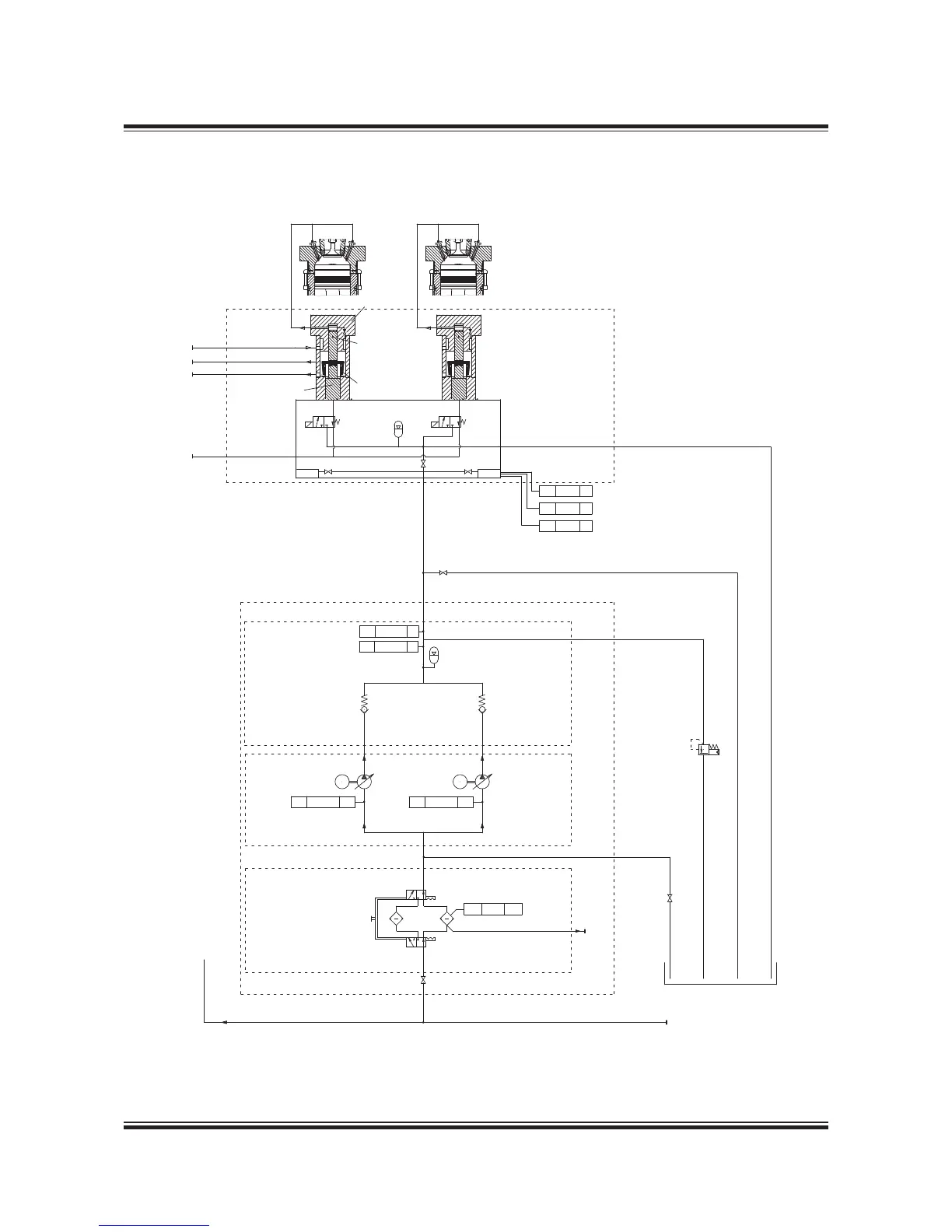

Fig. 16.01.02: Mechanicalhydraulic System with Hydraulic Power Supply Unit on Engine
178 55 63-4.1
Engine lubricating oil
Distributor block
Cylinder lubricator
Hydraulic Power Supply unit
Fuel oil drain
Fuel oil inlet
Pressure booster
Fuel injection
plunger
Hydraulic piston
High pressure pipes
Umbrella sealing
Fuel oil outlet
X
F
AD
Safety block
Filter unit
RU
Lube oil inlet to engine
Fuel valves
Main filter
XC 1231 AL
RW
Backflushing oil
M
M
PT 12041 ZL
PT 12042 ZL
PT 12011 C
PT 12012 C
ZV 8204 C
ZT 8203 C
LS 8208 C
Return to tank
ELFI
