MAN B&W 4.01
Page 2 of 6
MAN Diesel
198 41 55-0.5MAN B&W 98-50 MC/MC-C/ME/ME-C/ME-B/-GI engines
Total
Alternative types and layouts of shaft generators Design Seating efficiency (%)
1a 1b BW I/RCF On engine 8891
(vertical generator)
2a 2b BW II/RCF On tank top 8891
3a 3b BW III/RCF On engine 8891
4a 4b BW IV/RCF On tank top 8891
5a 5b DMG/CFE On engine 8488
6a 6b SMG/CFE On tank top 8991
7 BW I/GCR On engine 92
(vertical generator)
8 BW II/GCR On tank top 92
9 BW III/GCR On engine 92
10 BW IV/GCR On tank top 92
PTO/RCFPTO/CFEPTO/GCR

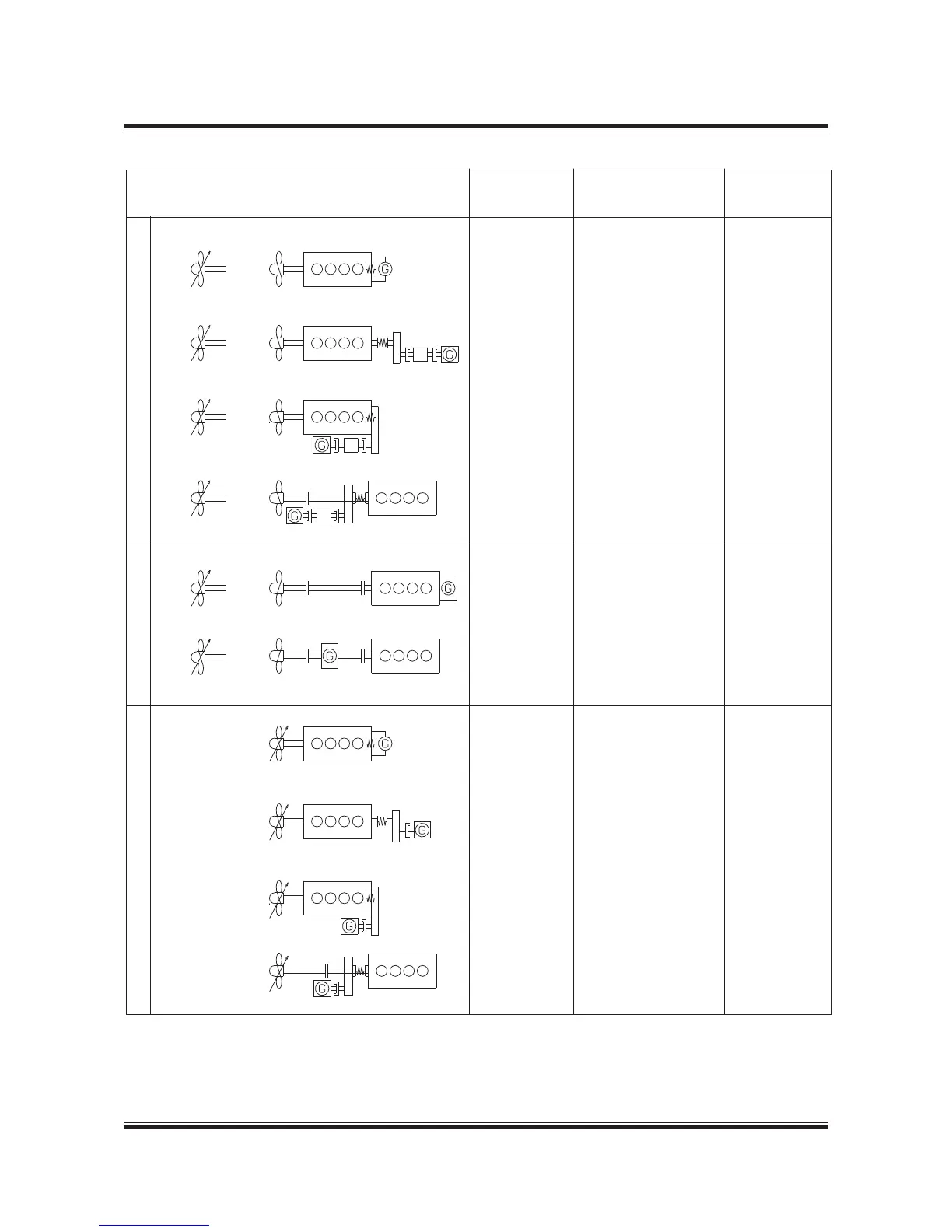

Fig. 4.01.01: Types of PTO
178 63 68-7.0
