Man B&W S50ME-B9.3-TII

MAN Diesel 4.10
Page 1 of 3
MAN Diesel
198 82 853.0MAN B&W 98-50MC/MC-C/ME/ME-C/ME-B/-GI-TII,
46-35ME-B/-GI-TII engines
L28/32H-Tll GenSet Data
Bore: 280 mm Stroke: 320 mm
Power layout
720 r/min 60 Hz 750 r/min 50 Hz
Eng. kW Gen. kW Eng. kW Gen. kW
5L28/32H 1,050 1,000 1,100 1,045
6L28/32H 1,260 1,200 1,320 1,255
7L28/32H 1,470 1,400 1,540 1,465
8L28/32H 1,680 1,600 1,760 1,670
9L28/32H 1,890 1,800 1,980 1,880
178 23 092.0
No. of Cyls. A (mm) * B (mm) * C (mm) H (mm)
**Dry weight
GenSet (t)
5 (720 r/min) 4,279 2,400 6,679 3,184 32.6
5 (750 r/min) 4,279 2,400 6,679 3,184 32.6
6 (720 r/min) 4,759 2,510 7,269 3,184 36.3
6 (750 r/min) 4,759 2,510 7,269 3,184 36.3
7 (720 r/min) 5,499 2,680 8,179 3,374 39.4
7 (750 r/min) 5,499 2,680 8,179 3,374 39.4
8 (720 r/min) 5,979 2,770 8,749 3,374 40.7
8 (750 r/min) 5,979 2,770 8,749 3,374 40.7
9 (720 r/min) 6,199 2,690 8,889 3,534 47.1
9 (750 r/min) 6,199 2,690 8,889 3,534 47.1
P Free passage between the engines, width 600 mm and height 2,000 mm
Q Min. distance between engines: 2,655 mm (without gallery) and 2,850 mm (with gallery)
* Depending on alternator
** Weight includes a standard alternator, make A. van Kaick
All dimensions and masses are approximate and subject to change without prior notice.
178 33 921.3

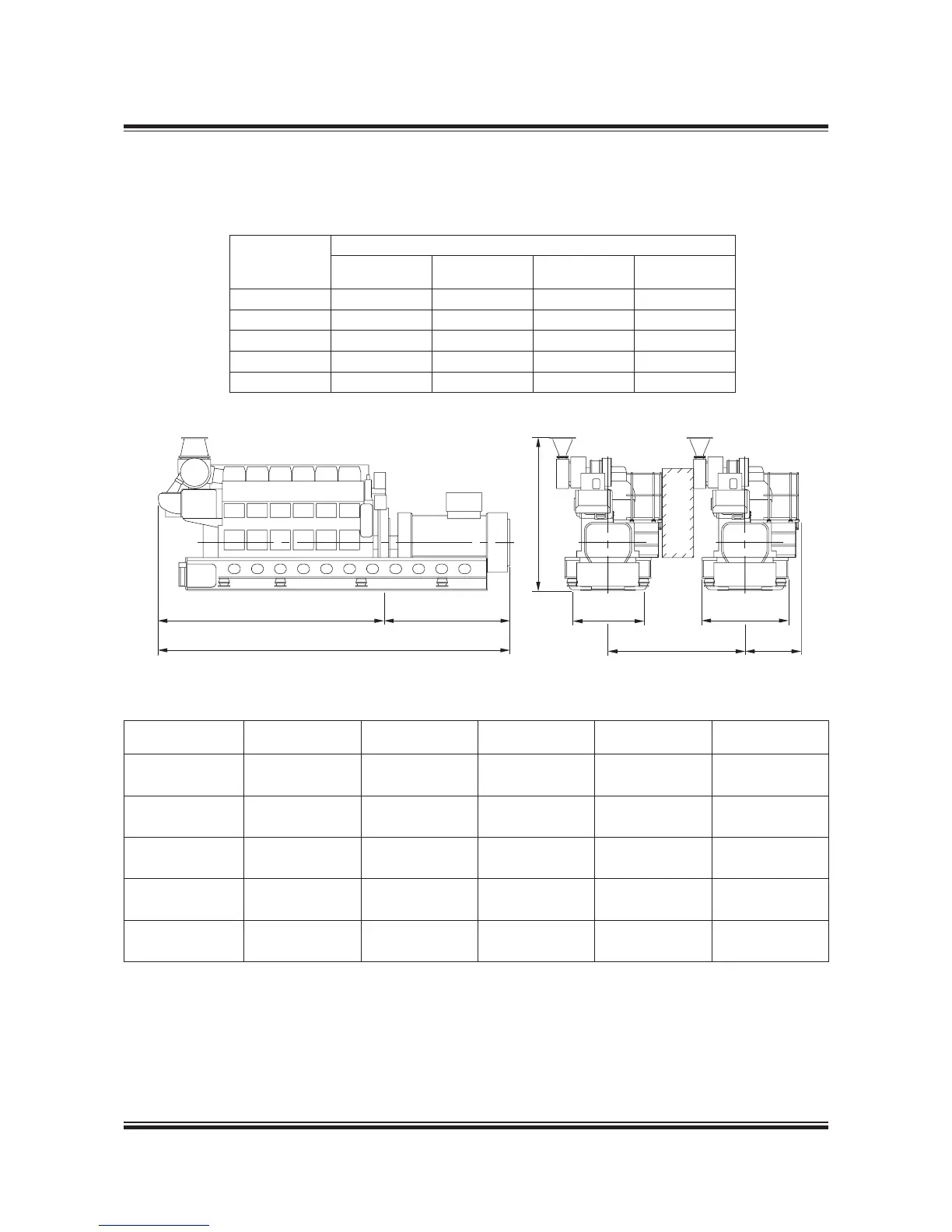

Fig. 4.10.01: Power and outline of L28/32H, IMO Tier II
A
C
B
H P
1,490
Q
1,800
1,126
