SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-16
Published 06-24-16, Control # 241-01

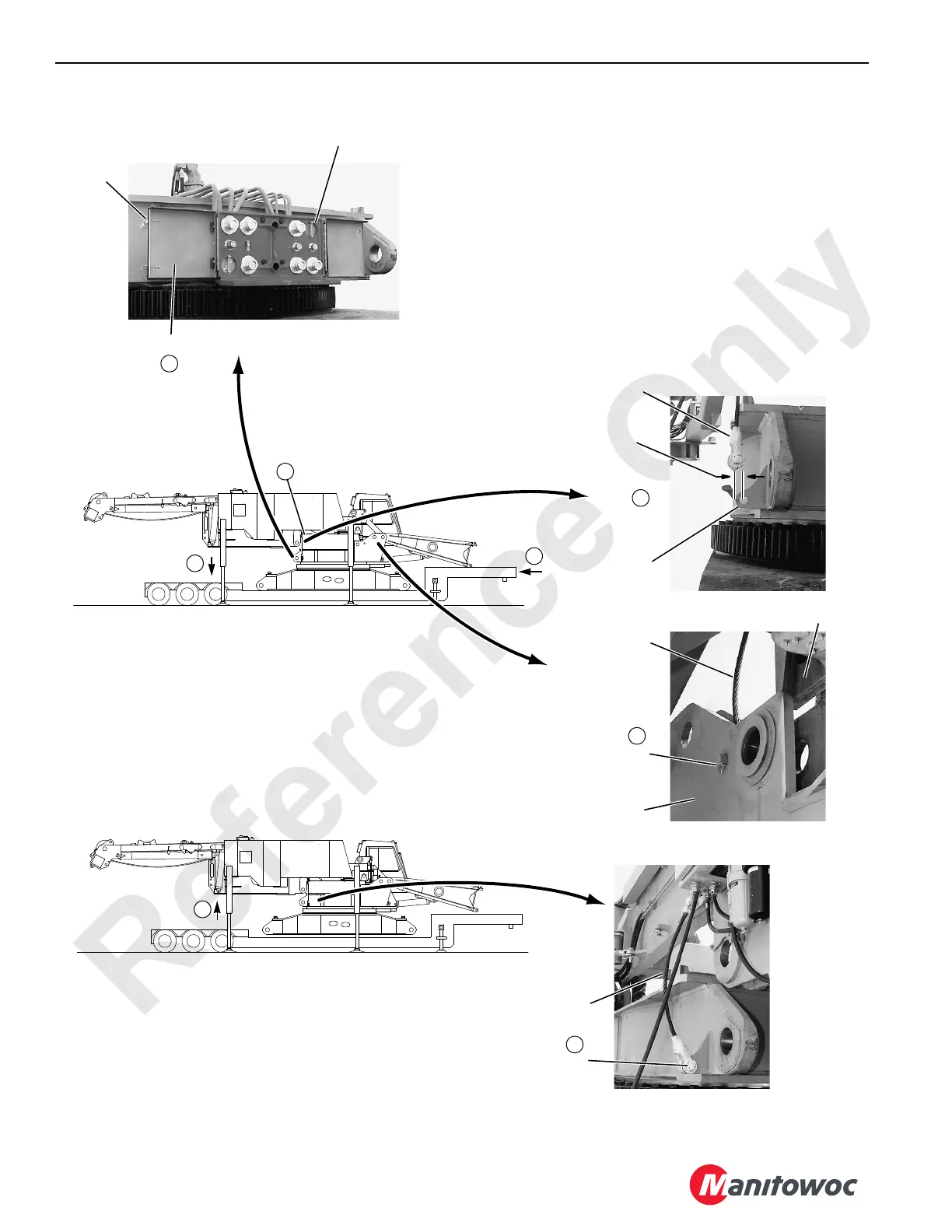

FIGURE 4-10
Latch
Adapter Frame
Hydraulic Disconnect
Rear Alignment
Pendant
10 cm (±4 in)
Tolerance Left to Right
and Front to Rear
Rear Adapter
Frame Lug
Door
Rear Alignment
Pendant
Pin
Front
Alignment
Pendant
Adapter
Frame
Rotating Bed
P671
P672
P673
P674
A1044
View A
View B
View C
View D
A1044
2
3
1
4
6
Pin
3
5
5
