SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-60
Published 06-24-16, Control # 241-01

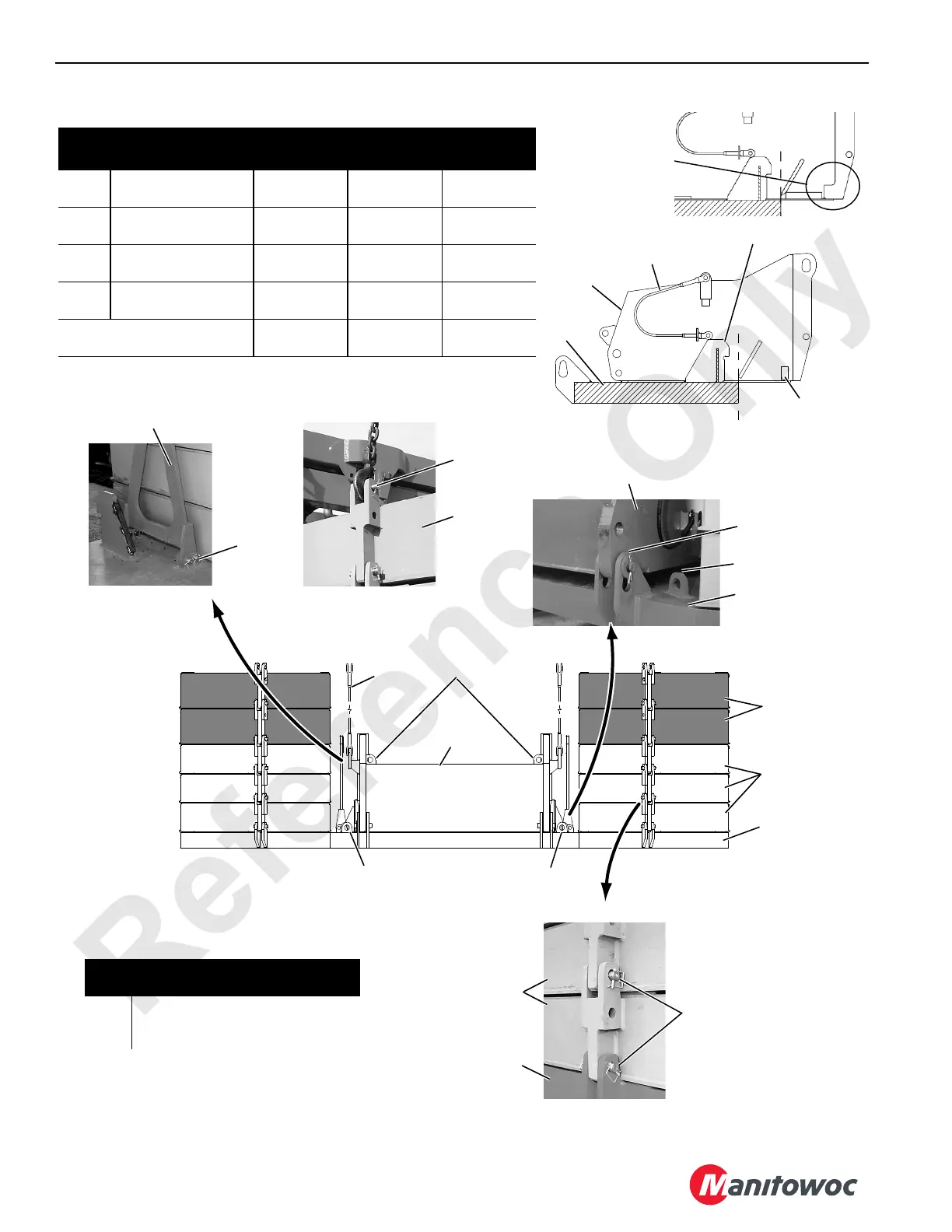

FIGURE 4-32
View B
P811
A1059
Pin with Washers
on Both Sides
4
P807
View E
View D
Lifting
Pendant
P813
Side Box
Pins
COUNTERWEIGHT REQUIREMENT
Item Description Series 1 Series 2 Series 3
1 Lower Tray
17 588 kg (38,775 lb)
111
2 Center Box
16 783 kg (37,000 lb)
111
3Side Box
7 031 kg (15,500 lb)
3
Both Sides
3
Both Sides
3
Both Sides
4Side Box
9 072 kg (20,000 lb)
01
Both Sides
2
Both Sides
TOTAL WEIGHT
76 748 kg
(169,200 lb)
84 898 kg
(209,214 lb)
113 064 kg
(249,264 lb)
LIFTING POINTS
Item Description
L1 Lifting Lug—Lower Tray (qty 4)
L2 Lifting Lug—Center Box (qty 2)
L3 Lifting Pin—Side Box (qty 2)
L1
1
3
1
2
L2
A1059
L3
2
1
View A
Series 3 Only
Counterweight
Support Lugs
(2 places)
In-Line
Hook
Lower
Tray
Side Boxes
L1
L1
2
View F
Counterweight
Lifting Frame
(operating position)
Pins
P812
View C
Lifting
Pendant
(stored)
Current
Production
A1059_b
