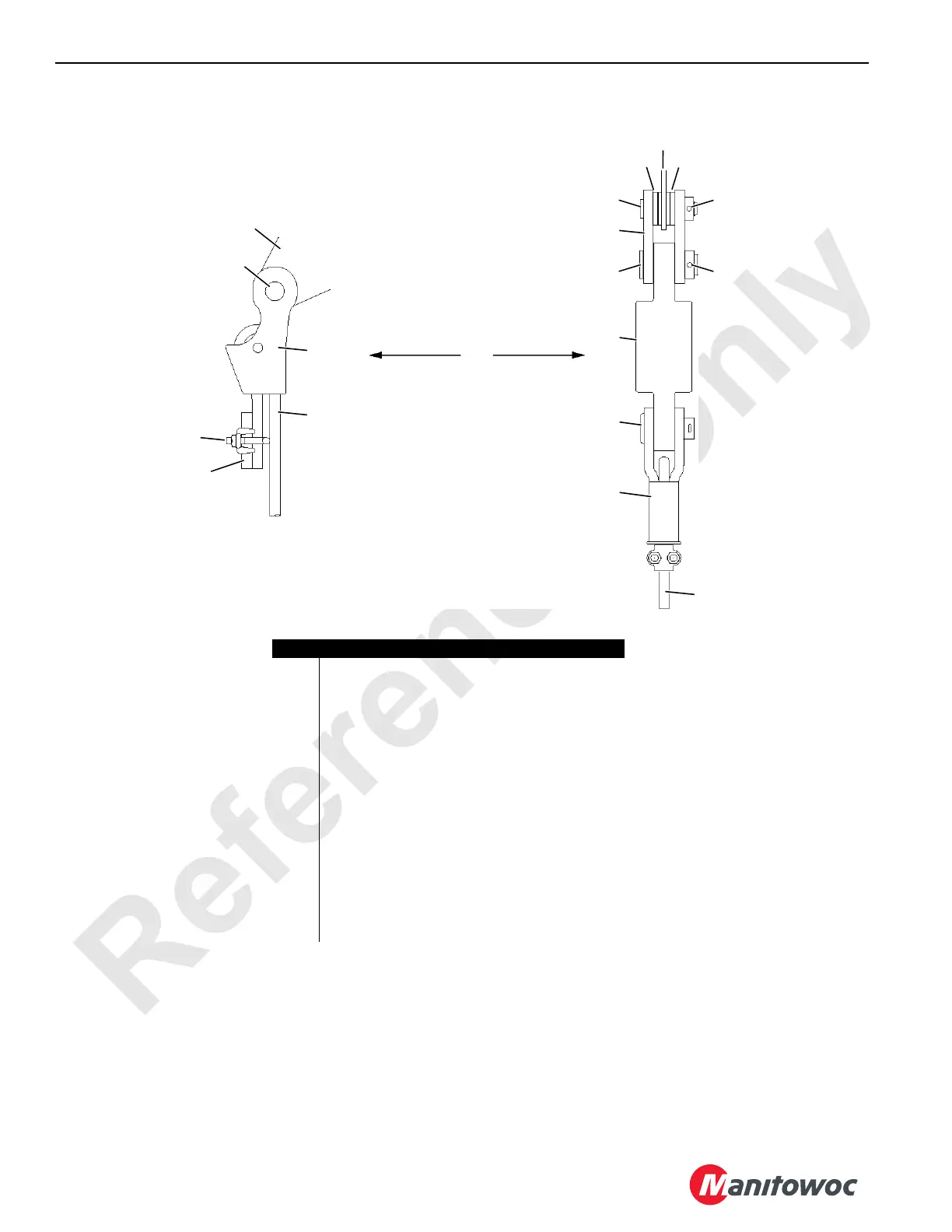

Typical Dead-End Socket and
Wedge Assembly
172960
Item Description
1 #44 Boom Top
2 Pin with Cotter Pin
3 Socket and Wedge (size to match wire rope)
4Wire Rope
5 Rope Clip (size to match wire rope)
6 Length of Wire Rope—152 mm (6 in)
7 Spacer (2 each)—Must Be Installed to Prevent
Overloading Pin (8)
8Pin
9 Collar with Retaining Pin and Cotter Pins
10 Link (2 each)
11 Pin
12 Collar with Retaining Pin and Cotter Pins
13 Swivel
14 Pin with Cotter Pin
15 Terminator Socket and Wedge
1
2
3
5
6
7
3
4
7
10
8
9
11
12
13
14
15
4
OR
FIGURE 4-74
