7.4 Fuel system
7 - 30 3 302 577 en Maintenance manual
GMK7450
16.08.2018
7.4.3 Replacing fuel filter 1
Interval The engine manufacturer specifies a interval of 500 oper. hrs. (M 6) for
changing the fuel filter;
à Engine manufacturer’s documentation.
• Change the filter at the very latest when soiling degree (D) is reached;
à P. 7 - 28.
Spare parts and
tools
– Receptacle, approx. 5 l (1.5 gal);
à P. 2 - 4.
– Special wrench for the ring on the cover (GROVE part no. 04256759).
Prerequisites – The truck crane must be level and on outriggers;
à Operating manual.
– The engine must not be running and must be secured against unauthor-
ised use;
à P. 2 - 3.
Changing

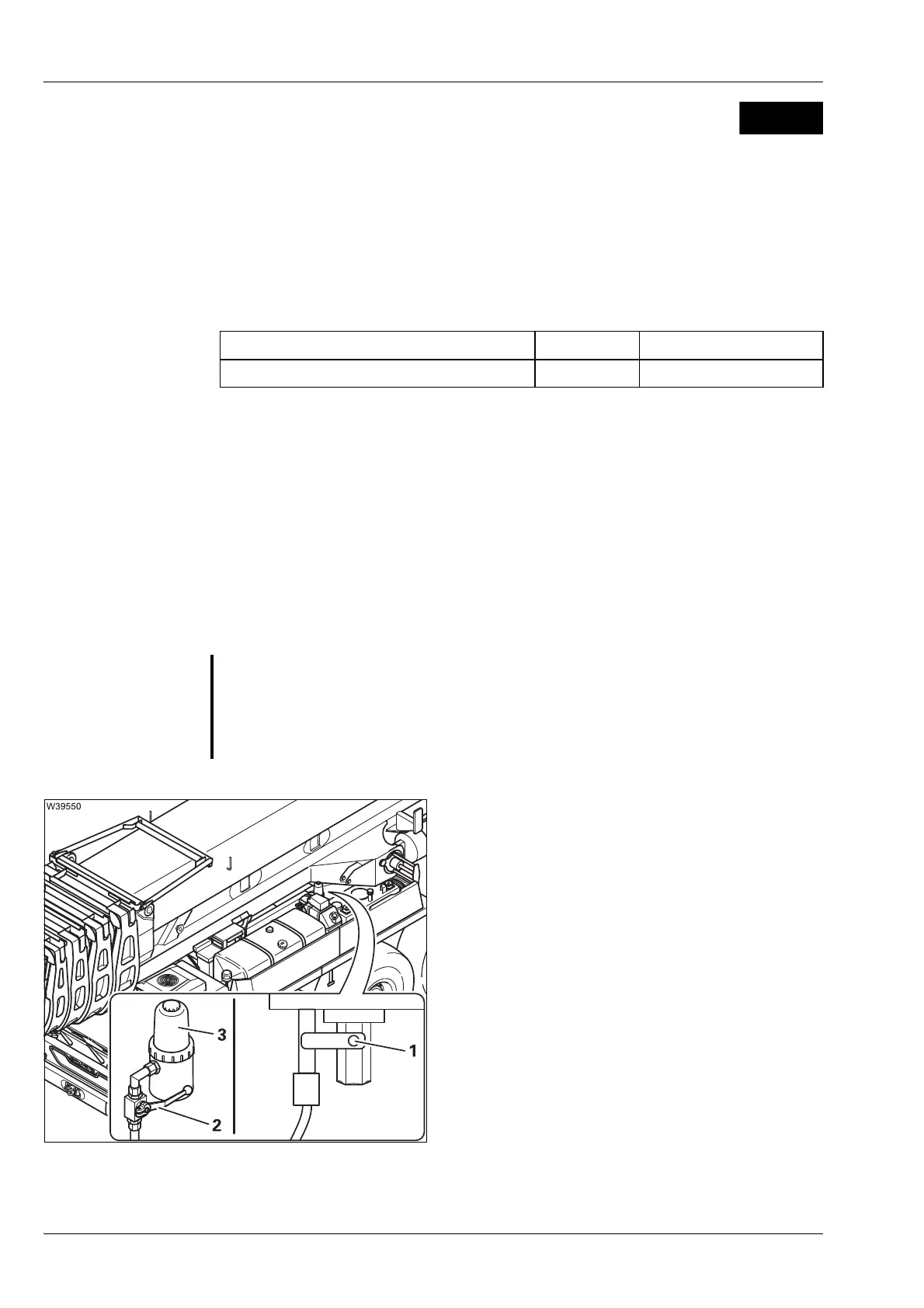

• Place a receptacle underneath the filter.
• Close the valve – lever (2) at right angles to
the line.
• Open the valve – lever (1) parallel to the
pipe, and allow the consumable to drain
fully out of the transparent cover (3).
• Close the valve – lever (1) at right angles to
the line.
Designation Quantity GROVE part no.
Filter 1 04256757
O
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
