Maintenance work on the carrier
7.4 Fuel system
16.08.2018
Maintenance manual 3 302 577 en 7 - 27
GMK7450

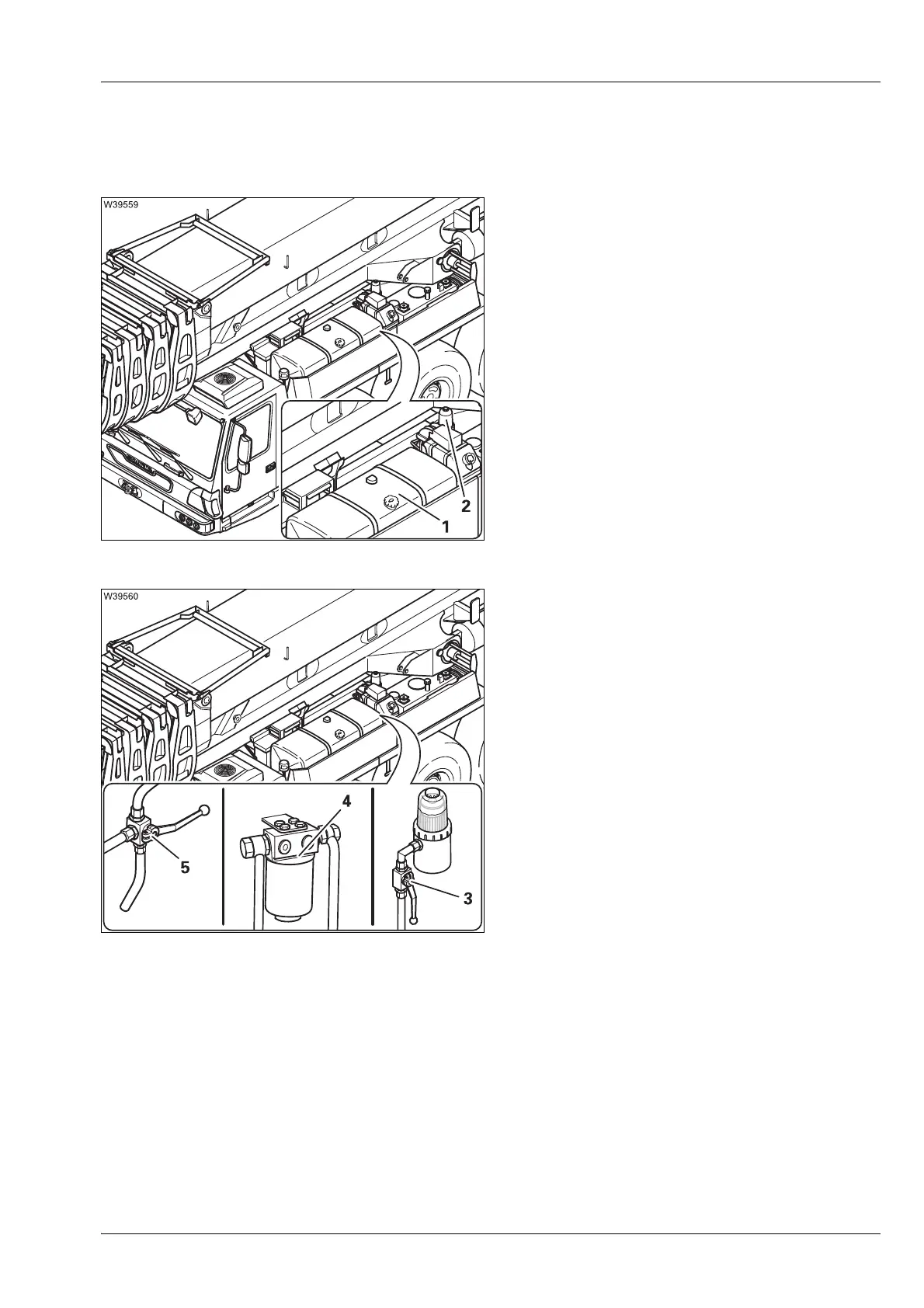

7.4 Fuel system
The following elements are installed in the
carrier fuel system:
1 Fuel tank
2 Fuel filter 1
3 Valve
in the supply line;
for shutting off the supply
4 Fuel filter 2
5 3-way valve
in the return line;
for draining the fuel
