Manitowoc GROVE GMK7450 User Manual

Maintenance work on the carrier
7.11 Suspension
16.08.2018
Maintenance manual 3 302 577 en 7 - 77
GMK7450
7.11 Suspension
7.11.1 Suspension struts – Checking the oil level
Oil, spare parts,
tools
– Press with connected hose (from the toolbox).
Prerequisites – The engine must not be running and must be secured against unauthor-
ised use;
à P. 2 - 3.
– Immediately before the inspection, the truck crane must be completely
lowered and returned to
on-road level; à Operating manual.
Checking the oil
level
s
M 1
Oil
in litres (gal)
Designation GROVE part no.

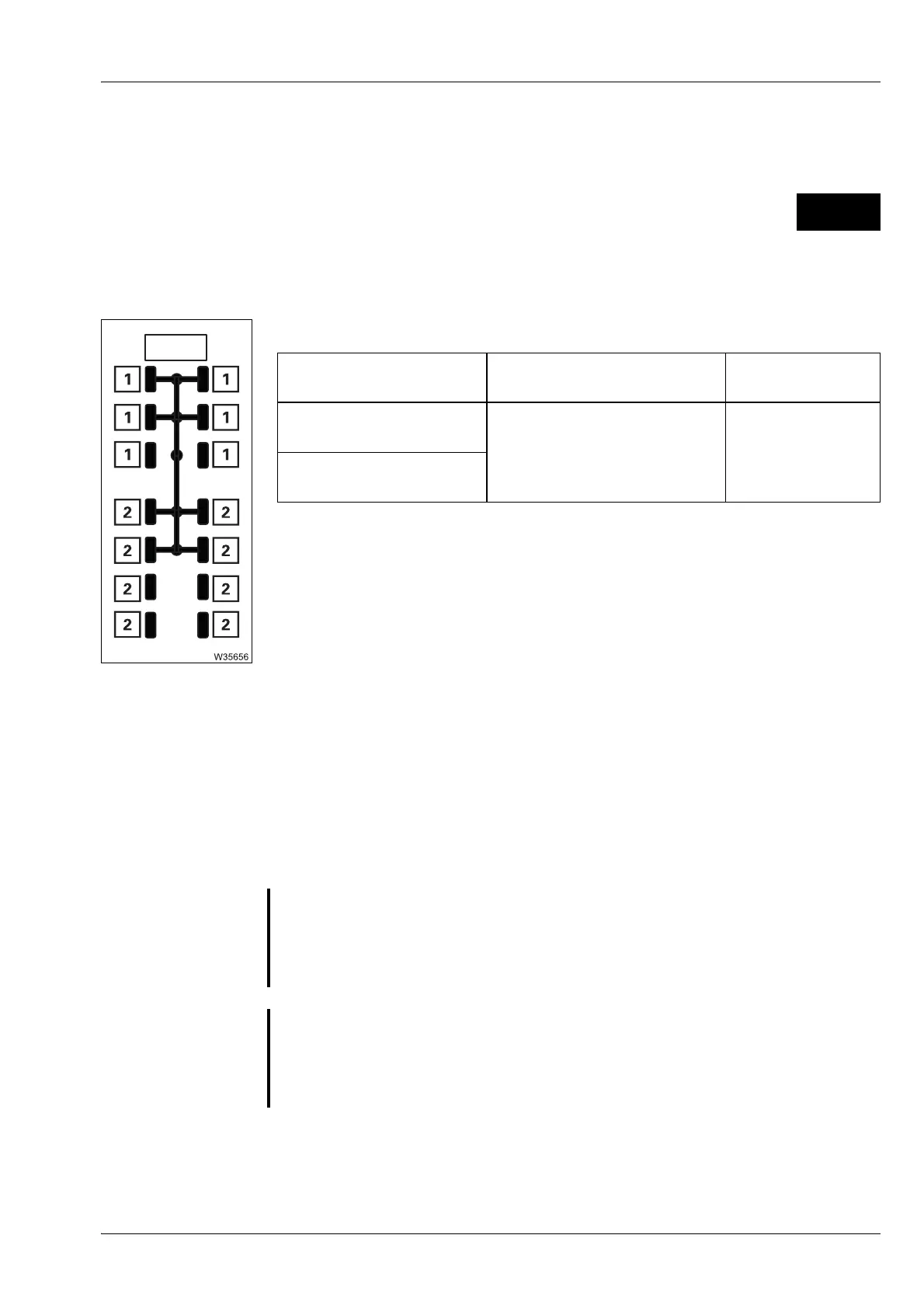

6 x suspension struts (1)
1.5 (0.4) each
Rivolta S.K.D. gear oil 170 02310863
8 x suspension struts (2)
3.2 (0.84) each
S
Risk of damage due to faulty suspension struts!
If the oil level is above the upper marking on the sight glass, the suspension
strut is faulty and must be replaced.
Notify
Manitowoc Crane Care or an authorised GROVE dealer.
S
Risk of damage to the suspension struts due to insufficient lubrication!
It is difficult to inject the oil. Do not fill oil through the inspection glass con-
nections. If you do this, the oil will not reach all the lubricating points.
