Maintenance work on the superstructure
8.4 Fuel system
16.08.2018
Maintenance manual 3 302 577 en 8 - 31
GMK7450
8.4.3 Replacing fuel filter 2
Spare parts and
tools
– Receptacle, approx. 5 l (1.5 gal);
à P. 2 - 4.
Prerequisites – The truck crane must be level;
à Operating manual.
– The engine must not be running and must be secured against unauthor-
ised use;
à P. 2 - 3.

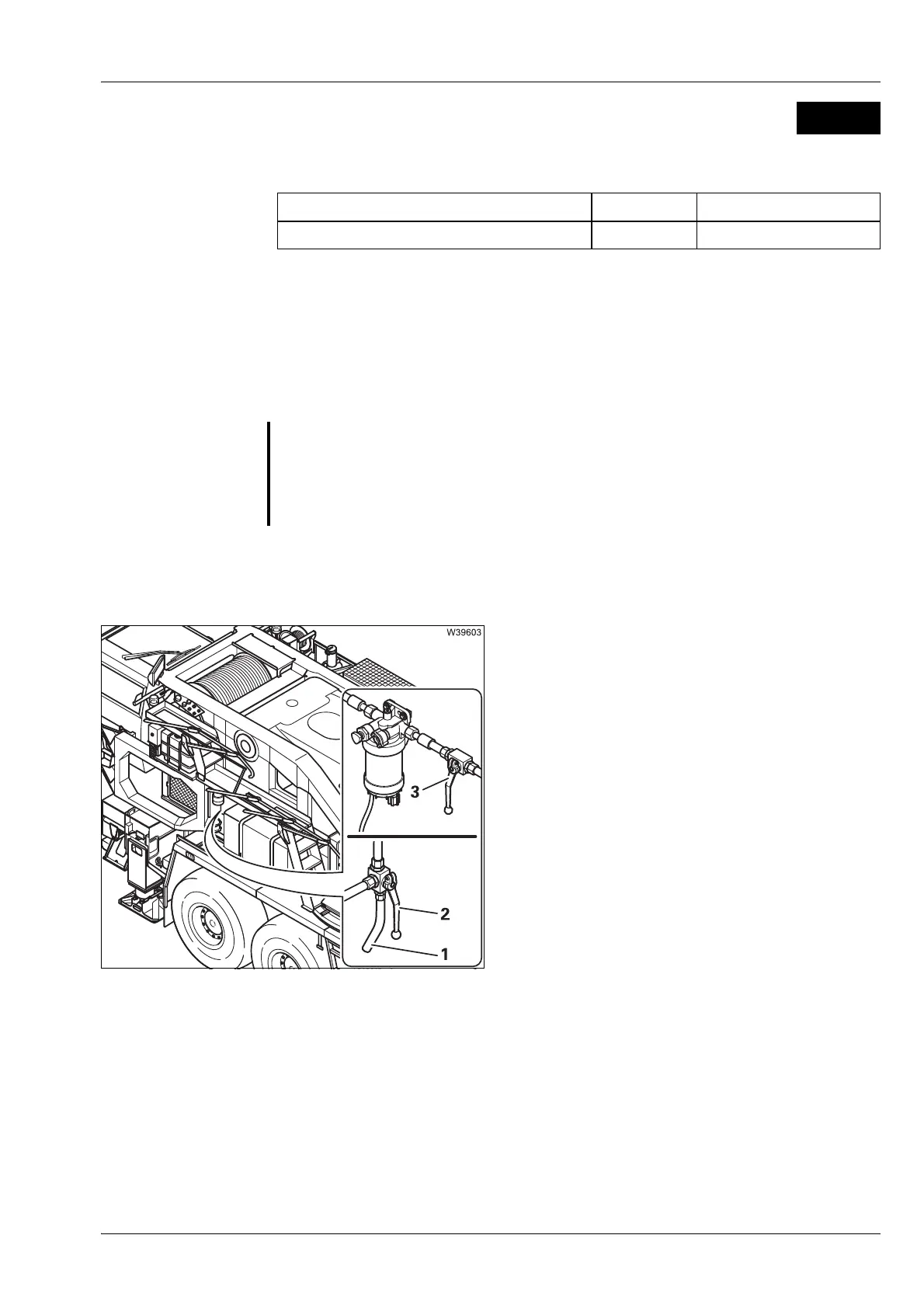

Emptying the fuel
line
• Close the valve – lever (3) at right angles to
the line.
• Place a receptacle under the end of the
hose (1).
• Turn the valve – lever (2) parallel with the
end of the hose (1).
• Let the consumable drain into the
receptacle.
Leave the receptacle under the end of the
hose. More con
sumable will run out when you
bleed the fuel line.
s
M 6
Designation Quantity GROVE part no.
Filter 1 04182157
O
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable recept
acles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
