Maintenance work on the carrier
7.4 Fuel system
7 - 32 3 302 577 en Maintenance manual
GMK7450
16.08.2018
7.4.4 Replacing fuel filter 2
Spare parts and
tools
– Receptacle, approx. 5 l (1.5 gal);
à P. 2 - 4.
– Strap wrench.
Prerequisites – The truck crane must be level and on outriggers;
à Operating manual.
– The main boom must be fully raised;
à Operating manual.
– The engine must not be running and must be secured against unauthor-
ised use;
à P. 2 - 3.
– If the fuel is dirty: Reduce the maintenance interval.
Changing
Emptying the line

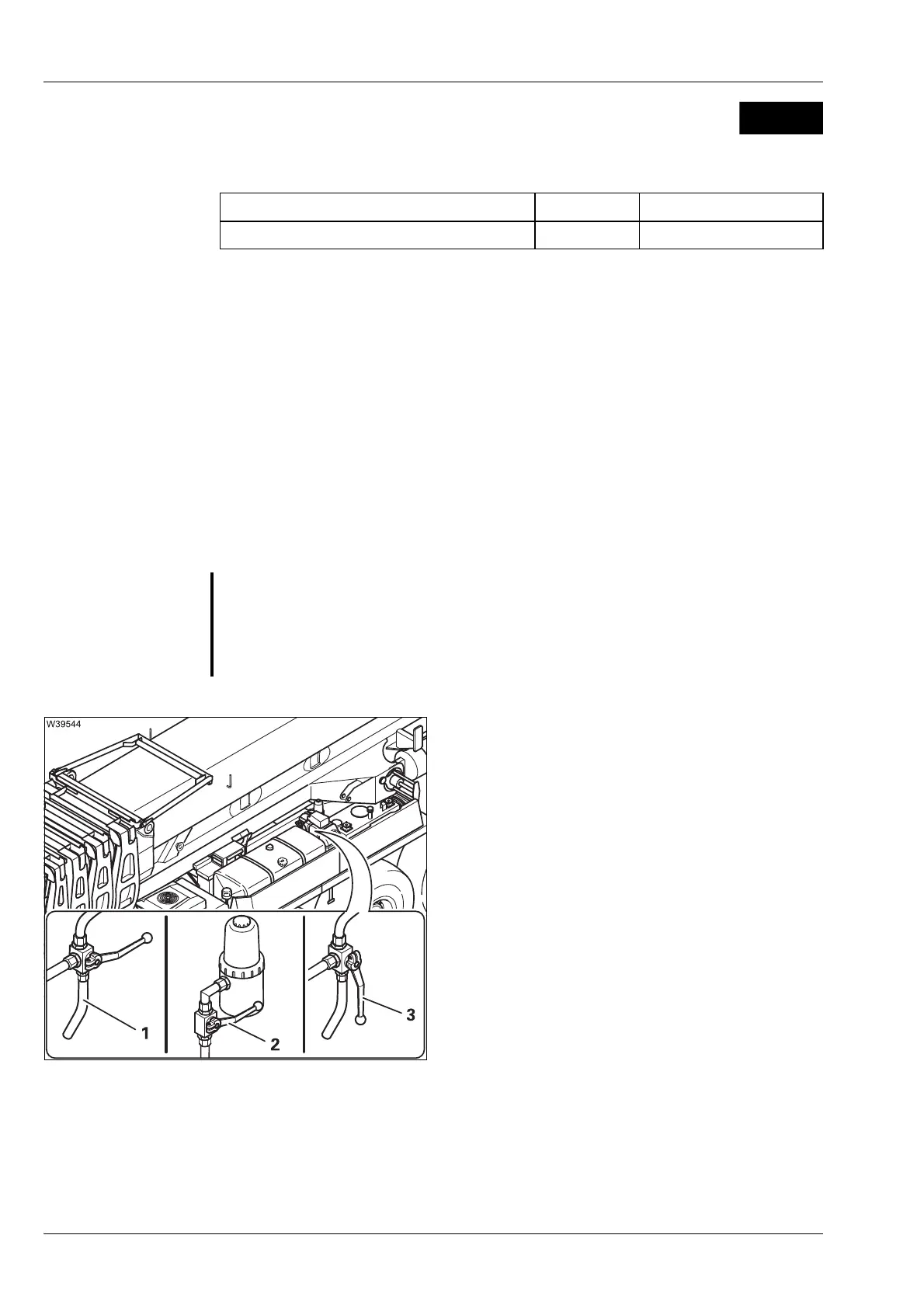

• Place a receptacle under the line (1).
• Close the valve – lever (2) at right angles to
the line.
• Open the valve – lever (3) parallel to the line.
• Let the consumable drain.
Designation Quantity GROVE part no.
Filter 1 04241343
O
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
