Manitowoc GROVE GMK7450 - Fuel System Maintenance (Superstructure)

Maintenance work on the superstructure
8.4 Fuel system
16.08.2018
Maintenance manual 3 302 577 en 8 - 27
GMK7450
8.4 Fuel system

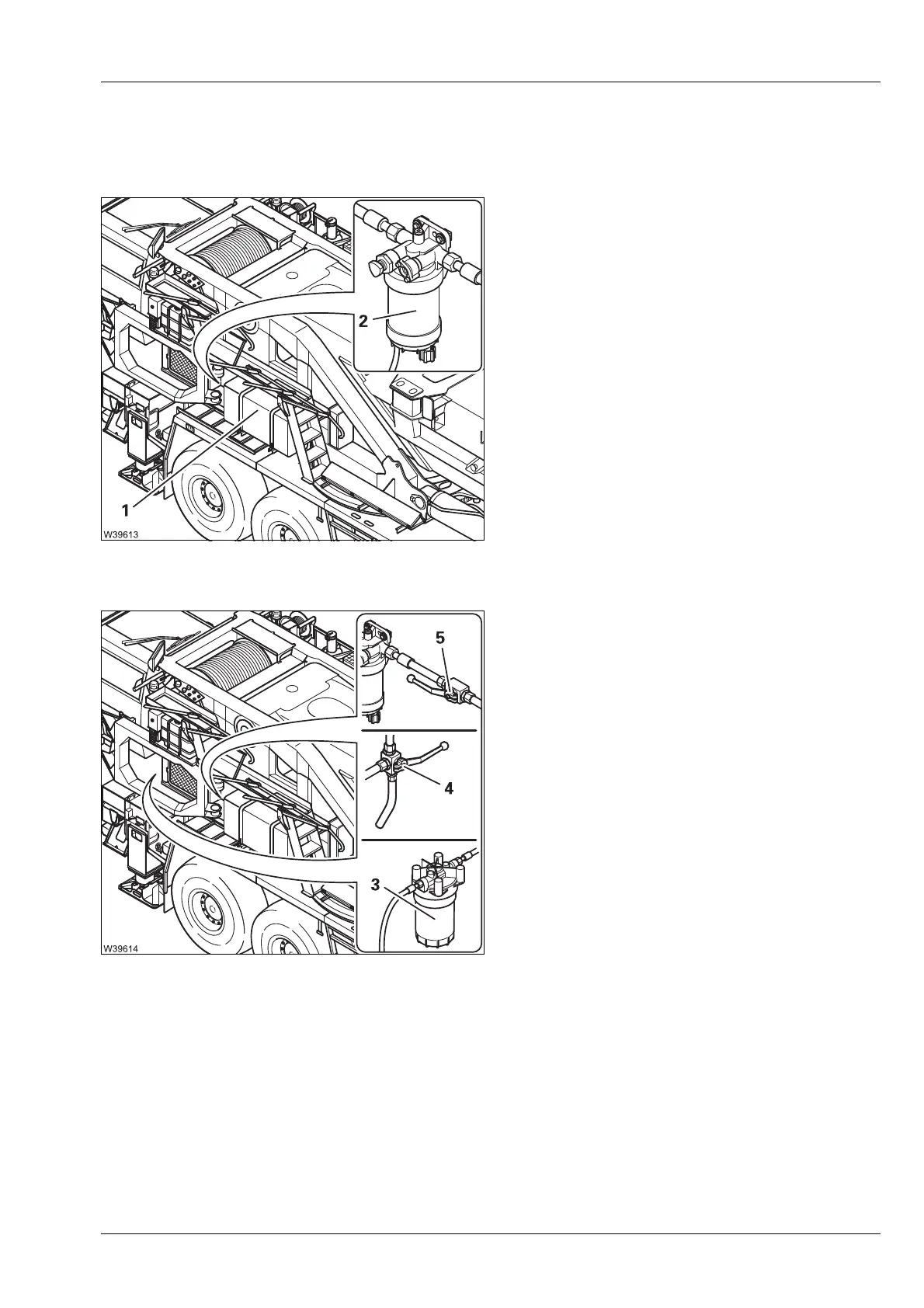

The following elements are installed in the
superstructure fuel line:
1 Fuel tank
2 Fuel filter 1
3 Fuel filter 2
4 3-way valve
in the return line;
for draining the fuel
5 Valve
in the supply line;
for shutting off the supply
