Maintenance work on the carrier
7.7 Transfer case
7 - 52 3 302 577 en Maintenance manual
GMK7450
16.08.2018
Checking the oil
level

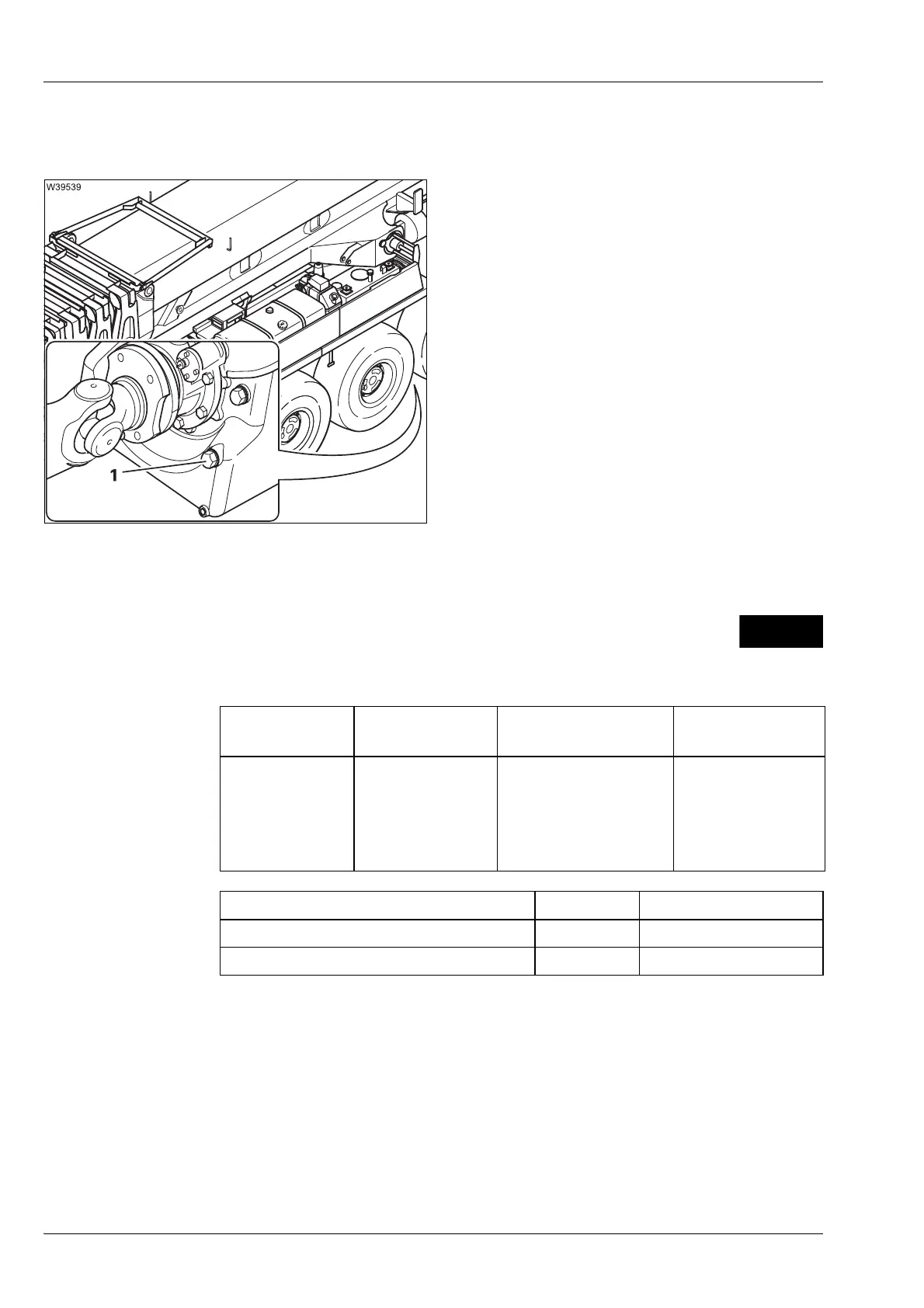

• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening (1).
• Fit a new gasket and tighten the screw (1).
If the oil level is too low
• Top up with oil; à P. 7 - 53.
7.7.3 Changing the oil
Oil, spare parts,
tools
– Receptacle, approx. 15 l (4.0 gal);
à P. 2 - 4.
Prerequisites – The truck crane must be raised on outriggers or parked over an inspection
pit.
–
The engine must not be running and must be secured against unauthor-
ised use;
à P. 2 - 3.
M 6
Gear oil
in litres (gal)
Designation
to DIN 51502
Specifications
Classification
GROVE part no.
12.8 (3.4)
(14 x 6 drive)
11.8 (3.1)
(14 x 8 drive)
C - LPF MIL-L 2105 B
API-GL-5
Viscosity:
Hyp SAE 90
ISO - VG
220
00552891
Designation Quantity GROVE part no.
Gasket 16 x 20 Cu DIN 7603 1 00117134
Gasket 30 x 36 Cu DIN 7603 1 00117151
