Maintenance work on the carrier
7.8 Axle lines
7 - 58 3 302 577 en Maintenance manual
GMK7450
16.08.2018

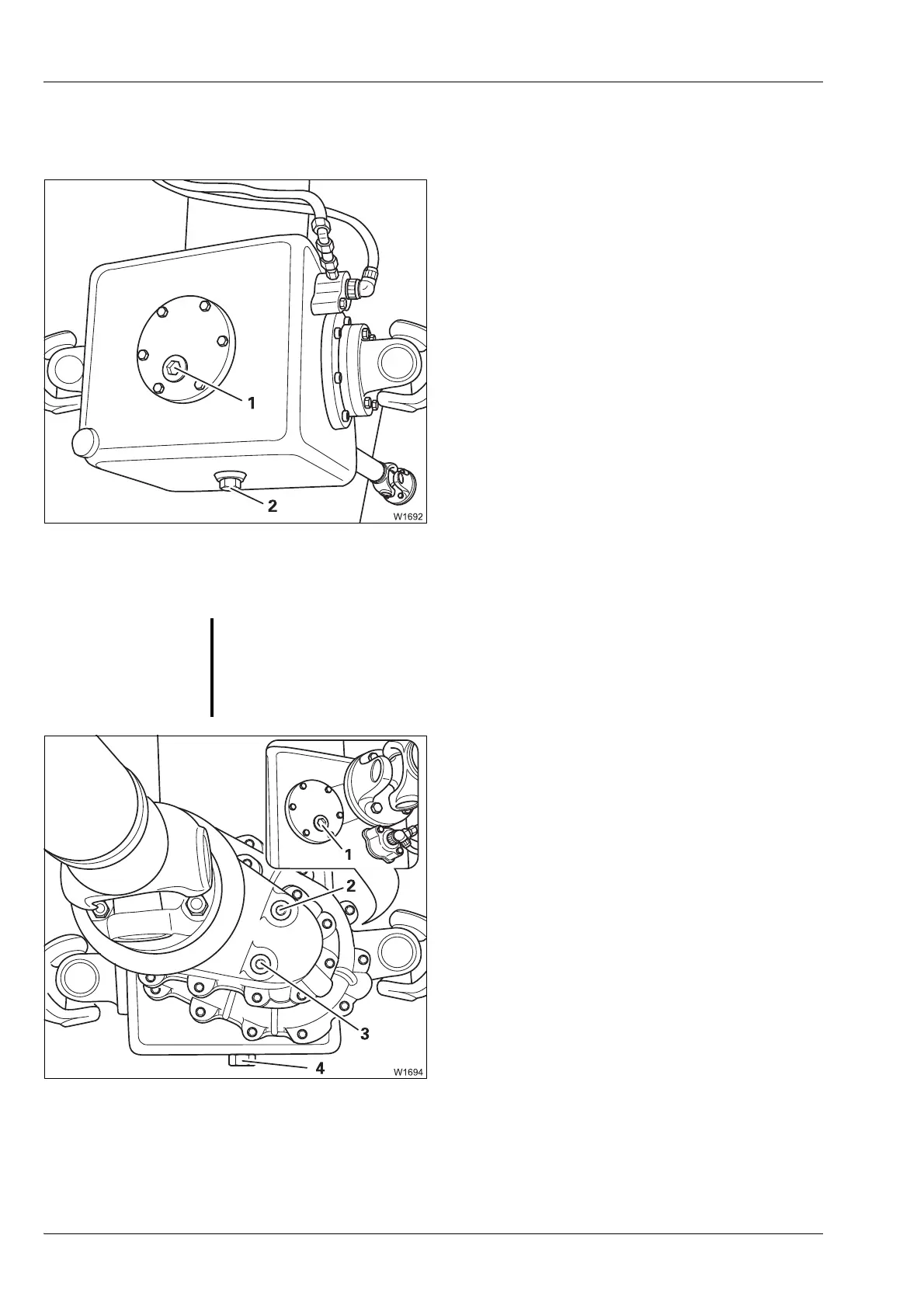

1st and 5th axle
line
• Place a receptacle under the screw (2).
• Unscrew drain plugs (1) and (2) and allow
the oil to drain.
• Fit a new gasket and tighten the screw (2).
• Fill the oil up to the lower edge of the
opening.
• Fit a new gasket and tighten the screw (1).
2nd and 4th axle
line
The drive has two oil chambers.
• Place a receptacle under screws (3) and (4).
• Remove the drain plugs (1), (2), (3) and (4)
and let the oil drain off.
• Fit new gaskets and tighten the screws (3)
and (4).
• Top up oil through opening (2) until it flows
out of the opening (1).
• Fit new gaskets and tighten the screws (1)
and (2).
S
Risk of oil overheating!
When topping up the oil, both openings must be opened so that both oil
tanks are filled equally. This prevents
the oil tanks from being overfilled and
thus the oil from overheating.
