Maintenance work on the carrier
7.14 Hydraulic system
7 - 102 3 302 577 en Maintenance manual
GMK7450
16.08.2018
Changing filters 1
and 2

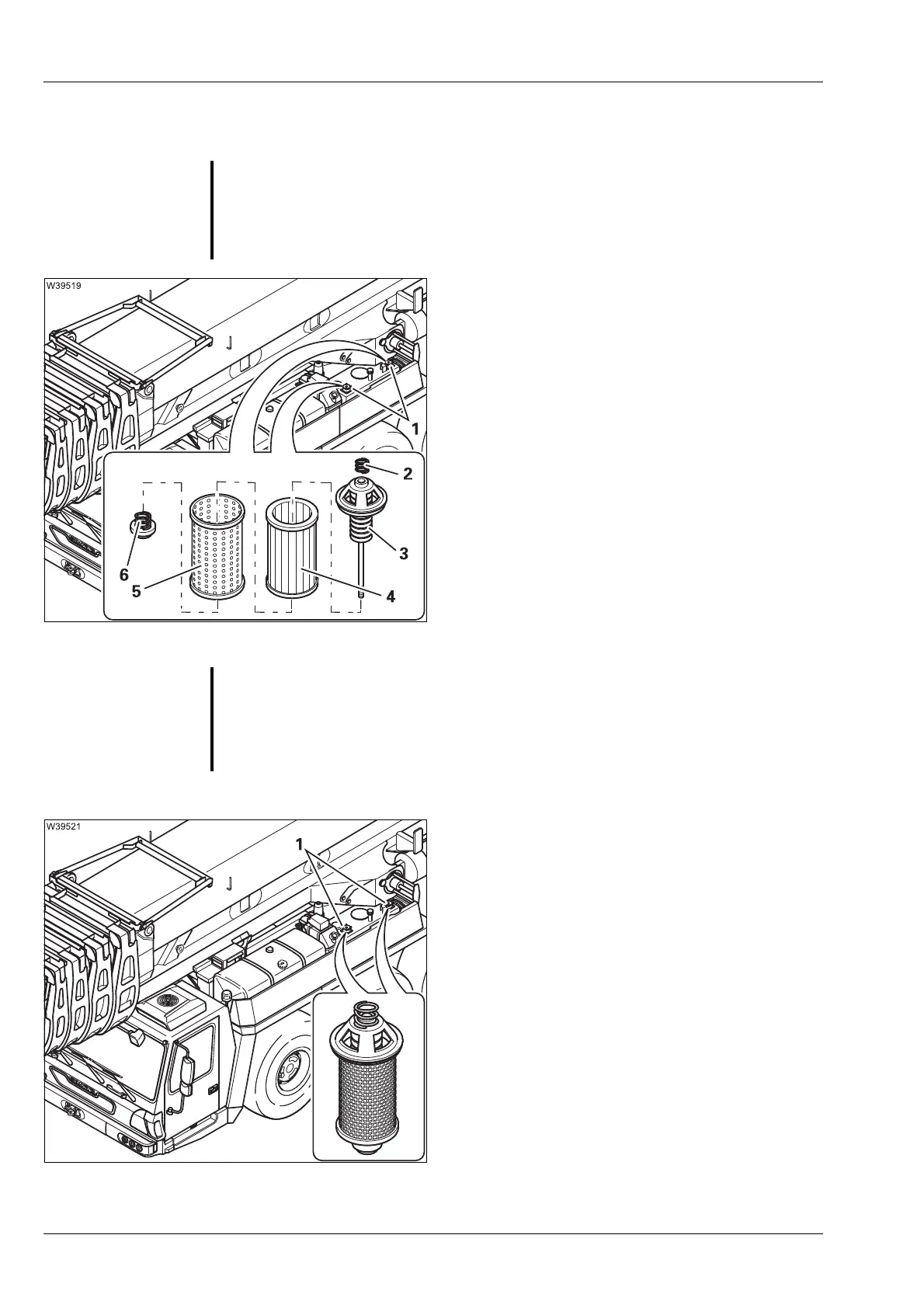

• Release the cap (1) and pull out the filters.
• Place the filters in a receptacle.
• Remove the spring (2).
• Remove the nuts (6).
• Remove the magnetic rod (3) and filter (4)
from the filter cage (5).
• Clean the magnetic rod (3) and filter cage (5).
• Insert a new filter (4) into the filter cage (5).
• Replace any damaged parts, if necessary.
• Assemble the filters and install them.
• Replace the gaskets and fasten the caps (1).
• Start the engine and check for leaks.
O
Risk of damage to the environment from filter residues!
Store used hydraulic oil filter inserts in suitable receptacles and have them
disposed o
f properly by qualified personnel.
S
Risk of damage to the hydraulic system
Large amounts of metal particles are a sign of damage in the hydraulic sys-
tem.
Have the hydraulic system checked by
Manitowoc Crane Care or an author-
ised GROVE dealer or your repair crew.
