Manitowoc GROVE GMK7450 User Manual

Maintenance work on the superstructure
8.9 Pump transfer case
16.08.2018
Maintenance manual 3 302 577 en 8 - 67
GMK7450

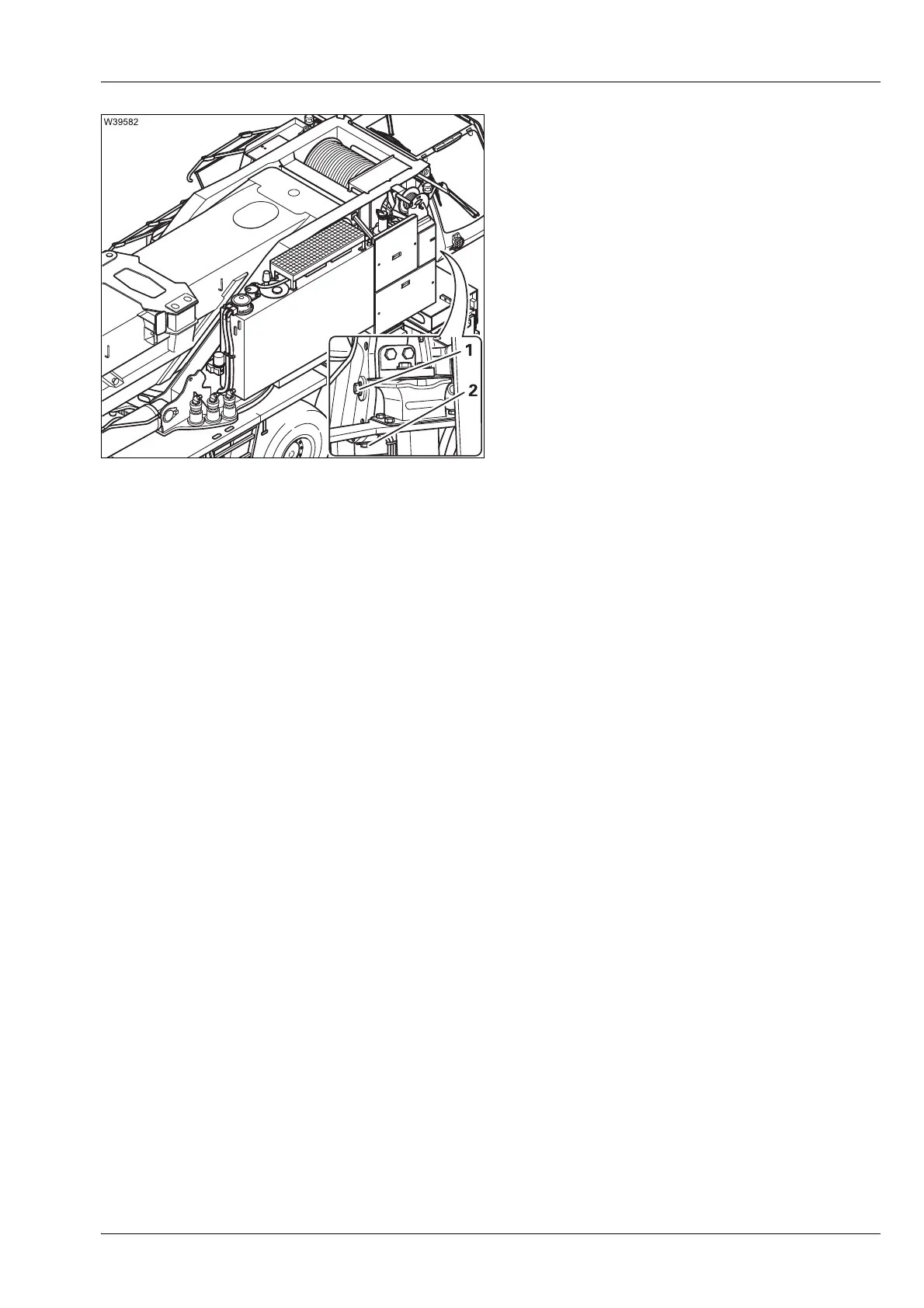

• Place a receptacle under the screw (2).
• Unscrew bolts (1) and (2) and allow the oil to
drain.
• Fit a new gasket and tighten the screw (2).
• Fill the oil up to the lower edge of the open-
ing (1).
• Fit a new gasket and tighten the screw (1).
