Operation
128
IMPORTANT: The top link is fitted with a stop
pin to prevent the link being adjusted out too
far. If the link becomes tight to adjust and is
forced past the stop pin, the threads will be
damaged. Keep the threads clean and make
sure the tube turns easily.
NOTE: To obtain maximum length adjustment
and strength, the thread length on the ends of
the turnbuckle must be equal.
DP96J396

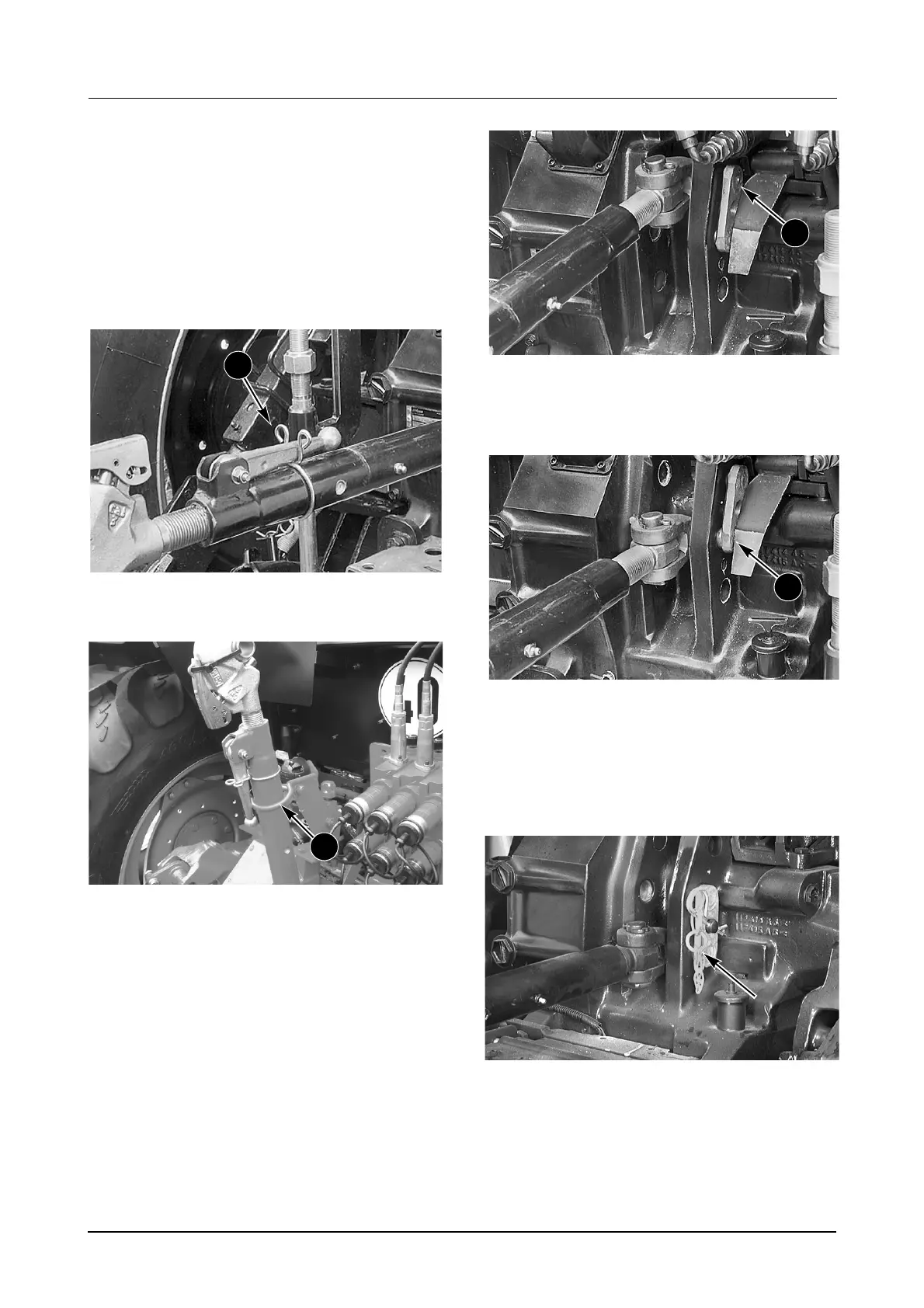

After adjusting the top link, install the adjustment
handle in the retaining clip (1).
MD05M027
When the top link is not being used, store the link
in the retaining clip (2) provided.
To store, or remove the top link push the sprung
loaded lever on the stay mechanism and slide the
top link in or out.
DP96J394
The top link must be installed in the top hole (3)
of the link bracket for 3 point hitch extended mast
operation.
DP98K030
Connect the top link in the center hole (4) of the
link bracket for implements with lower mast
operation, when using power take off operated
equipment, and for normal hitch operations.
North American Tractors ONLY
RD96N024
The top link must be installed in the LOWER hole
of the link bracket when not using power take off
operated equipment.
IMPORTANT: For Rest OF World Tractors the
lower hole is capped. DO NOT install the
top link to the lower hole
1
2
3
4
