Operation
129
5

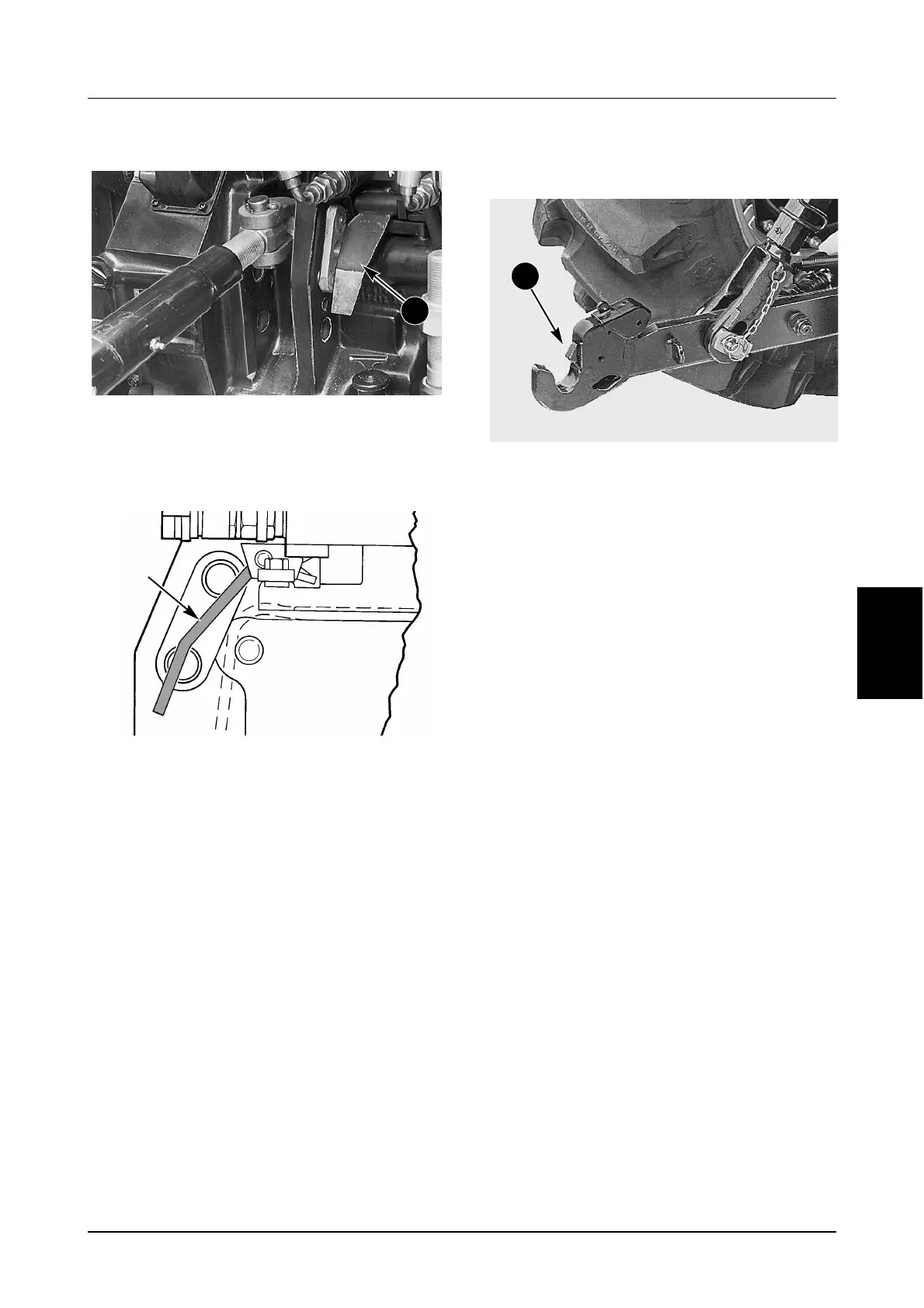

Top Link Pin Retainer (If Equipped)
DP96J394
To operate the retainer, push the lever (1) down
and remove the pin. Hold the lever down and
install the pin in the new position then release the
lever.
DP96J394
The lever must return to the position shown
above.
Claw End Lower Links
(If Equipped)
F01605
Connecting an Implement
Reverse the tractor until the claw ends of the
lower links are aligned under the connecting
points of the implement.
Raise the lower links until the claws engage and
the latches (3) lock.
The spring spacer between the lower links will
give the Cat III width setting.
Disconnecting an Implement
Lower the implement to the ground. Pull the
remote release rope (if equipped) to release the
claw end latches and lower the lower links until
clear of the implement.
Lift the top link off the implement upper
connecting point and store in the bracket
provided.
Move the tractor forward away from the
implement.
1
3
To Next Page
