MI 2893 / MI 2892 / MI 2885 Measurement Setup submenu
117
System frequency
Select system frequency. According to this setting 10 or 12 cycle
interval will be used for calculus (according to IEC 61000-4-30) at
50/60Hz:
 50 Hz – 10 cycle intervals
 60 Hz – 12 cycle intervals
 400 Hz – 50 cycle intervals
 VFD – Variable frequency drive (5 ÷ 120 Hz) – 5 cycle
intervals

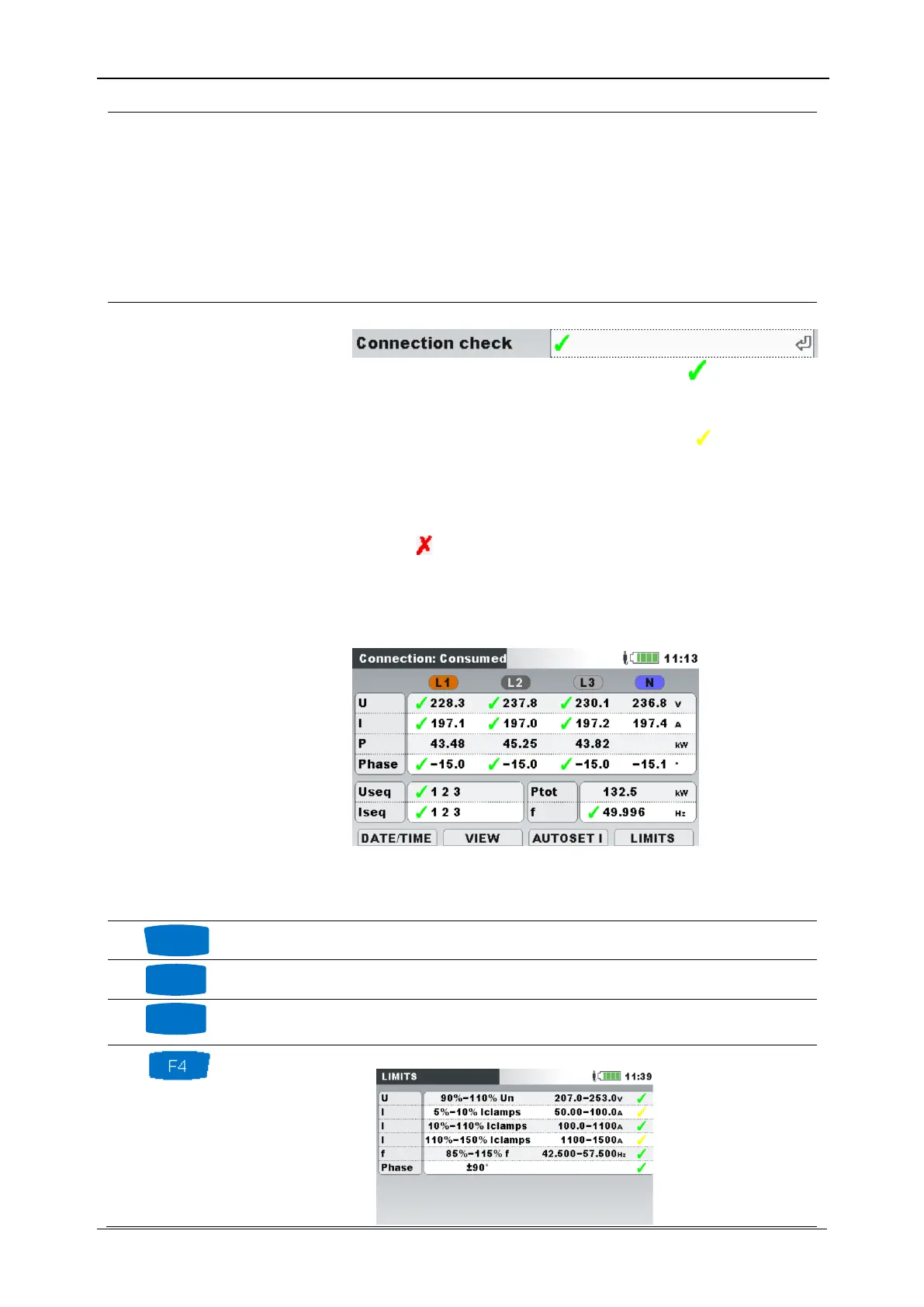

Connection check
Check if measurement results comply with given limits.
Connection check is marked with green OK sign ( ) if instrument
is connected properly and measurement comply with given
measurement setup.
Connection check is marked with yellow OK sign ( ), indicate
that some measurements are at the edge of the measurement
setup specification. This does not mean that something is
necessary wrong, but require user attention to double check
connection and instrument settings. Press F4 to check LIMITS.
Fail sign ( ) indicate that that instrument is connected
incorrectly or measurement setup does not correspond with
measured value. In this case it is necessary to readjust
measurement settings, and check instrument connections.
By pressing ENTER key, detailed Connection check will be shown.
See section 4.2.4 for details, how to use this menu.
DATE/TIME
Set actual Date & Time and Time zone
VIEW
Set Consumed or Generated view
AUTOSET I
Set the auto check procedure for defining the optimal range
of current clamps
LIMITS
Predefined limits for the measurement result evaluation
F1
F2
F3
