TREND
Switches to TREND view (available only during recording).
Selects which waveform to zoom (only in U/I or U+I).
Sets vertical zoom.
Sets horizontal zoom.
Triggers Waveform snapshot.
Returns to the “MEASUREMENTS” submenu.
3.5.3 Trend
While GENERAL RECORDER is active, TREND view is available (see section 3.14 for instructions how to
start recorder).
3.5.4 Voltage and current trends
Current and voltage trends can be observed by cycling function key F4 (METER-SCOPE-TREND).

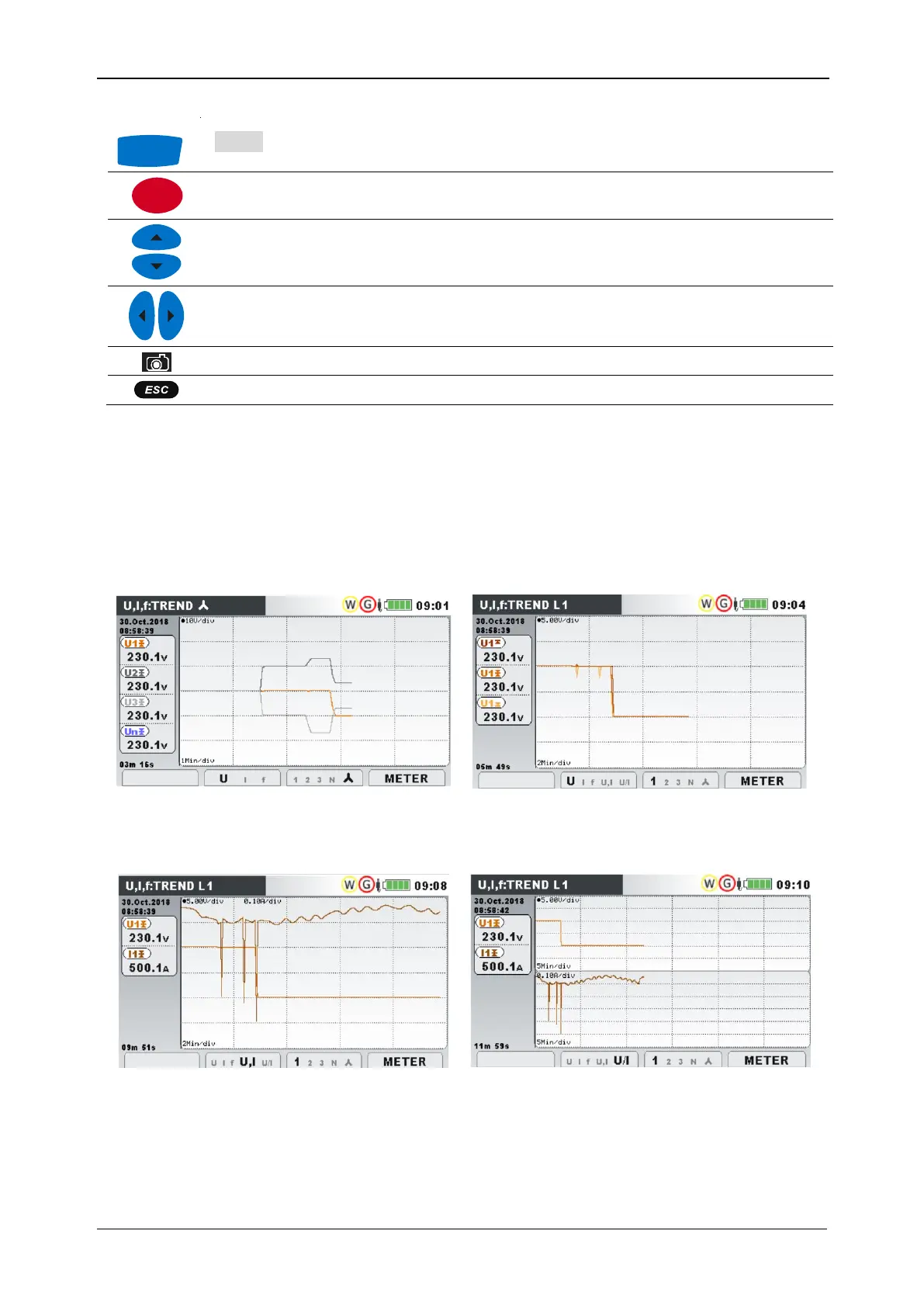

Figure 23: Voltage trend (all voltages)
Figure 24: Voltage trend (single voltage)
Figure 25: Voltage and current trend (single
mode)
Figure 26: Voltage and current trend (dual mode)
F4
ENTER
