HELP
Show triggering help screens (valid for voltage and current) See 5.1.20
for details.
TRIG OFF
Deleting the trigger selection
CHECK C.
Check connection settings. See 3.23.1 for details.
Selects parameter to be changed.
Modifies parameter.
Enter into submenu ( ).
Returns to the submenu.
3.16.3 Capturing transients
After transient recorder is started, instrument waits for trigger occurrence. This can be seen by
observing status bar, where icon is present. If trigger conditions are met, recording will be started.

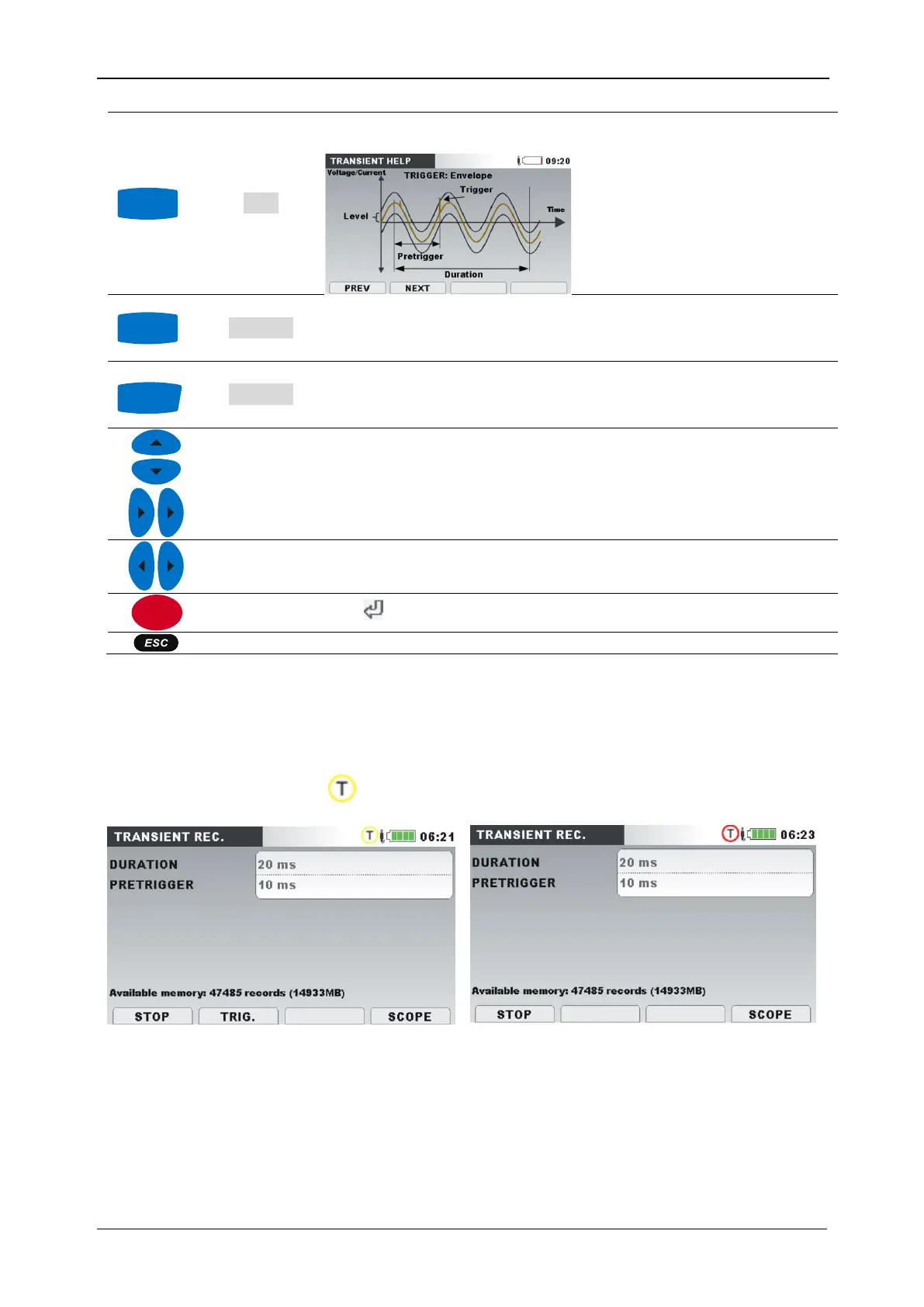

Figure 65: Transient recorder capture screen (waiting phase/recording) – MI 2893
F2
F3
F4
ENTER
