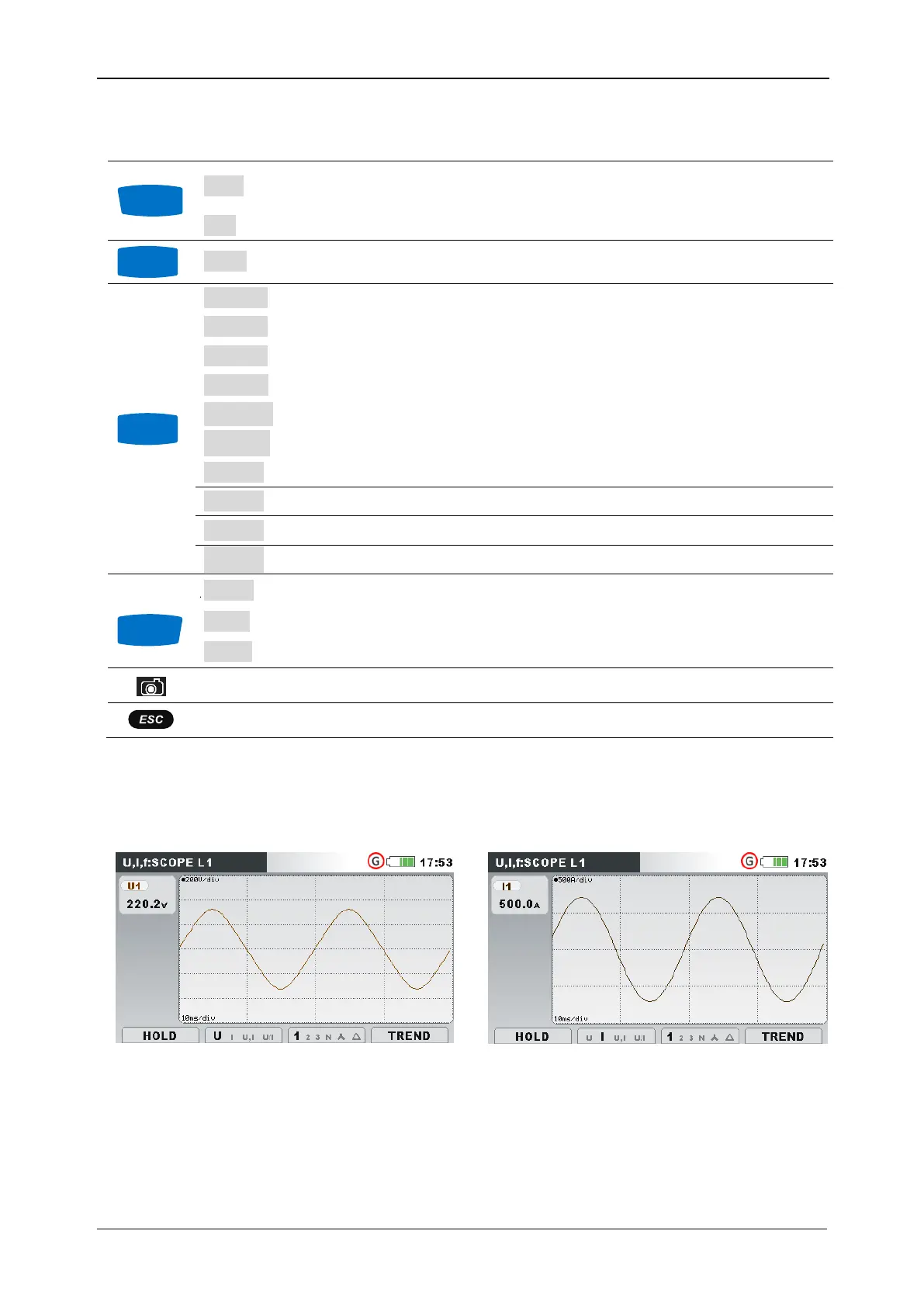

MI 2893 / MI 2892 / MI 2885 U, I, f
39
Table 8: Keys in Meter screens
HOLD
Holds measurement on display. Hold clock time will be displayed in the
right top corner.
RUN
Runs held measurement.
RESET
Resets MAX and MIN values (U
Rms(1/2)
and
I
Rms(1/2)
).
1 2 3 N Δ
Shows measurements for phase L1.
1 2 3 N Δ
Shows measurements for phase L2.
1 2 3 N Δ
Shows measurements for phase L3.
1 2 3 N Δ
Shows measurements for neutral channel.
1 2 3 N Δ
Shows measurements for all phases.
1 2 3 N Δ
Shows measurements for all phase-to-phase voltages.
12 23 31 Δ
Shows measurements for phase-to-phase voltage L12.
12 23 31 Δ
Shows measurements for phase-to-phase voltage L23.
12 23 31 Δ
Shows measurements for phase-to-phase voltage L31.
12 23 31 Δ
Shows measurements for all phase-to-phase voltages.
METER
Switches to METER view.
SCOPE
Switches to SCOPE view.
TREND
Switches to TREND view (available only during recording).
Triggers Waveform snapshot.
Returns to the “MEASUREMENTS submenu.
3.5.2 Scope
Various combinations of voltage and current waveforms can be displayed on the instrument, as shown
below.
Figure 19: Voltage only waveform
Figure 20: Current only waveform
F1
F2
F3
F4
