METREL MI 2893 User Manual

MI 2893 / MI 2892 / MI 2885 Phase Diagram
64
Selects between the following options:
Pst Plt Pstmin
Shows 10 min short term flicker P
st
.
Pst Plt Pstmin
Shows long term flicker P
lt
.
Pst Plt Pstmin
Shows 1 min short term flicker P
st1min
.
Selects between trending various parameters:
1 2 3 
Shows selected flicker trends for phase L1.
1 2 3 
Shows selected flicker trends for phase L2.
1 2 3 
Shows selected flicker trends for phase L3.
1 2 3 
Shows selected flicker trends for all phases (average only).
12 23 31 Δ
Shows selected flicker trends for phases L12.
12 23 31 Δ
Shows selected flicker trends for phases L23.
12 23 31 Δ
Shows selected flicker trends for phases L31.
12 23 31 Δ
Shows selected flicker trends for all phases (average only).
METER
Switches to METER view.
TREND
Switches to TREND view (available only during recording).
Moves cursor and selects time interval (IP) for observation.
Returns to the “MEASUREMENTS” submenu.
3.10 Phase Diagram
Phase diagram graphically represent fundamental voltages, currents and phase angles of the network.
This view is strongly recommended for checking instrument connection before measurement. Note that
most measurement issues arise from wrongly connected instrument (see 4.1 for recommended
measuring practice). On phase diagram screens instrument shows:
 Graphical presentation of voltage and current phase vectors of the measured system,
 Unbalance of the measured system.
3.10.1 Phase diagram

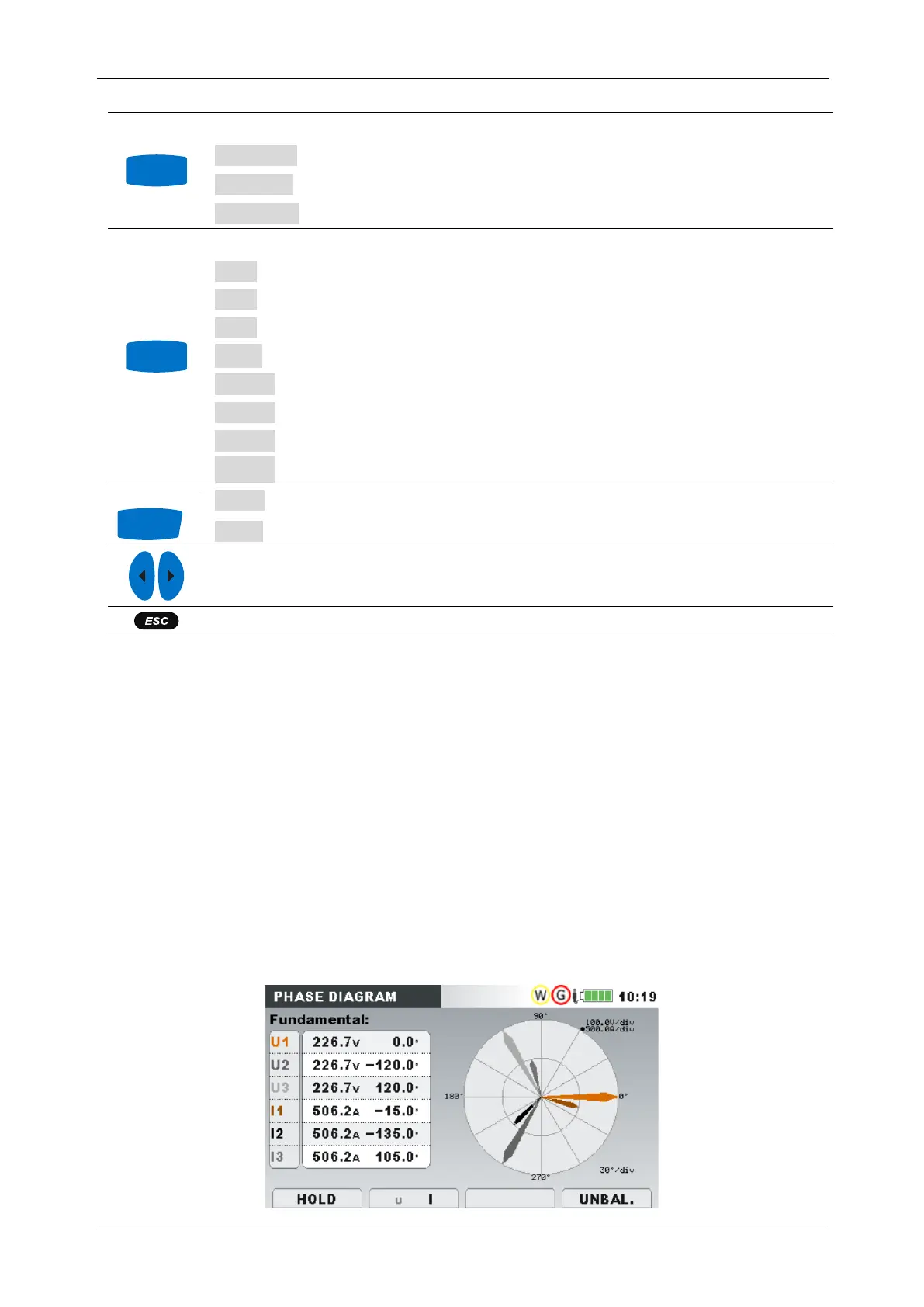

By entering PHASE DIAGRAM option from MEASUREMENTS submenu, the following screen is shown (see
figure below).
F2
F3
F4
