MI 2893 / MI 2892 / MI 2885 Waveform/Inrush recorder
78
Figure 57: Triggering in waveform record
3.15.1 Setup
Waveform recorder setup menu is available from:
MAIN MENU MEASUREMENT SETUP WAVE.REC.SETUP
or
MAIN MENU RECORDERS WAVEFORM REC F3 (SETUP)

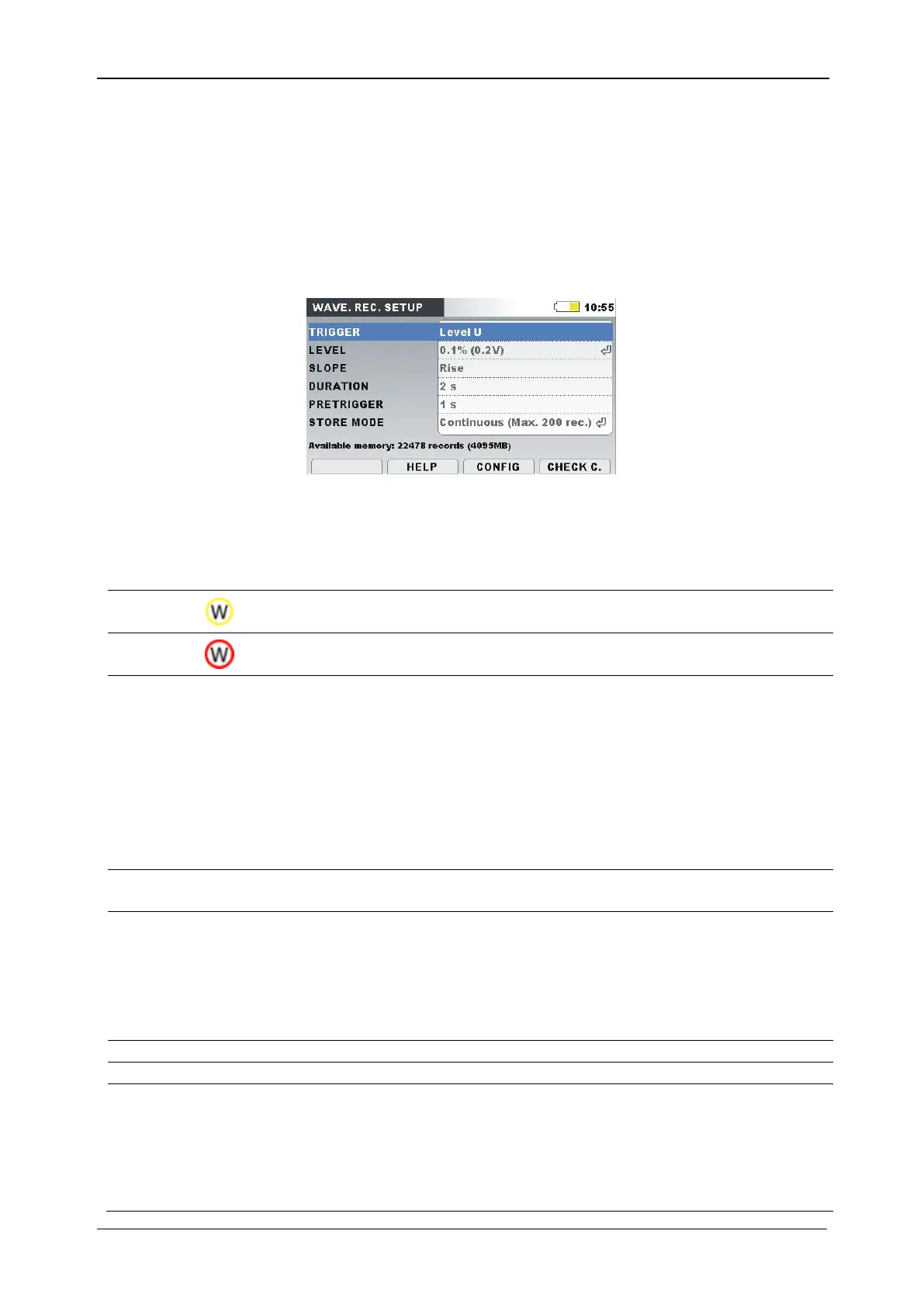

Figure 58: Waveform recorder setup screen
Table 57: Waveform recorder settings description and screen symbols
Waveform recorder is active, waiting for trigger (presented only in
case, when Waveform recorder is started)
Waveform recorder is active, recording in progress (presented only in
case, when Waveform recorder is started)
Trigger
Trigger source set up:
Events triggered by voltage event (see 3.23.2);
Alarms triggered by alarm activation (see 3.23.3);
Events & Alarms triggered by alarm or event;
Level U triggered by voltage level;
Level I triggered by current level (inrush).
Interval periodical trigger for given time period (each 10
minutes for example). Interval between two-time triggered
waveforms in Interval trigger type
Level*
Voltage or current level in % of nominal voltage or current and in (V
or A), which will trigger recording
Slope*
Rise triggering will occur only if voltage or current rise
above given level
Fall - triggering will occur only if voltage or current fall below
given level
Any triggering will occur if voltage or current rise above or
fall below given level
Duration
Record length.
Pretrigger
Recorded interval before triggering occurs.
Store mode
Store mode setup:
Single waveform recording ends after first trigger;
Continuous (Max. 1500 record) consecutive waveform
recording until user stops the measurement or instrument
runs out of storage memory. Every consecutive waveform
recording will be treated as a separate record. By default, 200
