METREL MI 2893 User Manual

MI 2893 / MI 2892 / MI 2885 Energy
51

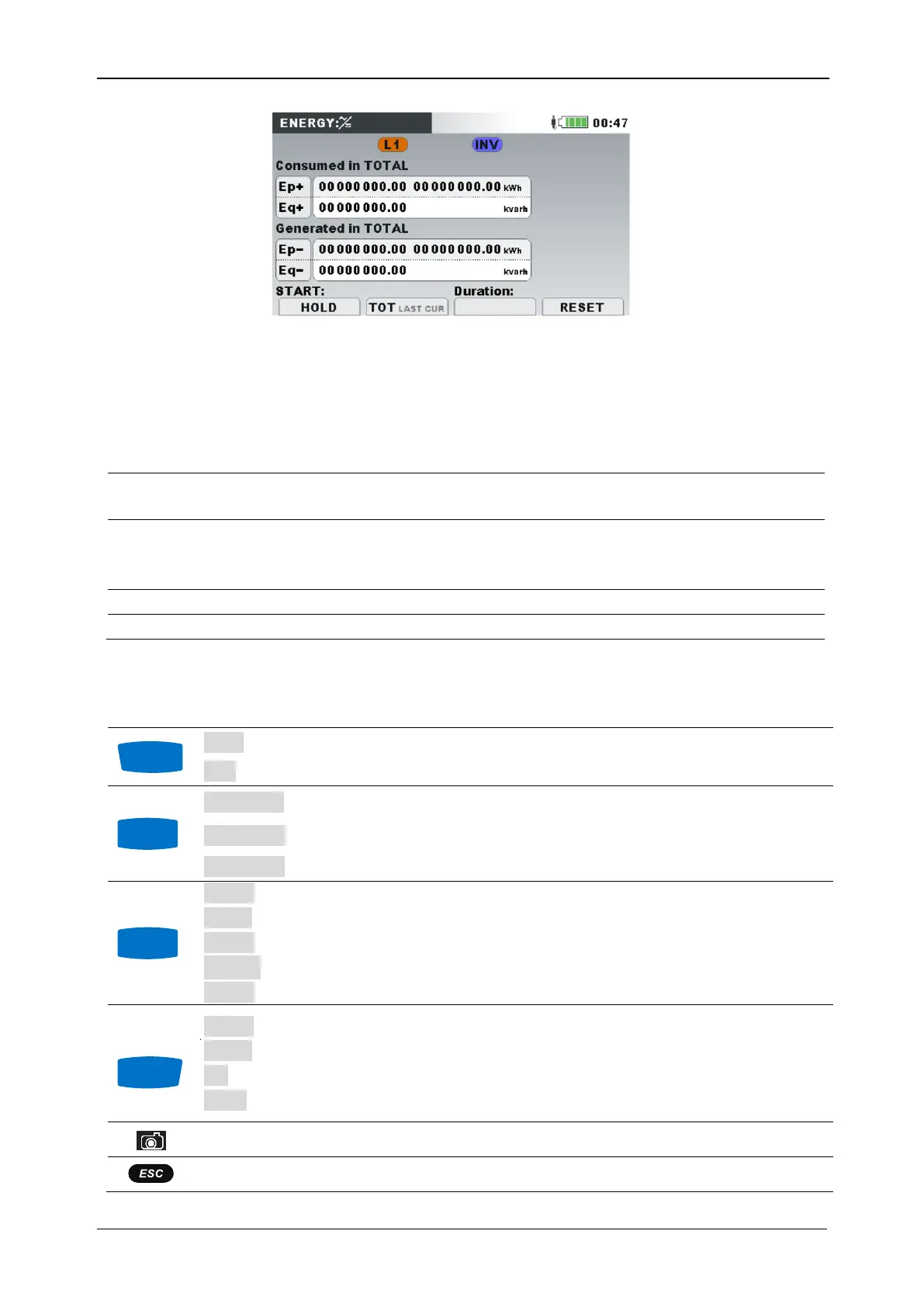

Figure 36: Energy counters screen (General Recorder is not running)
Table 17: Instrument screen symbols and abbreviations
Ep+
Ep-
Consumed (+) phase (Ep
1
+
, Ep
2
+
, Ep
3
+
) or total (Ep
tot
+
) active energy
Generated (-) phase (Ep
1
-
, Ep
2
-
, Ep
3
-
) or total (Ep
tot
-
) active energy
Eq+
Eq-
Consumed (+) phase (Eq
1
+
, Eq
2
+
, Eq
3
+
) or total (Eq
tot
+
) fundamental reactive energy
Generated (-) phase (Eq
1
-
, Eq
2
-
, Eq
3
-
) or total (Eq
tot
-
) fundamental reactive energy
Start
Recorder start time and date
Duration
Recorder elapsed time
Table 18: Keys in Energy (METER) screens
HOLD
Holds measurement on display.
RUN
Runs held measurement.
TOT LAST CUR
Shows energy registers for whole record.
TOT LAST CUR
Shows energy registers for last interval.
TOT LAST CUR
Shows energy registers for current interval.
1 2 3  T
Shows energy parameters for phase L1.
1 2 3 T
Shows energy parameters for phase L2.
1 2 3  T
Shows energy parameters for phase L3.
1 2 3  T
Shows all phases energy.
1 2 3  T
Shows energy parameters for Totals.
METER
TREND
EFF
RESET
Switches to METER view.
Switches to TREND view.
Switches to EFFICIENCY view.
Reset energy counters
Triggers Waveform snapshot.
Returns to the “MEASUREMENTS” submenu.
F1
F2
F3
F4
