MI 2893 / MI 2892 / MI 2885 Energy
50
1 2 3  T
Shows power parameters for phases L1, L2 and L3 on the same
graph.
1 2 3  T
Shows Total power parameters.
METER
Switches to METER view.
TREND
Switches to TREND view (available only during recording).
Moves cursor and selects time interval (IP) for observation.
Returns to the “MEASUREMENTS” submenu.
3.7 Energy
3.7.1 Meter
Instrument shows status of energy counters in energy menu. Results can be seen in a tabular (METER)
form. The meter screens are shown on figures below.

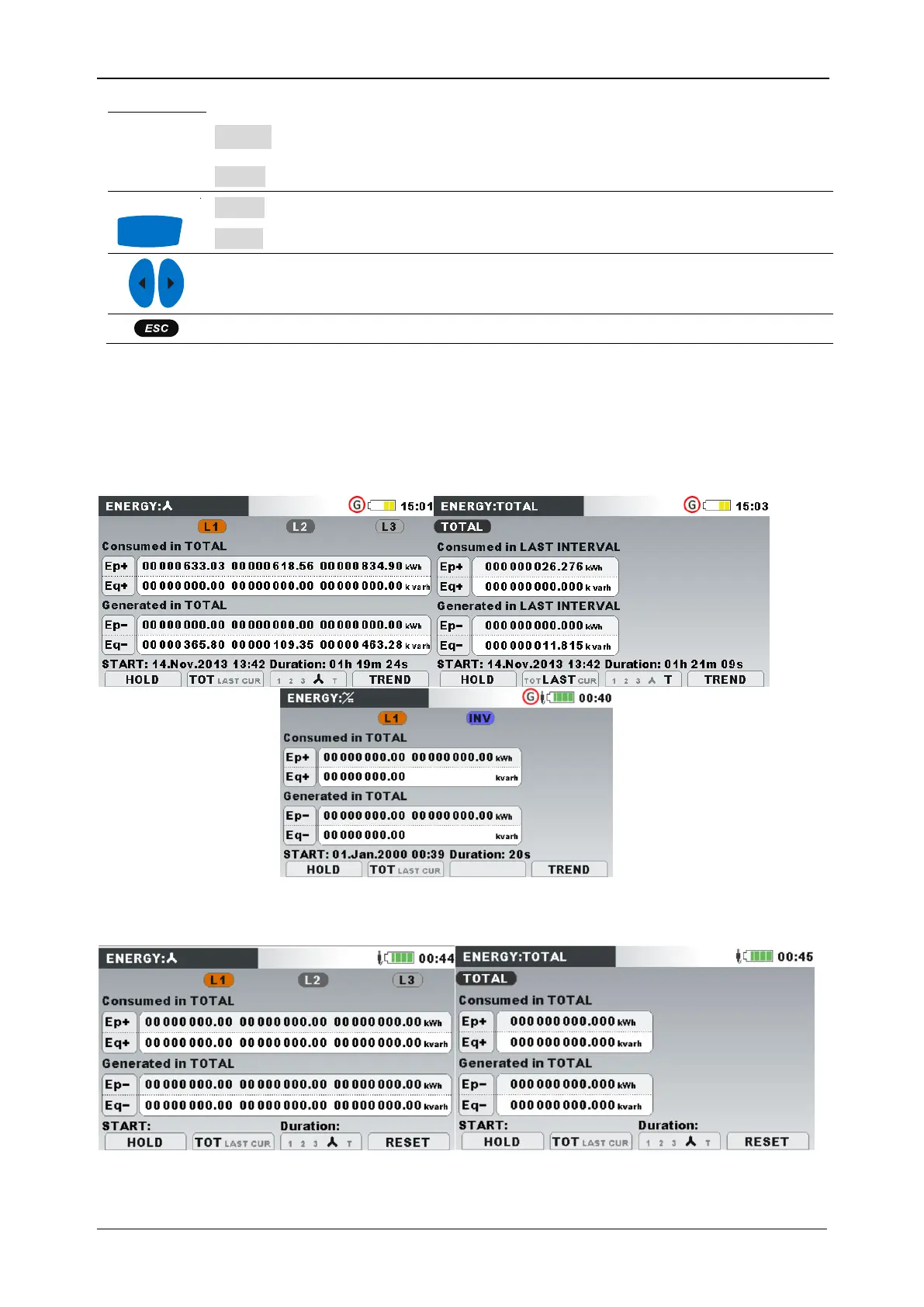

Figure 35: Energy counters screen (General Recorder is running)
F4
