MI 2893 / MI 2892 / MI 2885 Instrument memory (microSD card)
34
Switch On/off the instrument.
Note: instrument will not power off if any recorder is active.
Note: Hold key for 5 seconds in order to reset instrument, in case of failure.
Cursor, Enter and Escape keys are used for moving through instrument menu structure, entering various
parameters. Additionally, cursor keys are used for zooming graphs and moving graph cursors.
3.3 Instrument memory (microSD card)
MI 2893/MI 2892/MI 2885 use microSD card for storing records. Prior instrument use, microSD card
should be formatted to a single partition FAT32 file system and inserted into the instrument, as shown
on figure below.

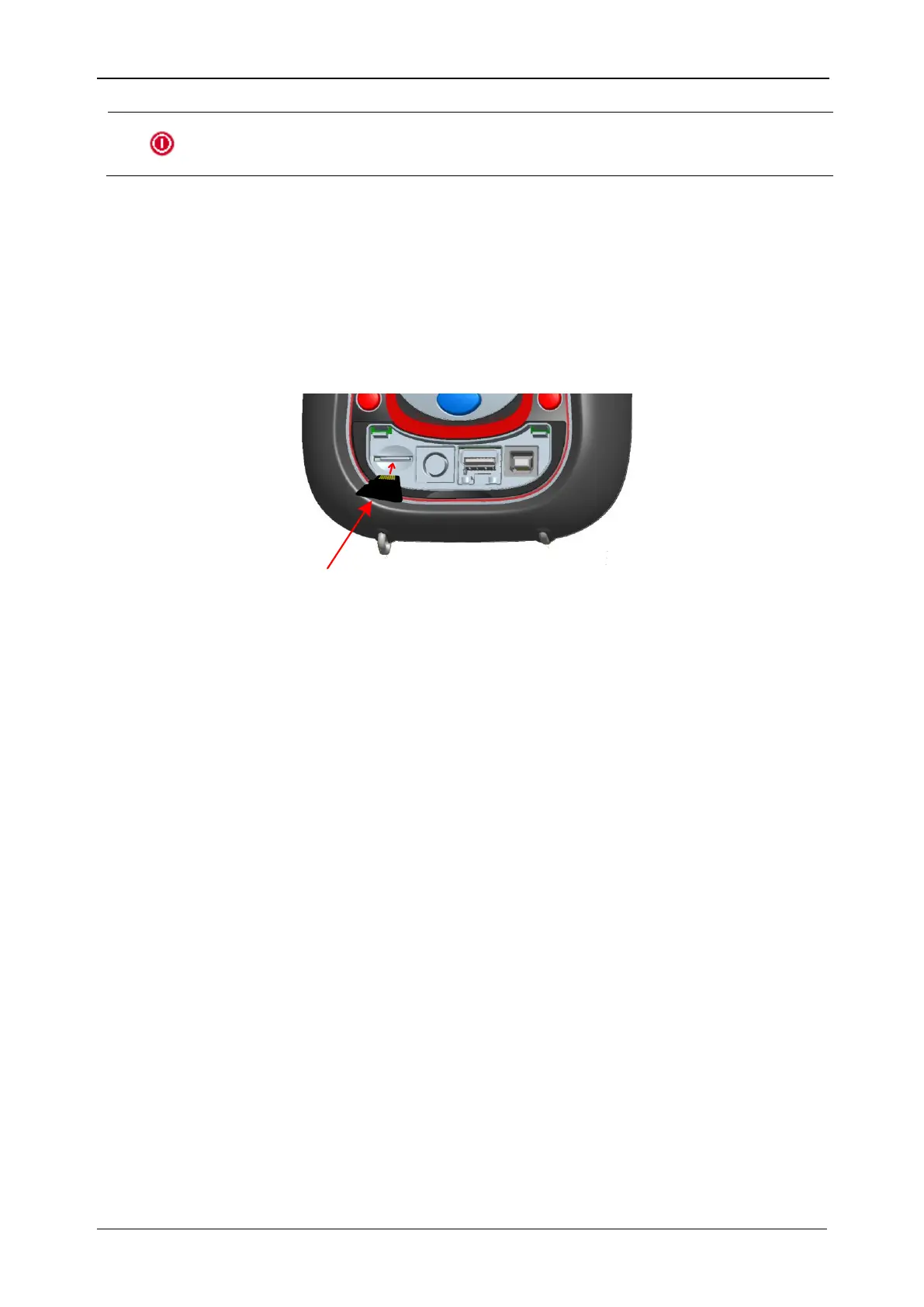

Figure 10: Inserting microSD card
1. Open instrument cover
2. Insert microSD card into a slot on the instrument (card should be putted upside down,
as shown on figure)
3. Close instrument cover
Note: Do not turn off the instrument while microSD card is accessed:
- during record session
- observing recorded data in MEMORY LIST menu
Doing so may cause data corruption, and permanent data lost.
Note: SD Card should have single FAT32 partition. Do not use SD cards with multiple partitions.
3.4 Instrument Main Menu
After powering on the instrument, the “MAIN MENU” is displayed. From this menu all instrument
functions can be selected.
