MI 2893 / MI 2892 / MI 2885 Firmware upgrade
237
7.3.2 Upgrade procedure
1. Connect PC and instrument with USB cable
2. Establish USB communication between them. In PowerView, go to ToolsOptions menu and set
USB connection as shown on figure below.

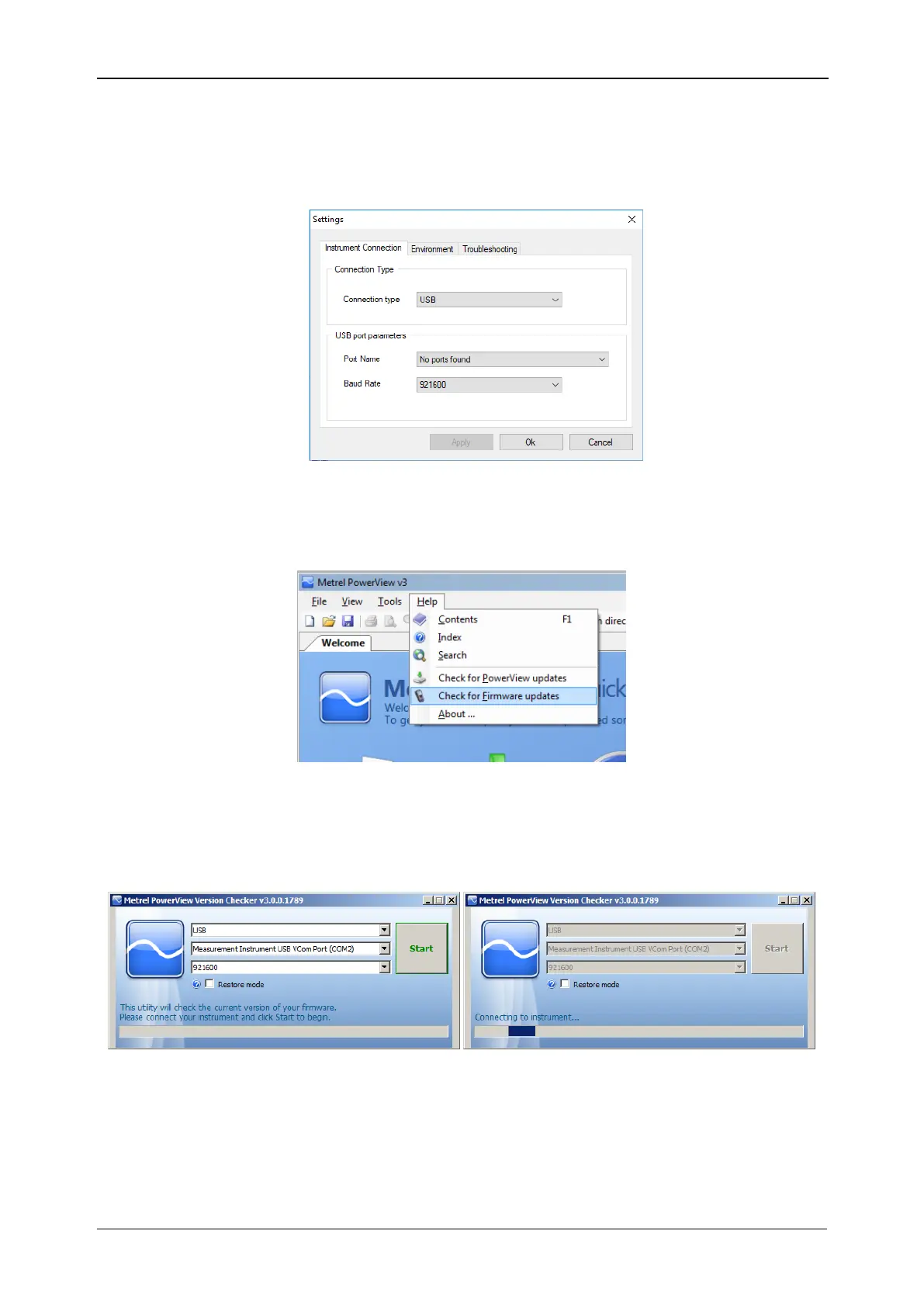

Figure 183: Selecting USB communication
3. Click on Help Check for Firmware updates.
Figure 184: Check for Firmware menu
4. Version checker window will appear on the screen. Click on Start button.
Figure 185: Check for Firmware menu
5. If your instrument has older FW, PowerView will notify you that new version of FW is available.
Click on Yes to proceed.
