METREL MI 2893 User Manual

MI 2893 / MI 2892 / MI 2885 Description
28
2 Description
2.1 Front panel

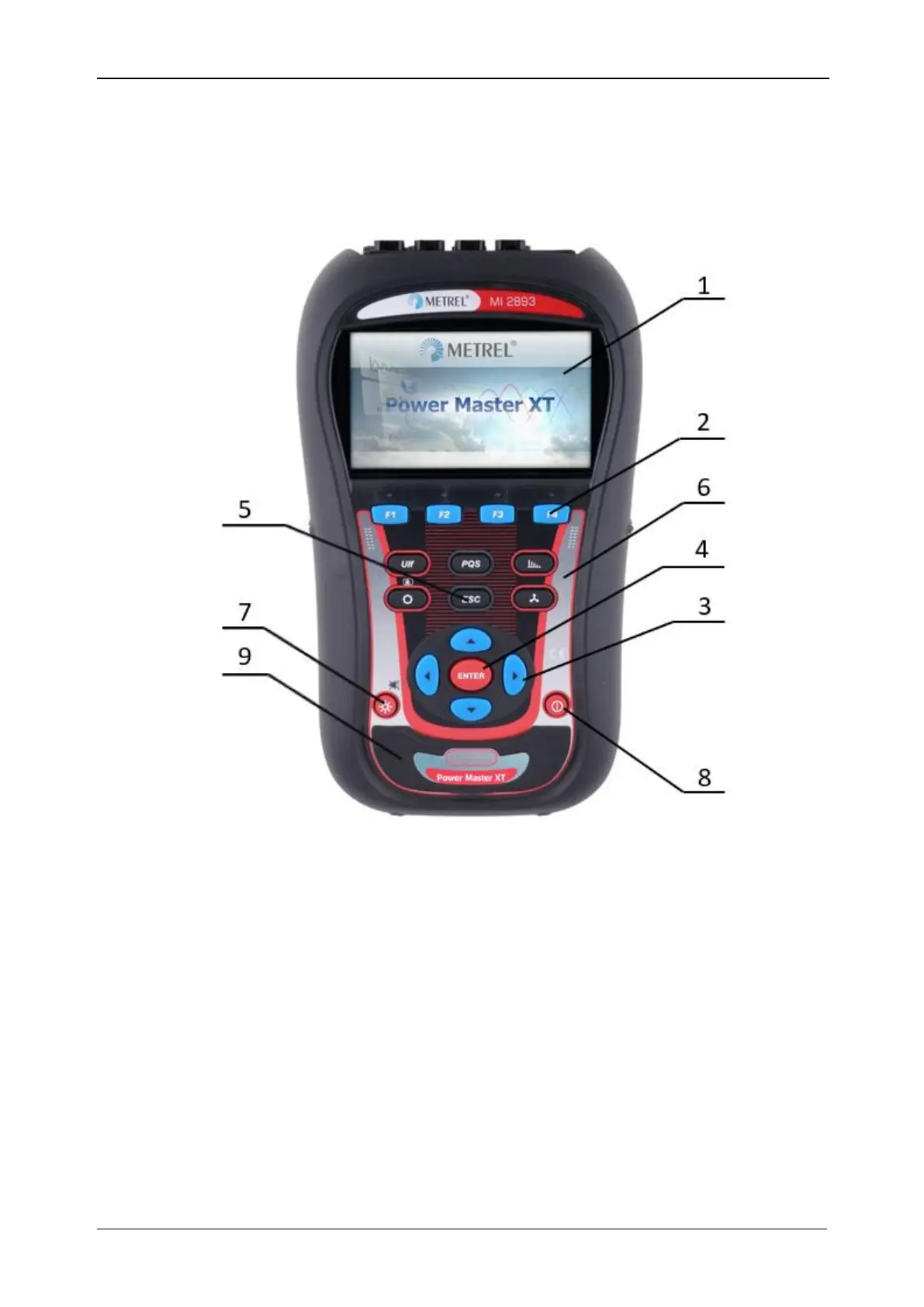

Figure 3: Front panel
Front panel layout:
1. LCD
Colour TFT display, 4.3-inch, 480 x 272 pixels.
2. F1 – F4
Function keys.
3. ARROW keys
Moves cursor and select parameters.
4. ENTER key
Step into submenu.
5. ESC key
Exits any procedure, confirms new settings.
6. SHORTCUT keys
Quick access to main instrument functions.
7. LIGHT key
(BEEP OFF)
Adjust LCD backlight intensity: high/low//off
If the LIGHT key is pressed for more than 1.5 seconds, beeper will be
disabled. Press & hold again to enable it.
8. ON-OFF key
Turns on/off the instrument.
9. COVER
Communication ports and microSD card slot protection.
