3.22.2 Waveform snapshot
This type of record can be made by using key (press and hold key). Snapshot is performed
only on the measurement screens.

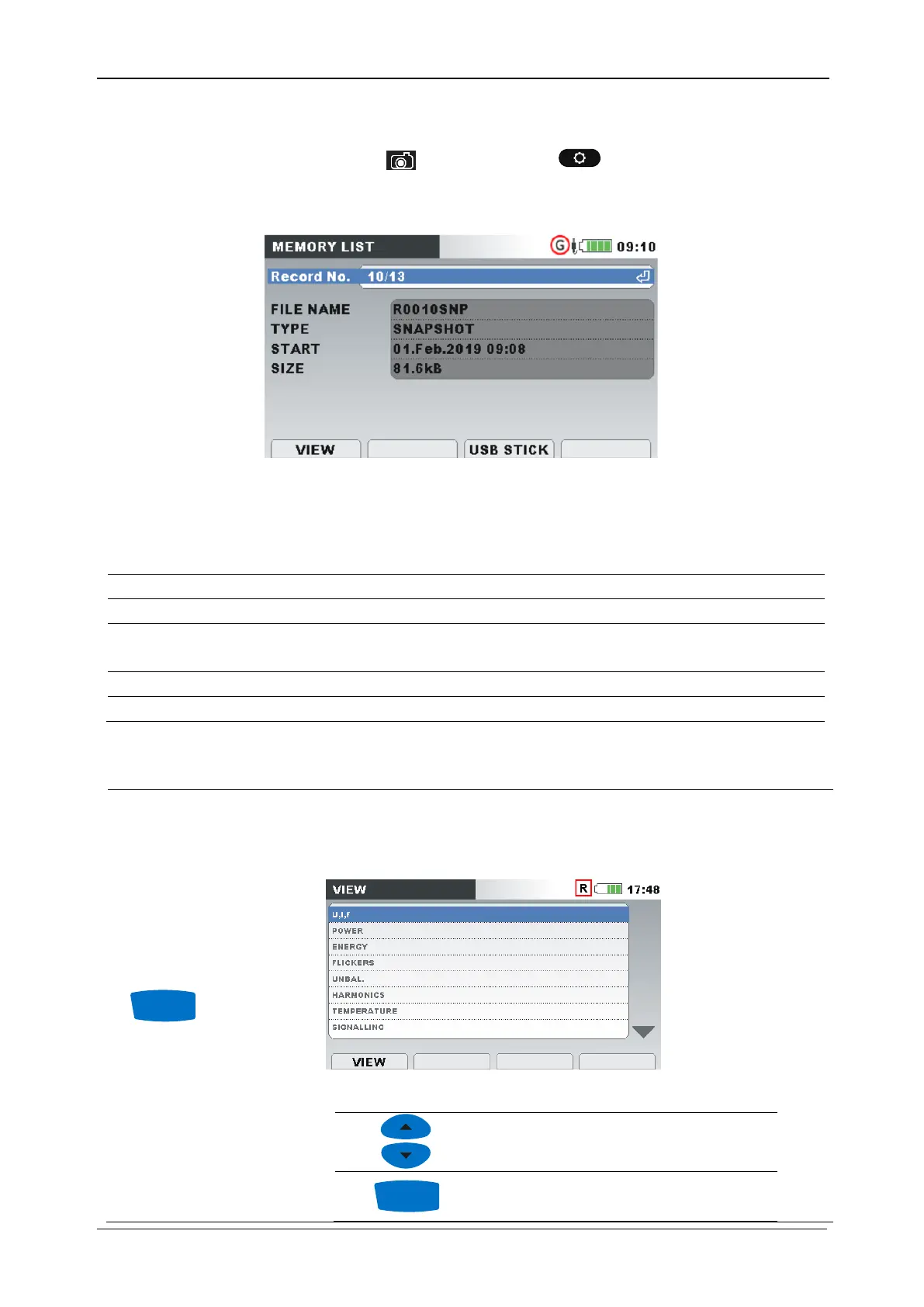

Figure 83: Front page of Snapshot in MEMORY LIST menu
Table 92: Recorder settings description
Record No.
Selected record number, for which details are shown.
FILE NAME
Record name on SD Card
Type
Indicate type of record:
 Snapshot.
Start
Record start time.
Size
Record size in kilobytes (kB).
Table 93: Keys in Snapshot record front page screen
VIEW
Switches to CHANNELS SETUP menu screen.
Particular signal group can be observed by pressing on F1 key (VIEW).
Keys in CHANNELS SETUP menu screen:
Selects particular signal group.
Enters particular signal group
(METER or SCOPE view).
F1
F1
