MICROPLEX Operator’s Manual SOLID F90 HD Edition 1.0
5.23. Image Shifting to the X-Direction
This function shifts the print image in relation to the paper to the
X-direction (crosswise the print direction). Because the paper feed
is always centered to the middle in the SOLID F90 HD, the image
shifting might be necessary when using e.g. special paper
formats to shift the X-coordinate zero to the left paper edge.
ON LINE
SAVE
SAVE
SAVE
MENU
SAVE
ON LINE

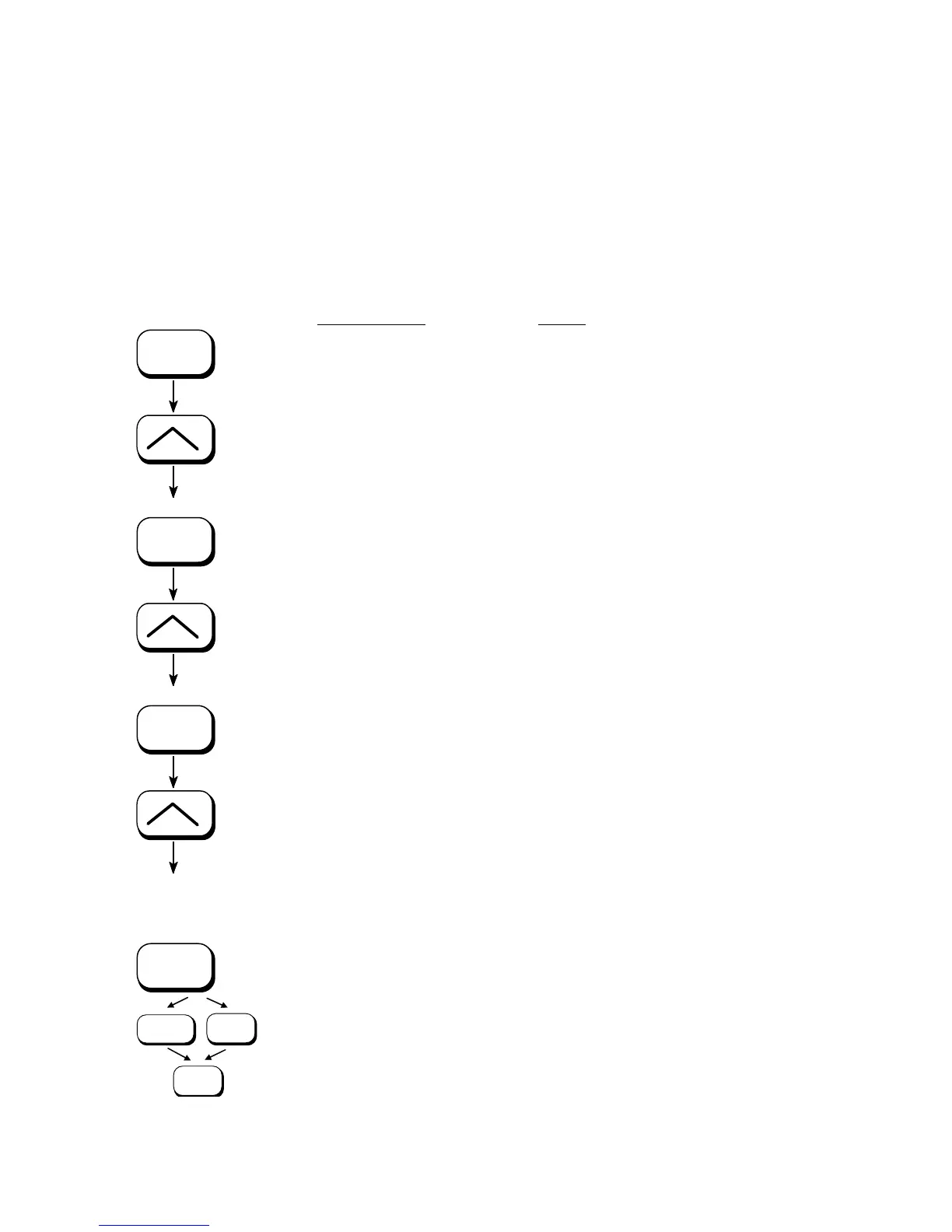

Panel display
[SOLID F90 HD ]
[Menu Level 1
]
( ( (
[Engine
]
[Resolution
]
( ( (
[Image X-Pos.
]
[Image X-Pos.
xxx ]
( ( (
[Image X-Pos. 160
]
[Save as Setup? ]
Notes
Turn the printer OFF LINE with this key.
Press one of the ARROW keys until
[Engine ] is displ
ayed.
Press one of the ARROW keys until
[Image X-Pos.] is displ
ayed.
The panel function Image Shifting to the
X-Direction is selected.
xxx = currently set value.
(Default value =128).
Operating one of the ARROW ke
ys the
value for the image shift can be altered.
Values from 0 up to 254 are settable,
so a max. image shifting of appr. ±1 ¼
Inch (approx. ±32 mm) can be reached.
Now the new image X-Position is saved
In addition this new value can be saved
as setup value (using the SAVE
key),
before the printer is turned ON LINE
again.
