MICROPLEX Operator’s Manual SOLID F90 HD Edition 1.0
5.24. Image Shifting to the Y-Direction
This function shifts the print image in relation to the paper to the
Y-direction (print direction).
ON LINE
SAVE
SAVE
SAVE
MENU
SAVE
ON LINE
Panel display
[SOLID F90
HD ]
[Menu Level 1 ]
( ( (
[Engine ]
[Resolution ]
( ( (
[Image Y-Pos. ]
[Image Y-Pos. yyy ]
( ( (
[Image Y-Pos. 190 ]
[Save as Setup? ]
Notes

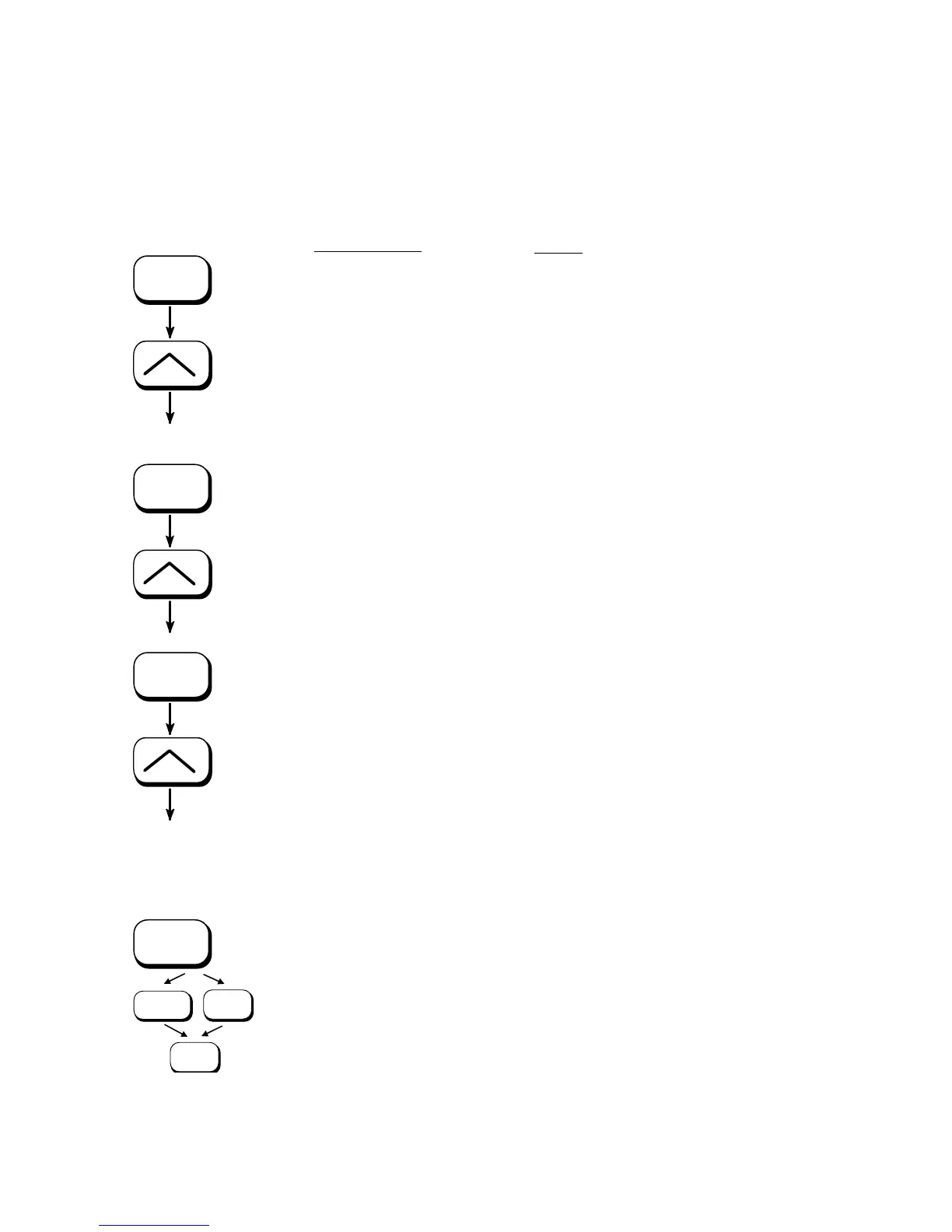

Turn the printer OFF LINE with this
key.
Press one of the ARROW keys until
[Engine ] is displayed.
Press one of the ARROW keys until
[Image Y-Pos.] is displ
ayed.
The panel function Image Shifting to
the Y-Direction is selected.
yyy = currently set value.
(Default value = 128).
Operating t
he ARROW keys the
image can be shifted relative to the
paper. Values from 0 up to 254 are
settable, so a max. image shifting of
approx. ± 1 ¼ Inch (approx. ± 32
mm) can be reached.
Now the new image Y-Position is
saved.
In addition this new value can be
saved as setup value (
using the SAVE
key), before the printer is turned ON
LINE again.
