7.1.3. Transfer-/Separator Charger Cleaning
Turn off the printer and pull the power plug before start working at the
chargers.

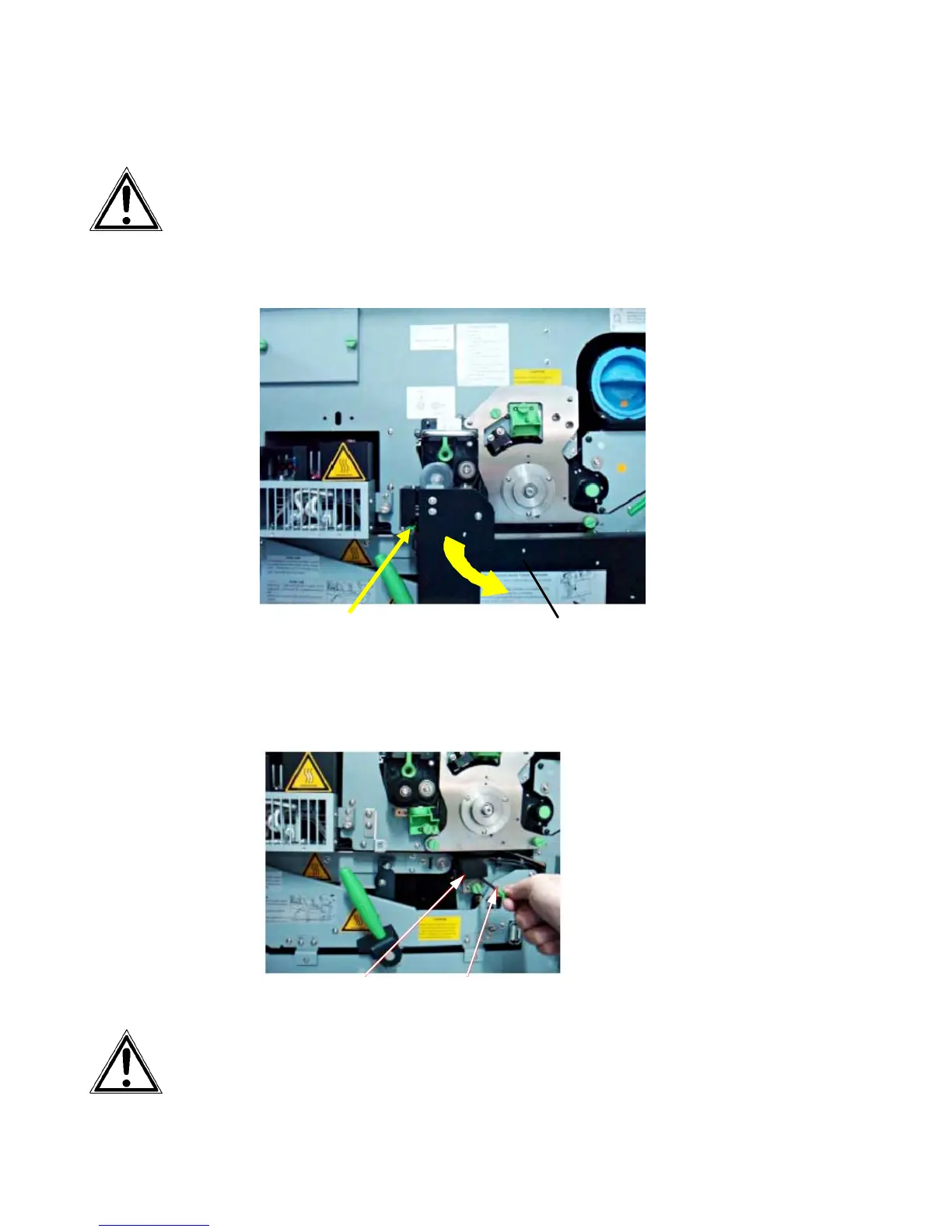

1. Open the front cover of the printer.
2. Press down the open lever
to open the waste toner recovery unit.
Waste toner recovery unit
Open lever (green)
3. Pull out the cleaning rod horizontally and then insert it back
several times for cleaning
the wire of this charger.
Transfer-/Separator charger Cleaning rod
Before performing the next step make sure the transfer-/separator
charger is in its "down" position to avoid damaging the photoreceptor
drum.
